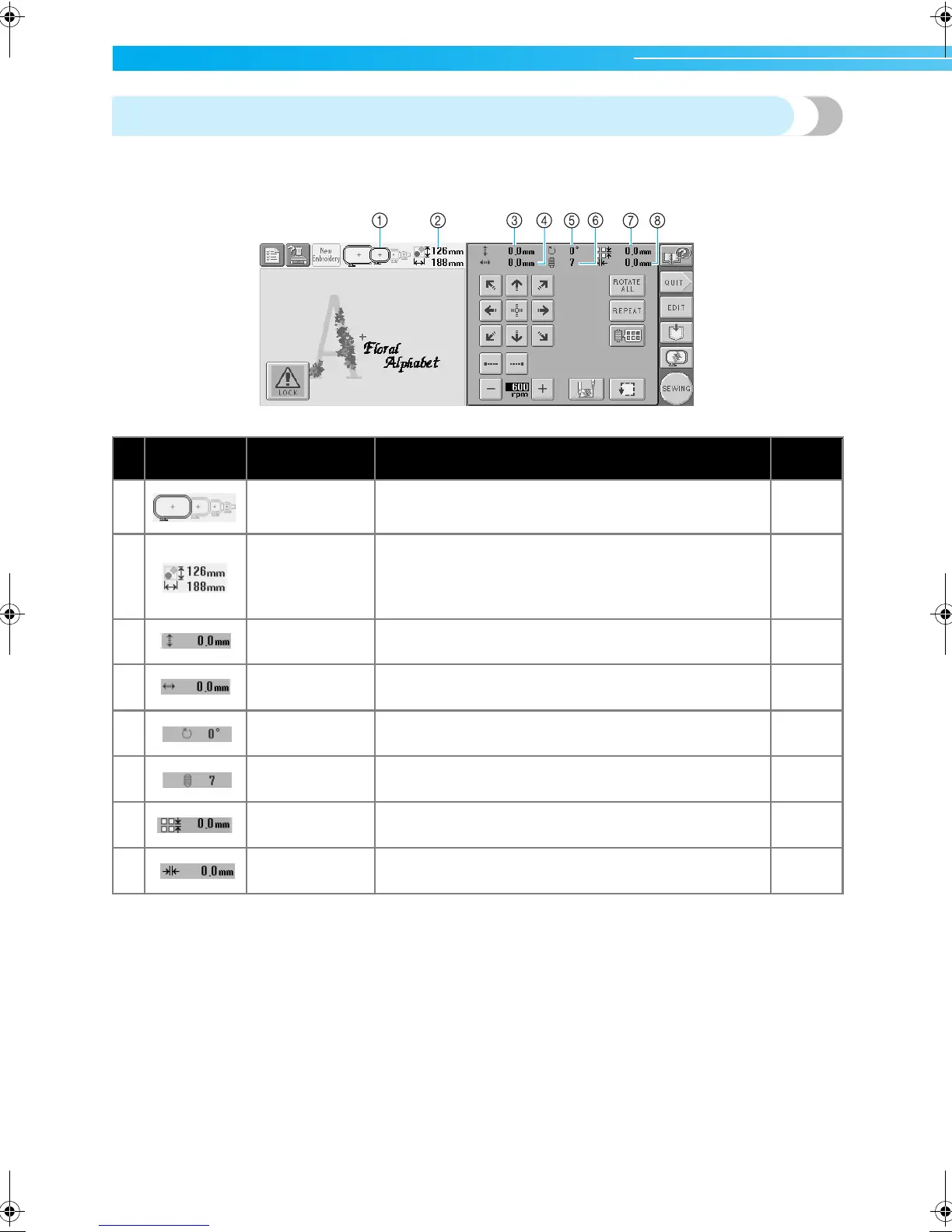

Understanding the embroidering settings screen
From this screen, the entire pattern can be edited and embroidering settings can be specified. In addition, the
embroidering position can be checked and a pattern can be saved for later use.
No. Display Key Name Description
Reference
Page
1
Embroidery frame
indicators
Shows the sizes of embroidery frames that can be used to
sew the embroidery pattern currently displayed in the
pattern display area.
p.28
2 Pattern size
Shows the size of the embroidery pattern currently displayed in
the pattern display area. The top value shows the height and the
bottom value shows the width. If the embroidery pattern consists
of multiple patterns that have been combined, the size of the
entire pattern, including all patterns, is shown.
3
Distance from
center (vertical)
Shows the vertical distance that the pattern being edited is
moved.
p. 72
4
Distance from
center (horizontal)
Shows the horizontal distance that the pattern being edited
is moved.
p.72
5 Rotation angle
Shows the rotation angle that the pattern being edited is
rotated.
p.73, 129
6
Number of thread
color changes
Shows the total number of thread color changes for the
pattern that is being edited.
7
Repeat spacing
(vertical)
Shows the vertical distance between patterns when repeat
sewing is selected.
p.130
8
Repeat spacing
(horizontal)
Shows the horizontal distance between patterns when
repeat sewing is selected.
p. 130
