Using the Optional Bobbin Winder 189
7

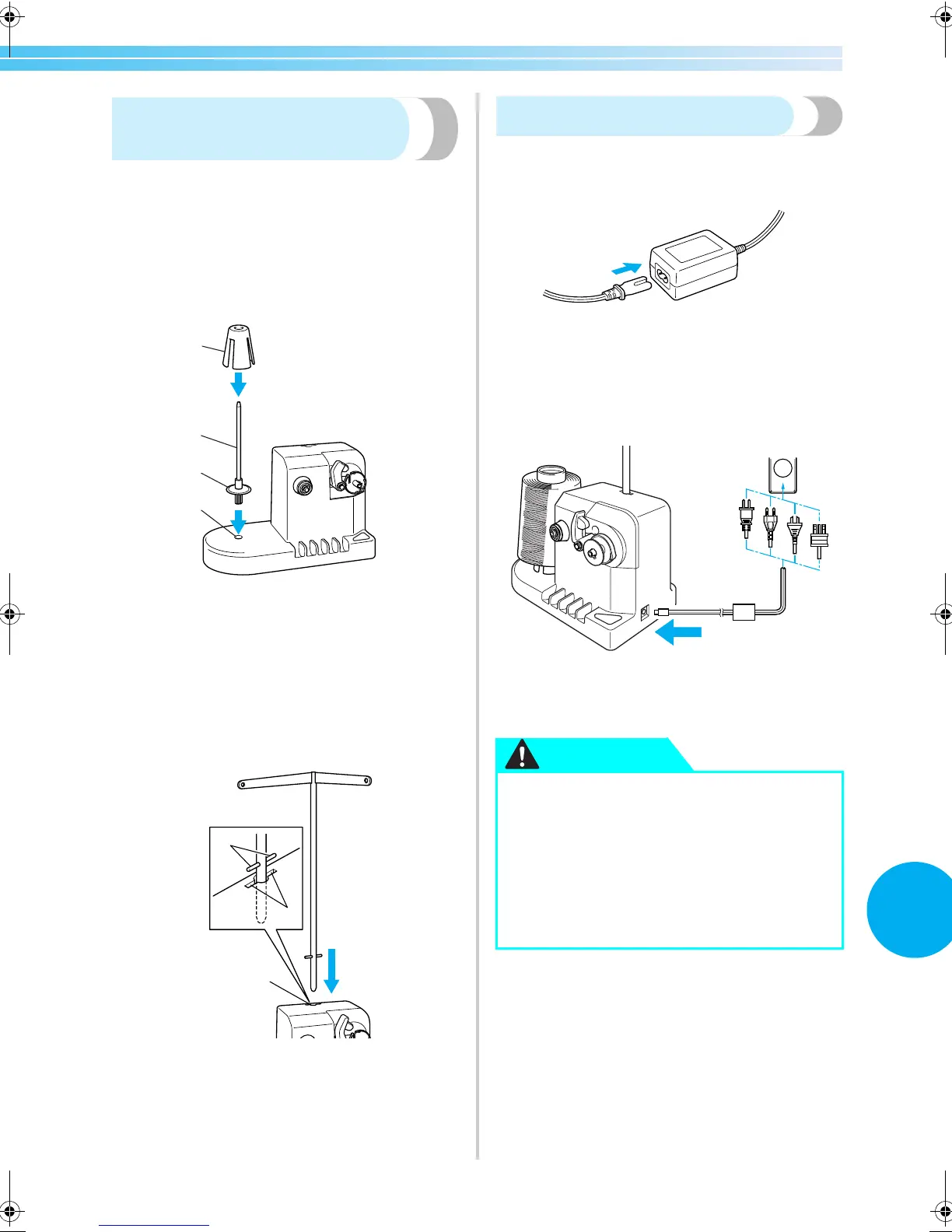

Setting up the optional
bobbin winder
Attach the spool pin, spool cushion and thread guide
to the bobbin winder.
1
Insert the spool pin and the spool cushion.
Lower the holder, and then insert the spool pin
straight into the hole. And insert the spool
cushion.
1 Spool pin
2 Spool pin holder
3 Hole for spool pin
4 Spool cushion
2
Insert the thread guide.
Insert the thread guide straight into the hole
with the pins on the thread guide aligned with
the notches on the sides of the hole.
1 Pins on thread guide
2 Notches on hole for thread guide
3 Hole for thread guide
• Firmly insert the thread guide as far as
possible and make sure that it is secure.
Connecting the AC adapter
1
Insert the plug of the power supply cord into
the AC adapter.
2
Plug the cord on the AC adapter into the DC
input connector of the bobbin winder, and
then insert the plug of the power supply cord
into a household electrical outlet.
• Be sure to firmly insert the plug on the AC
adapter into the DC input connector of the
bobbin winder.
4
1
2
3
1
2
3
● Be sure to use the included AC adapter.
Using any other AC adapter may result in
damage.
● Before connecting or disconnecting the
AC adapter, be sure that the unit is not
operating.
● After using the bobbin winder,
disconnect it from the electrical outlet.
CAUTION
Sapphire_chapt7.fm Page 189 Friday, November 18, 2005 12:10 PM
