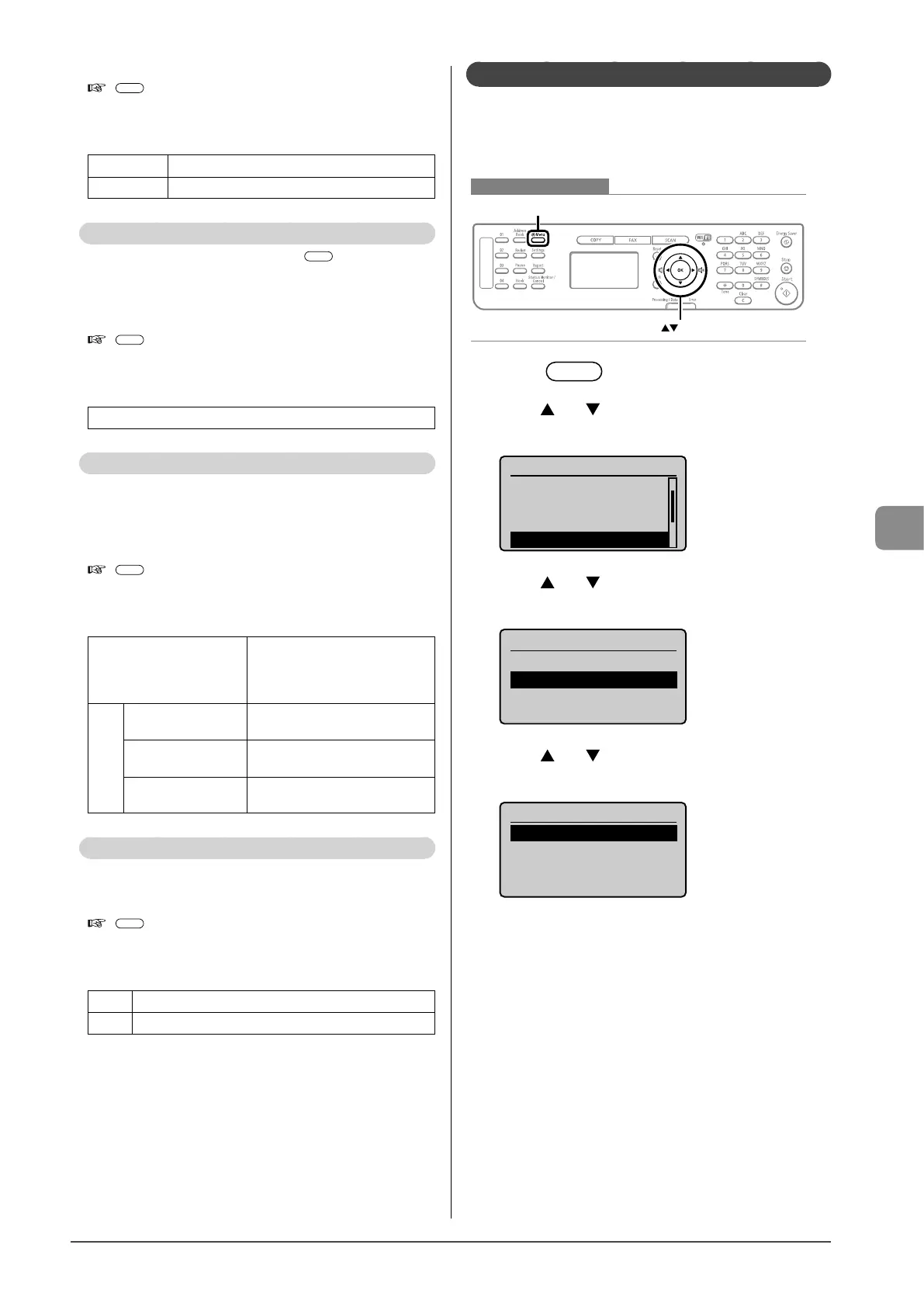

Canon ImageCLASS MF4570dw User Manual

6-21
Using the Fax Functions
How to display the settings
[ ] (Menu) → <Fax TX Settings> → <TX Function
Settings> → <ECM TX>
Settings
(Bold: Default settings)
Off Does not use the ECM function.
On Uses the ECM function.
Pause Time
Specify the length of a pause when [ ] (Pause) is
pressed.
For details on adding pauses, see “Sending a Fax Abroad
(Adding Pauses)” (→P.6-8)
How to display the settings
[ ] (Menu) → <Fax TX Settings> → <TX Function
Settings> → <Pause Time>
Settings
(Bold: Default settings)
1 to 2 to 15 (seconds)
Auto Redial
Set auto redialing to automatically reattempt to connect to
a destination if the line is busy or a send error occurs. You
can also specify the how many time to redial a number and
an interval between attempts.
How to display the settings
[ ] (Menu) → <Fax TX Settings> → <TX Function
Settings> → <Auto Redial>
Settings
(Bold: Default settings)
Off
Does not redial automatically.
When redialing manually, see
“Redialing (Manual Redialing)”
(→P.6-6).
On
Redial Times:
1 to 2 to 10 (times)
Set the number of redial
attempts.
Redial Interval:
2 to 99 (minutes)
Set an interval (in minutes)
between redial attempts.
Redial When Err
Occurs: Off, On
Specifies whether or not to redial
when a send error occurs.
Check Dial Tone Before Sending
When sending a fax, you can specify whether or not to
verify the dial tone before dialing.
How to display the settings
[ ] (Menu) → <Fax TX Settings> → <TX Function
Settings> → <Check Dial Tone Before Sending>
Settings
(Bold: Default settings)
Off Does not check the dial tone.
On Checks the dial tone before dialing.
Setting Procedure for Receiving Faxes
Specify the settings for receiving faxes using the following
procedure.
This section describes the procedure for changing the setting
for “ECM RX” as an example.
Keys to be used for this operation
Menu
OK
1 Press [ ] (Menu).
2 Press [ ] or [ ] to select <Fax RX Settings>, and
then press [OK].
Menu
Timer Settings
Copy Settings
Fax TX Settings
Fax RX Settings
3 Press [ ] or [ ] to select <Fax Settings>, and
then press [OK].
Fax RX Settings
RX Function Settings
Fax Settings
4 Press [ ] or [ ] to select <ECM RX>, and then
press [OK].
Fax Settings
ECM RX
Incoming Ring
Remote RX
Auto RX Switch
