Canon ImageCLASS MF4570dw User Manual

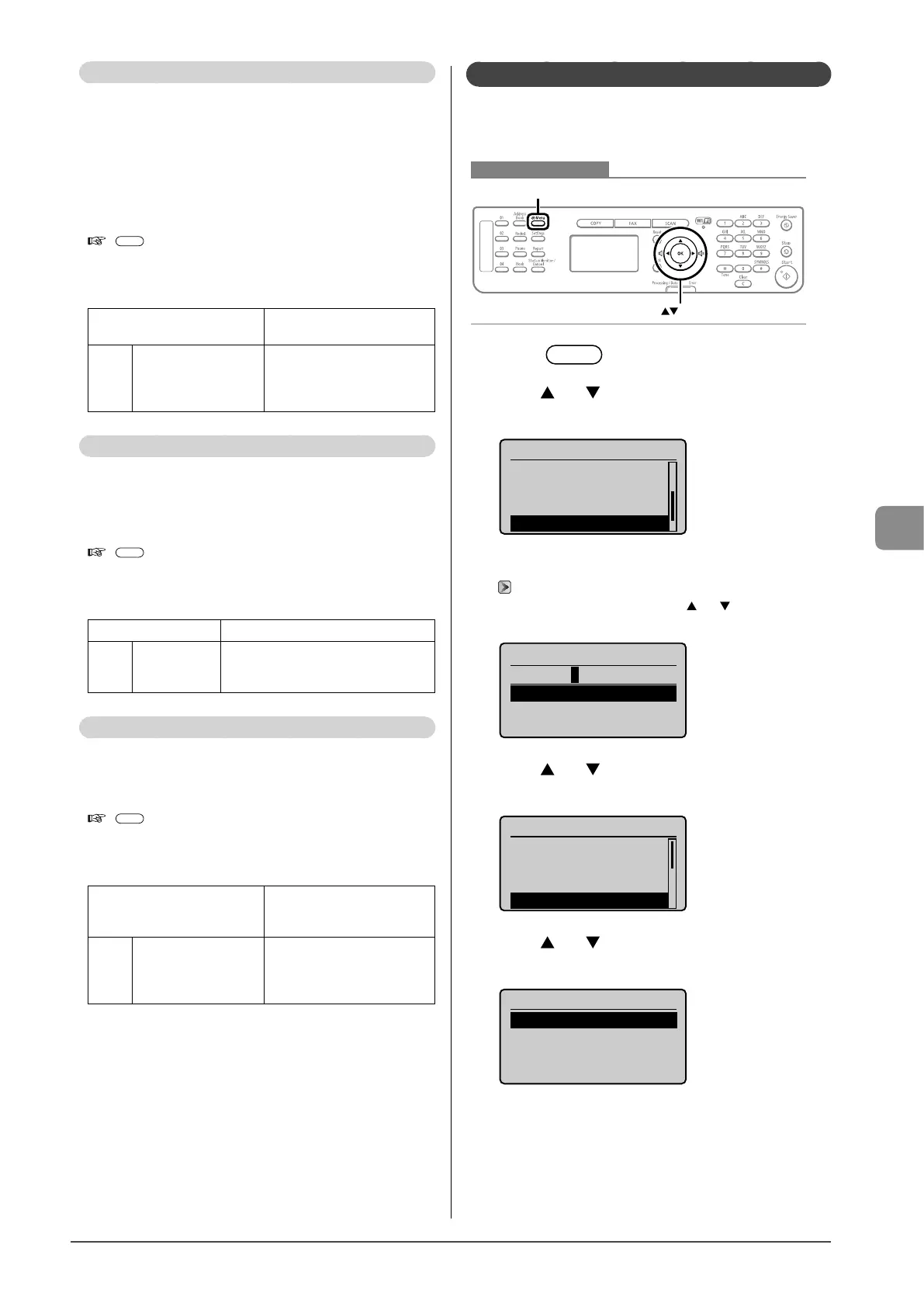

6-23
Using the Fax Functions
Incoming Ring
Specify whether or not the external telephone will ring
during an incoming call if <RX Mode> is set to <Auto> or
<Fax/Tel Auto Switch>.
You can also specify the number of ringing times.
After the external telephone rings for specified times, the
machine automatically starts receiving when receiving a
fax. When receiving a call, only when <RX Mode> is set to
<Fax/Tel Auto Switch>, the machine’s speaker rings.
How to display the settings
[ ] (Menu) → <Fax RX Settings> → <Fax Settings>
→ <Incoming Ring>
Settings
(Boldface: Default settings)
Off
The telephone does not ring
during an incoming call.
On
Ring Times: 1 to 2 to 99
(times)
The telephone rings during an
incoming call.
You can specify the number of
ringing times in <Ring Times>.
Remote RX
If an external telephone is connected, you can switch to the
fax receiving mode immediately by dialing the ID number
for fax receiving using the dial buttons of the telephone
during a phone call.
How to display the settings
[ ] (Menu) → <Fax RX Settings> → <Fax Settings>
→ <Remote RX>
Settings
(Boldface: Default settings)
Off Remote receiving is disabled.
On
Remote RX ID:
00 to 25 to 99
Remote receiving is enabled.
You can specify an ID number for fax
receiving in <Remote Receive ID>.
Auto RX Switch
Specify how long an incoming call should ring before the
machine automatically switches to fax mode. This option is
available when the <RX Mode> is set to <Manual>.
How to display the settings
[ ] (Menu) → <Fax RX Settings> → <Fax Settings>
→ <Auto RX Switch>
Settings
(Bold: Default settings)
Off
The machine will not
automatically switch to fax
mode.
On
Incoming Ring Time: 1
to 15 to 99 (seconds)
The machine will
automatically switch to fax
mode after the specified
period.
System Settings Procedure
Specify the system settings using the following procedure.
This section describes the procedure for changing the setting
for “TX Start Speed” as an example.
Keys to be used for this operation
Menu
OK
1 Press [ ] (Menu).
2 Press [ ] or [ ] to select <System Management
Settings>, and then press [OK].
Menu
Fax TX Settings
Fax RX Settings
Adjustment/Maintena...
System Management Se
When the system manager PIN is specified
Enter the system manager PIN.
“Text Input Method” (→P.1-9)
When you are finished entering, press[ ] or [ ] to select <Apply>,
and then press [OK].
System Manager PIN
*******
<Apply>
1 2 3 4 5 6 7 8 9 0
<BS>
3 Press [ ] or [ ] to select <Communication
Management Settings>, and then press [OK].
System Settings
System Manager Info
...
Device Information ...
Network Settings
Communication Manage
4 Press [ ] or [ ] to select <Fax Settings>, and
then press [OK].
Communication Mgt. Set
Fax Settings
Memory Lock Settings

Canon ImageCLASS MF4570dw Specifications

General

Dimensions (WxDxH)	391.16 x 421.6 x 370.8 mm
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	No
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Economical printing	Yes
Time to first page (black, normal)	6 s
Print speed (black, normal quality, A4/US Letter)	26 ppm
Duplex print speed (black, normal quality, A4/US Letter)	16 ppm
Printing colors	Black
Maximum duty cycle	- pages per month
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Time to first copy (black, normal)	13.5 s
Copy speed (black, normal quality, A4)	26 cpm
Scan drivers	TWAIN, WIA
Grayscale levels	256
Input color depth	24 bit
Maximum scan area	Legal (216 x 356) mm
Image formats supported	BMP, GIF, JPG, PNG, TIF
Maximum scan resolution	9600 x 9600 DPI
Faxing	Mono faxing
Fax memory	256 pages
Modem speed	33.6 Kbit/s
Fax resolution (black)	203 x 391 DPI
Total input capacity	- sheets
Total output capacity	100 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Display	-
Market positioning	Home & office
Standard interfaces	Ethernet, USB 2.0, Wireless LAN
USB 2.0 ports quantity	1
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, TKIP, WEP, WPA-AES, WPA-PSK, WPA2-PSK
Power consumption (PowerSave)	4 W
Power consumption (average operating)	1090 W
Windows operating systems supported	Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
