Canon ImageCLASS MF4570dw User Manual

1-5
Before Using the Machine

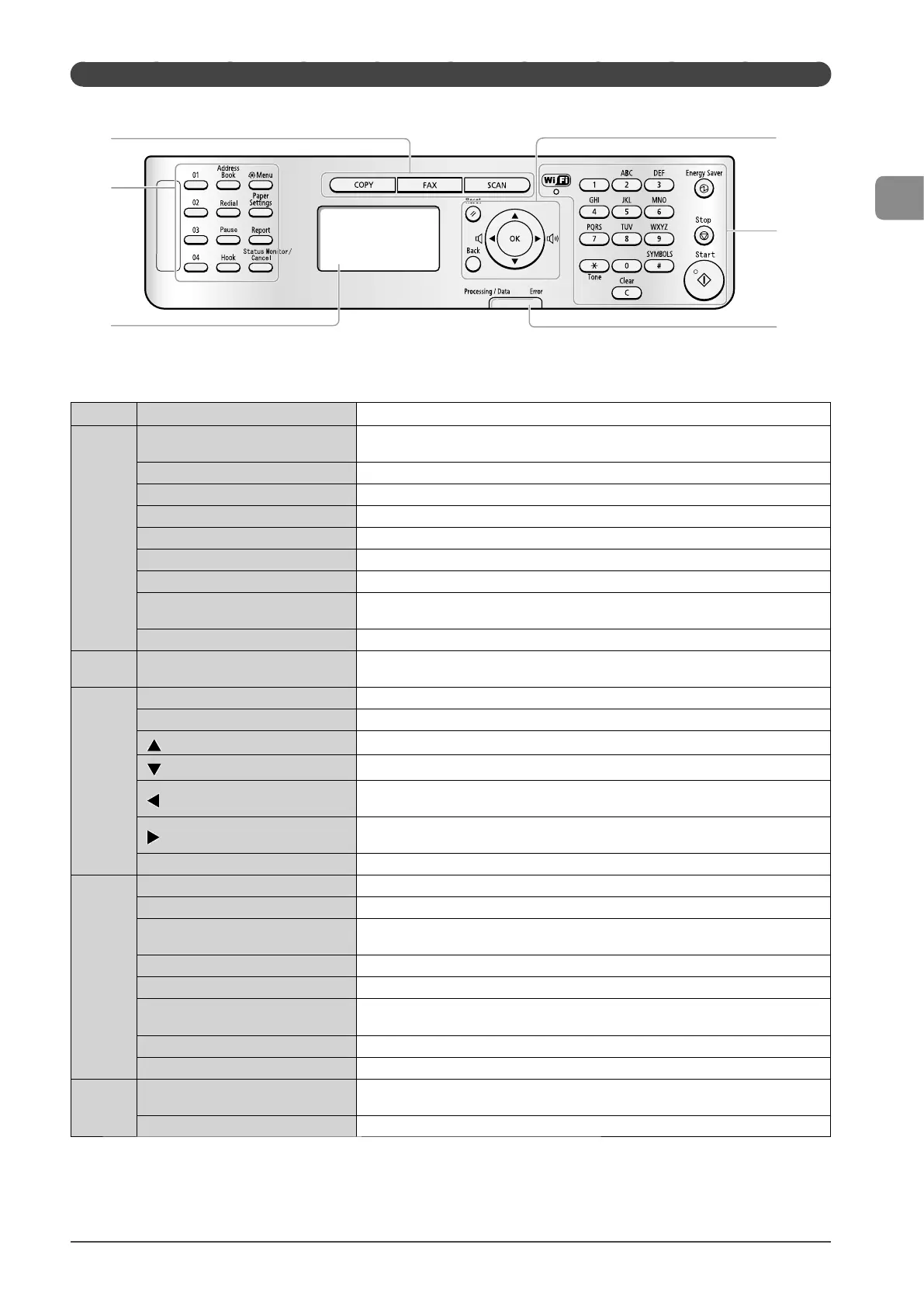

Operation Panel
(3)
(5)
(2)
(6)
(4)
(1)
(1)
Mode switching keys Press to switch the mode to copy, fax, or scan.
(2)
[One-touch Speed Dial] keys
([01]/[02]/[03]/[04] keys)
Press to specify recipients registered under one-touch keys.
[Address Book] key Press to search recipients registered under one-touch keys or coded dial codes.
[Redial] key When faxing, press to redial the last number.
[Pause] key When entering a fax number, press to insert a pause.
[Hook] key Press to dial a number without lifting the telephone handset.
[Menu] key Press to specify or register various settings.
[Paper Settings] key Press to specify paper size and type for the paper cassette or multi-purpose tray.
[Report] key
Press to manually print reports and lists. You can also specify whether to print a report
automatically.
[Status Monitor/Cancel] key Press to view or cancel jobs. You can also check the status of the network and machine.
(3)
LCD
During normal operation, displays messages and prompts. When adjusting the settings,
displays your selections, text, and numbers.
(4)
[Reset] key Press to reset the settings. (Press to reset the copy/scan/fax mode to the standard mode.)
[Back] key Press to return to the previous screen.
[
] key
Press to scroll up or to increase a value.
[
] key
Press to scroll down or to decrease a value.
[
] key
Press to return to the previous screen or move the cursor to the left. While fax
communication sound is ringing, press to decrease the volume.
[
] key
Press to proceed to the next screen or move the cursor to the right. While fax
communication sound is ringing, press to increase the volume.
[OK] key Press to confirm an action or setting.
(5)
[Wi-Fi] indicator Turns on when the machine is connected to Wireless LAN.
Numeric keys ([0]-[9] keys) Enter letters and numbers.
[*] key
Press to switch the character entry mode. When sending a fax, press to switch between
pulse and tone dialing.
[#] key Press to enter symbols.
[Clear] key Deletes letters and numbers.
[Energy Saver] key
Press to manually set or cancel the Sleep mode. The Energy Saver light will be green when
in Sleep mode.
[Stop] key Press to cancel jobs.
[Start] key Press to start copying, scanning, or sending a fax.
(6)
[Processing/Data] indicator
The indicator blinks while sending or receiving faxes and remains lit when jobs are
waiting in memory.
[Error] indicator The indicator blinks when an error occurs.

Canon ImageCLASS MF4570dw Specifications

General

Dimensions (WxDxH)	391.16 x 421.6 x 370.8 mm
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	No
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Economical printing	Yes
Time to first page (black, normal)	6 s
Print speed (black, normal quality, A4/US Letter)	26 ppm
Duplex print speed (black, normal quality, A4/US Letter)	16 ppm
Printing colors	Black
Maximum duty cycle	- pages per month
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Time to first copy (black, normal)	13.5 s
Copy speed (black, normal quality, A4)	26 cpm
Scan drivers	TWAIN, WIA
Grayscale levels	256
Input color depth	24 bit
Maximum scan area	Legal (216 x 356) mm
Image formats supported	BMP, GIF, JPG, PNG, TIF
Maximum scan resolution	9600 x 9600 DPI
Faxing	Mono faxing
Fax memory	256 pages
Modem speed	33.6 Kbit/s
Fax resolution (black)	203 x 391 DPI
Total input capacity	- sheets
Total output capacity	100 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Display	-
Market positioning	Home & office
Standard interfaces	Ethernet, USB 2.0, Wireless LAN
USB 2.0 ports quantity	1
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, TKIP, WEP, WPA-AES, WPA-PSK, WPA2-PSK
Power consumption (PowerSave)	4 W
Power consumption (average operating)	1090 W
Windows operating systems supported	Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
