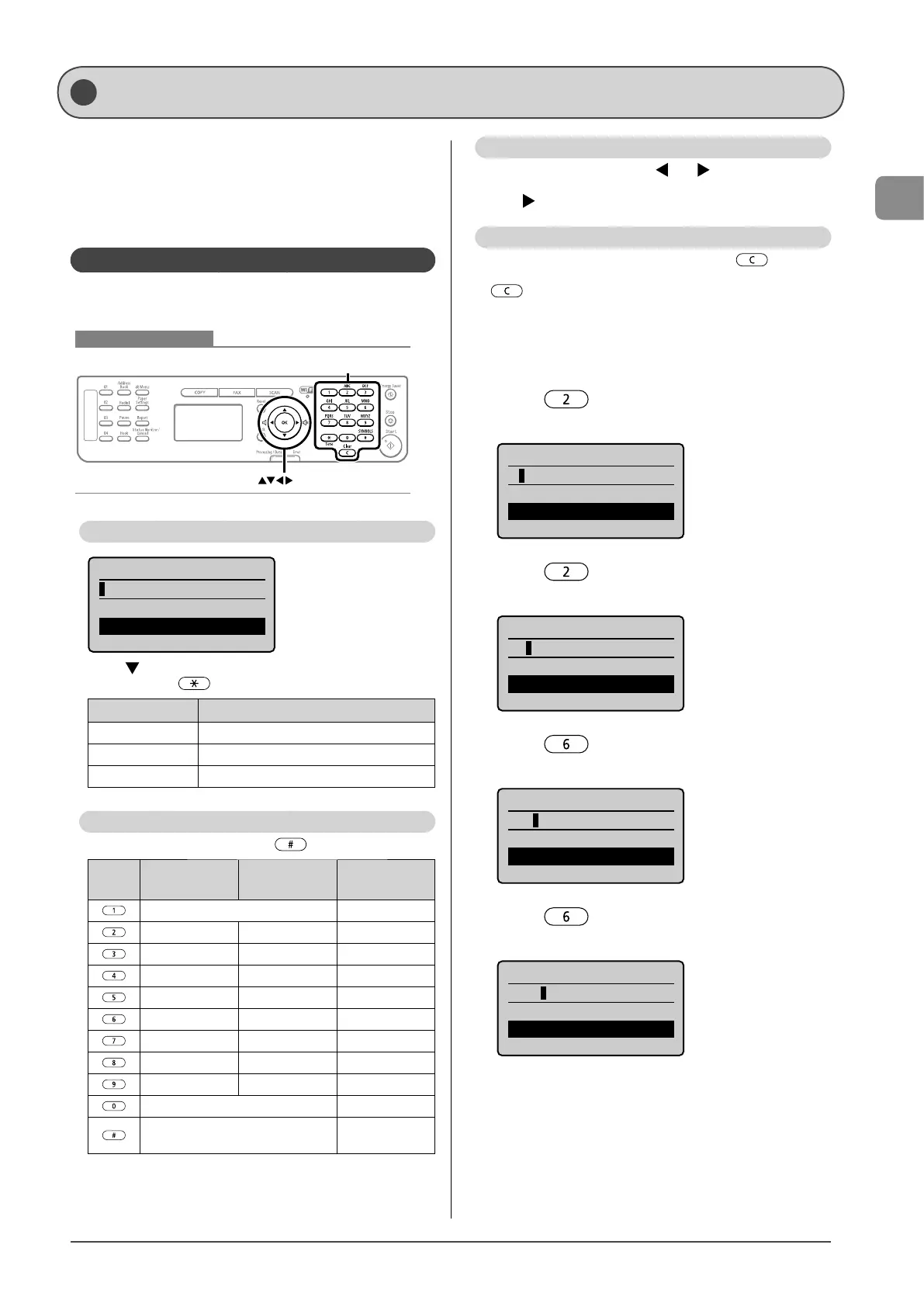

Canon ImageCLASS MF4570dw User Manual

1-9
Before Using the Machine
Text Input Method
* When entering the followings, see “Entering IP Address.”
• IP address
• Subnet mask
• Gateway address
• DNS server address
Entering Text Except for IP Address
Enter information (text, symbols, and numbers) into the
machine using the following keys.
Keys to be used for this operation
OK
Tone, Numeric keys,
SYMBOLS, Clear
Changing the Entry Mode
Register Unit Name
<Apply>
Entry Mode: A
Press [ ] to select <Entry Mode>, and then press [OK]. You
can also press [
] (Tone) to change the entry mode.
Entry mode Available text
<A> Alphabet (capital letters) and symbols
<a> Alphabet (small letters) and symbols
<12> Numbers
Entering Text, Symbols, and Numbers
Enter with the numeric keys or [ ] (Symbols)
Keys
used
Entry mode:
<A>
Entry mode:
<a>
Entry mode:
<12>
@ . - _ / 1
ABC abc 2
DEF def 3
GHI ghi 4
JKL jkl 5
MNO mno 6
PQRS pqrs 7
TUV tuv 8
WXYZ wxyz 9
(Not available) 0
- . * # ! ” , ; : ^ ` _ = / | ’ ?
$ @ % & + \ ( ) [ ] { } < >
(Not available)
Moving the Cursor (Entering a Space)
Move the cursor by pressing [ ] or [ ].
To enter a space, move the cursor to the end of the text and
press [
].
Deleting text, symbols, or numbers
To delete text, numbers, or symbols, press [ ] (Clear).
To delete all text, numbers, or symbols, press and hold
[
] (Clear).
Example: Enter <CANON>.
1 Ensure that the input mode is <A>.
2 Press [ ] until the letter “C” appears on the
display.
Register Unit Name
C
<Apply>
Entry Mode: A
3 Press [ ] until the letter “A” appears on the
display.
Register Unit Name
CA
<Apply>
Entry Mode: A
4 Press [ ] until the letter “N” appears on the
display.
Register Unit Name
CAN
<Apply>
Entry Mode: A
5 Press [ ] until the letter “O” appears on the
display.
Register Unit Name
CANO
<Apply>
Entry Mode: A

Canon ImageCLASS MF4570dw Specifications

General

Dimensions (WxDxH)	391.16 x 421.6 x 370.8 mm
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	No
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Economical printing	Yes
Time to first page (black, normal)	6 s
Print speed (black, normal quality, A4/US Letter)	26 ppm
Duplex print speed (black, normal quality, A4/US Letter)	16 ppm
Printing colors	Black
Maximum duty cycle	- pages per month
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Time to first copy (black, normal)	13.5 s
Copy speed (black, normal quality, A4)	26 cpm
Scan drivers	TWAIN, WIA
Grayscale levels	256
Input color depth	24 bit
Maximum scan area	Legal (216 x 356) mm
Image formats supported	BMP, GIF, JPG, PNG, TIF
Maximum scan resolution	9600 x 9600 DPI
Faxing	Mono faxing
Fax memory	256 pages
Modem speed	33.6 Kbit/s
Fax resolution (black)	203 x 391 DPI
Total input capacity	- sheets
Total output capacity	100 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Display	-
Market positioning	Home & office
Standard interfaces	Ethernet, USB 2.0, Wireless LAN
USB 2.0 ports quantity	1
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, TKIP, WEP, WPA-AES, WPA-PSK, WPA2-PSK
Power consumption (PowerSave)	4 W
Power consumption (average operating)	1090 W
Windows operating systems supported	Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
