Canon ImageCLASS MF4570dw User Manual

8-3
Maintenance

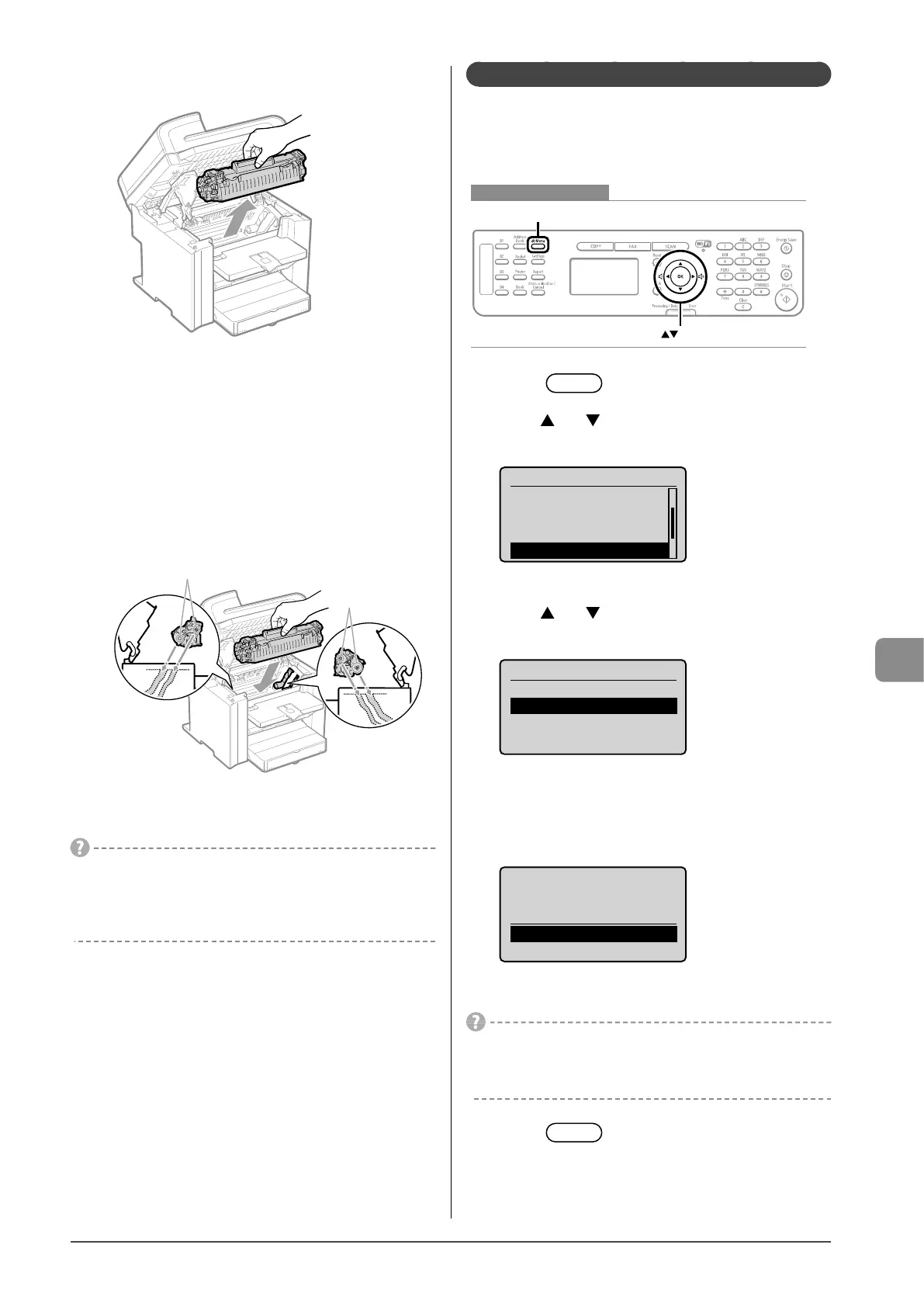

6 Remove the toner cartridge.
7 Remove any toner or paper debris from interior of
the machine, with a clean, soft, dry, and lint-free
cloth.
8 Insert the toner cartridge.
Fit the protrusions (A) on each side of the toner cartridge into the
guides located on each side of the machine, and then slide the
toner cartridge into the machine until the toner cartridge meets
the back of the machine.
(A)
(A)
9 Close the toner cover.
If you cannot close the toner cover
Ensure that the toner cartridge is properly set in the machine.
Do not try to forcefully close the toner cover, as this may damage
the machine.
10 Lower the scanning platform.
11 Connect the power cord and turn ON the power
switch.
Cleaning the Fixing Unit
In the following cases, the fixing unit may be dirty. Clean the
fixing unit.
• When black streaks appear on the printed paper
• When a toner cartridge is replaced
Keys to be used for this operation
Menu
OK
1 Press [ ] (Menu).
2 Press [ ] or [ ] to select <Adjustment/
Maintenance>, and then press [OK].
Menu
Copy Settings
Fax TX Settings
Fax RX Settings
Adjustment/Maintenan
3 Press [ ] or [ ] to select <Clean Fixing Unit>,
and then press [OK].
Adjustment/Maintenance
Special Processing
Clean Fixing Unit
4 Load Letter size plain paper in the multi-purpose
tray, and then press [OK].
The cleaning process will start. Cleaning takes approximately 90
seconds.
Clean Fixing Unit
Load paper larger than
A4/LTR in MP Tray.
Start
* It is recommended that you use plain paper to clean the fixing
unit.
If cleaning does not begin
When there are jobs stored in memory, this function is not
available.
5 Press [ ] (Menu) to close the menu
screen.

Canon ImageCLASS MF4570dw Specifications

General

Dimensions (WxDxH)	391.16 x 421.6 x 370.8 mm
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	No
Print technology	Laser
Maximum resolution	1200 x 600 DPI
Economical printing	Yes
Time to first page (black, normal)	6 s
Print speed (black, normal quality, A4/US Letter)	26 ppm
Duplex print speed (black, normal quality, A4/US Letter)	16 ppm
Printing colors	Black
Maximum duty cycle	- pages per month
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Time to first copy (black, normal)	13.5 s
Copy speed (black, normal quality, A4)	26 cpm
Scan drivers	TWAIN, WIA
Grayscale levels	256
Input color depth	24 bit
Maximum scan area	Legal (216 x 356) mm
Image formats supported	BMP, GIF, JPG, PNG, TIF
Maximum scan resolution	9600 x 9600 DPI
Faxing	Mono faxing
Fax memory	256 pages
Modem speed	33.6 Kbit/s
Fax resolution (black)	203 x 391 DPI
Total input capacity	- sheets
Total output capacity	100 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Display	-
Market positioning	Home & office
Standard interfaces	Ethernet, USB 2.0, Wireless LAN
USB 2.0 ports quantity	1
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, TKIP, WEP, WPA-AES, WPA-PSK, WPA2-PSK
Power consumption (PowerSave)	4 W
Power consumption (average operating)	1090 W
Windows operating systems supported	Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
