Laser Exposure System
Removing the Laser Scanner
Unit
■ Preparations
1. Remove Right Cover.“Removing the Right Cover”
on page 80
2. Remove Left Cover.“Removing the Left Cover” on
page 80
3. Remove Rear Cover Unit.“Removing the Rear Cover
Unit / Duplex Feed Unit” on page 81
4. Remove Upper Cover Unit.“Removing the Upper
Cover Unit” on page 82
■ Procedure

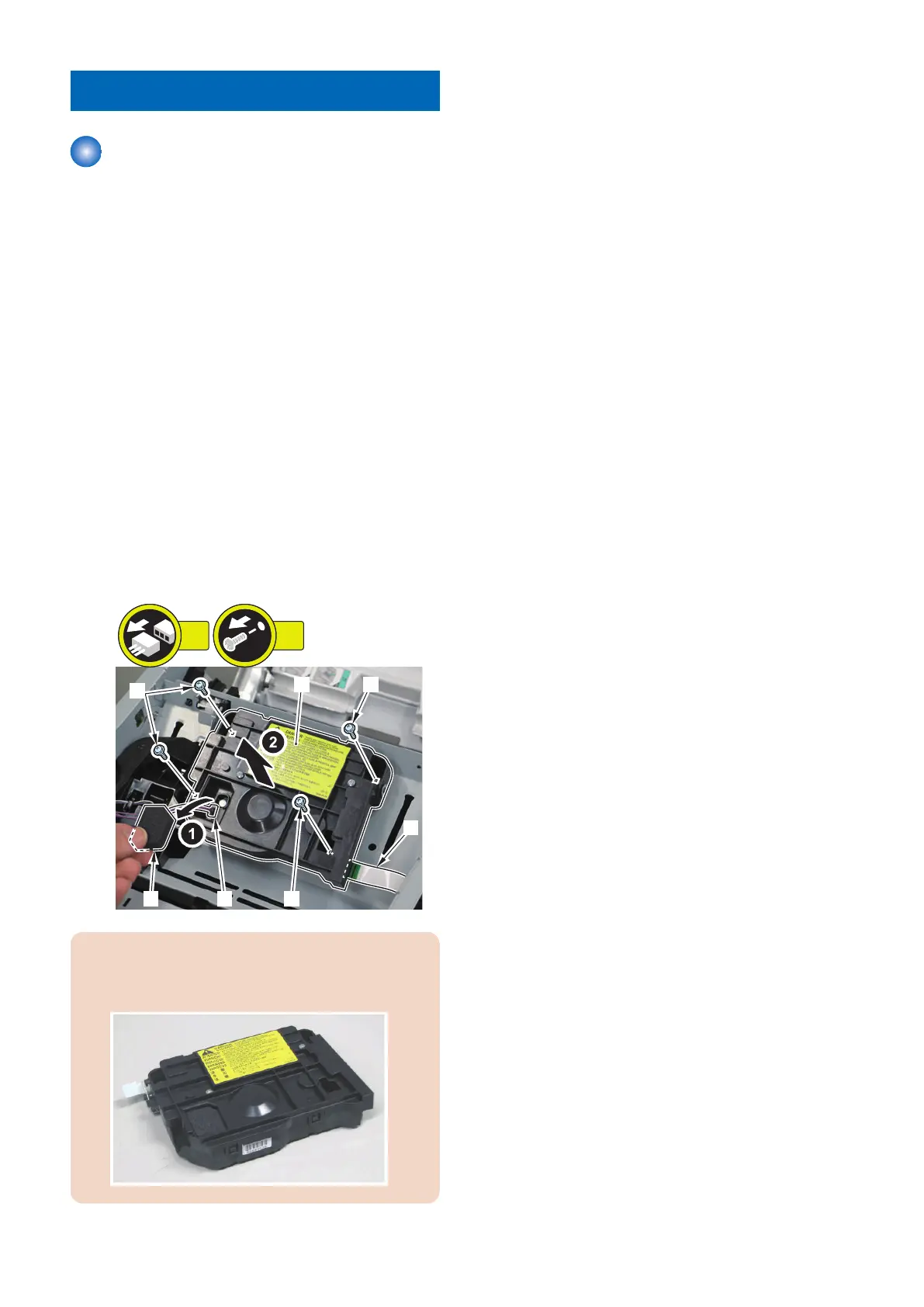

1. Remove Laser Scanner Unit [1].
• 1 Sponge [2]
• 1 Connector [3]
• 1 Flat cable [4]
• 4 Screw [5]
[1]
[2]
[4]
[5]
[5]
[5]
[3]
4x
2x
CAUTION:
Do not disassemble the laser scanner unit at a field.
It may cause a malfunction.
4. Disassembly/Assembly
96
To Next Page
