Canon LBP253 SM User Manual

External Cover, Internal Cover

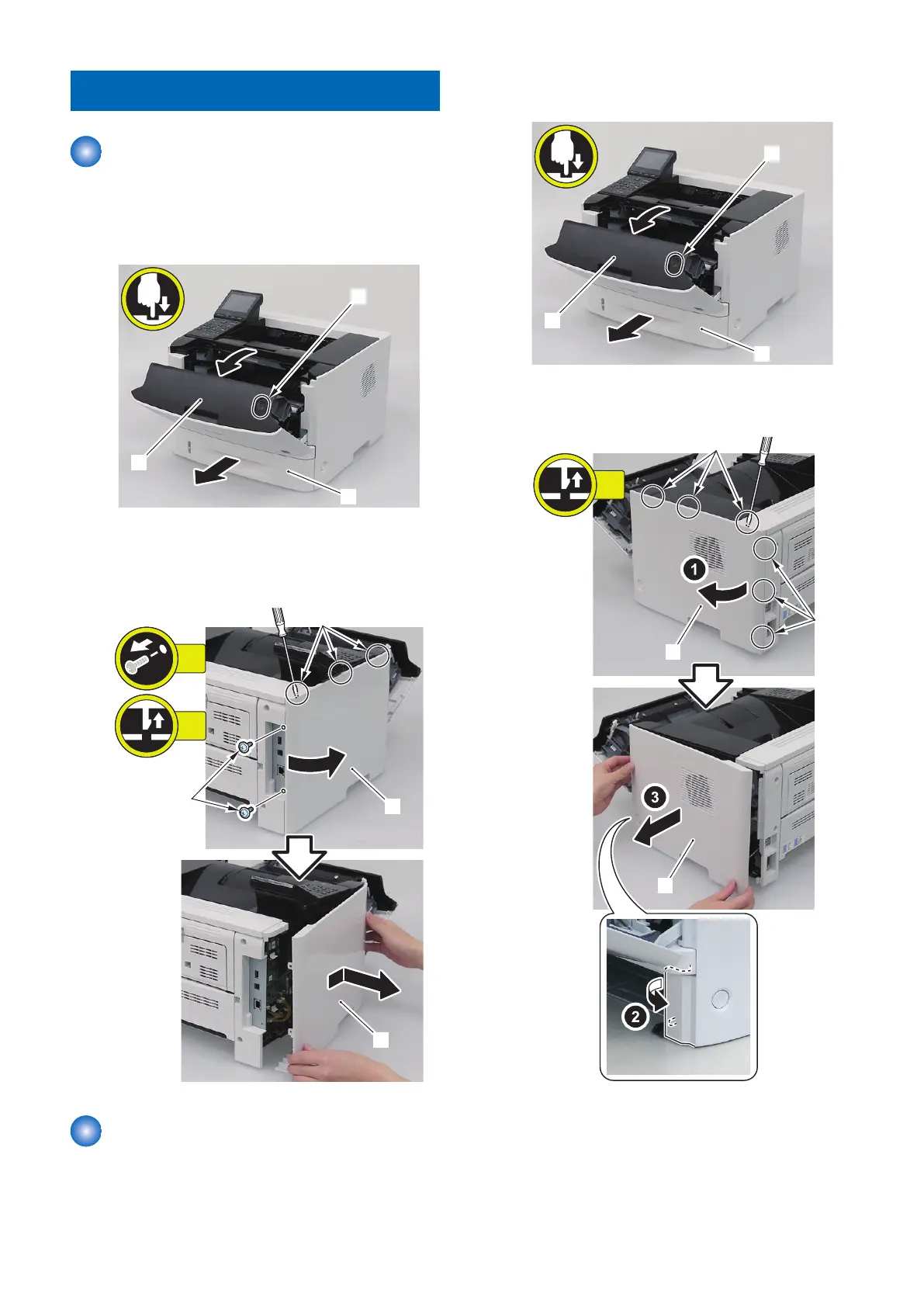

Removing the Left Cover
1. Remove Cassette [1].
2. Press Release Button [2] and open Cartridge Door
Unit [3].
[1]
[3]
[2]
3. Remove 2 screw [2] and 3 disengage tab [3] in
direction.
4. Remove Left Cover [1] in direction.
[1]
[1]
[2]
[3]
2x
3x
Removing the Right Cover
1. Remove Cassette [1].
2. Press Release Button [2] and open Cartridge Door
Unit [3].
[1]
[3]
[2]
3. Release the 6 claws [1] and remove the Right Cover
[2] while opening it in the direction of the arrow.
[1]
[1]
[2]
[2]
6x
4. Disassembly/Assembly
80
