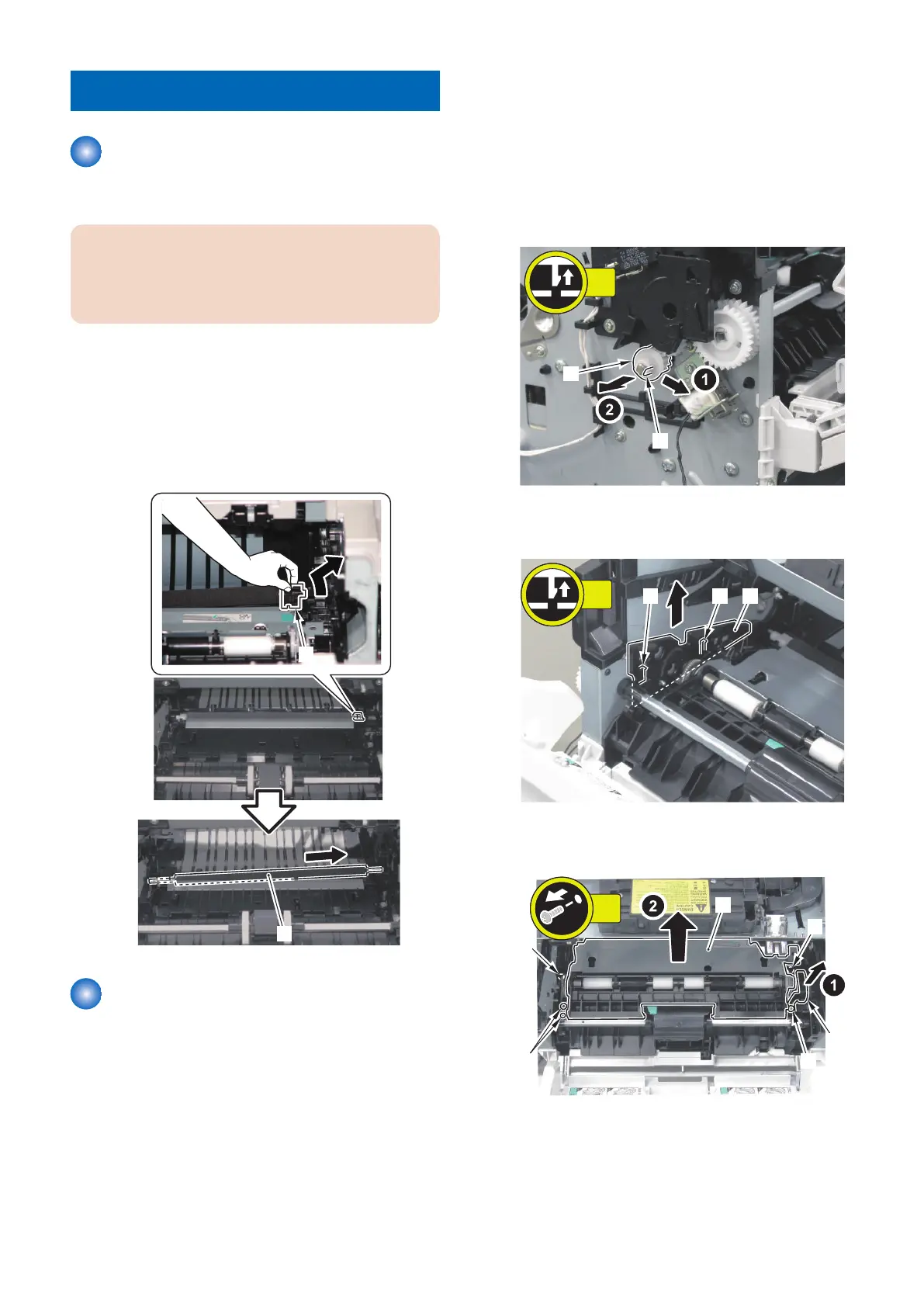

Image Forming System
Removing the Transfer Roller
■ Procedure
CAUTION:
When assembling / disassembling the transfer
charging roller, hold the shaft or bushing of the transfer
charging roller and do not touch the sponge parts.
1. Press Release Button [1] and open Front Cover Unit
[2].
2. Pinch the Holder [1] and Remove It In the Direction
Of the Arrow.
3. Remove the Transfer Roller [2] In the Direction Of the
Arrow.
[1]
[2]
Removing the Registration
Unit
■ Preparations
1. Remove Left Cover.“Removing the Left Cover” on
page 80
2. Remove Right Cover.“Removing the Right Cover”
on page 80
3. Remove Rear Cover Unit.“Removing the Rear Cover
Unit / Duplex Feed Unit” on page 81
4. Remove Upper Cover Unit.“Removing the Upper
Cover Unit” on page 82
■ Procedure
1. Remove tab [1] and gear [2].
[2]
[1]
1x
2. Lift guide [1] up to remove.
2 Hook [2]
[2] [1][2]
2x
3. Remove gear cover [3] and Registration Unit [1].
5 Screw [2]
[1]
[2]
[2]
[2]
[2]
[3]
5x
4. Disassembly/Assembly
97
