Paper Pickup/Transport/
Output System

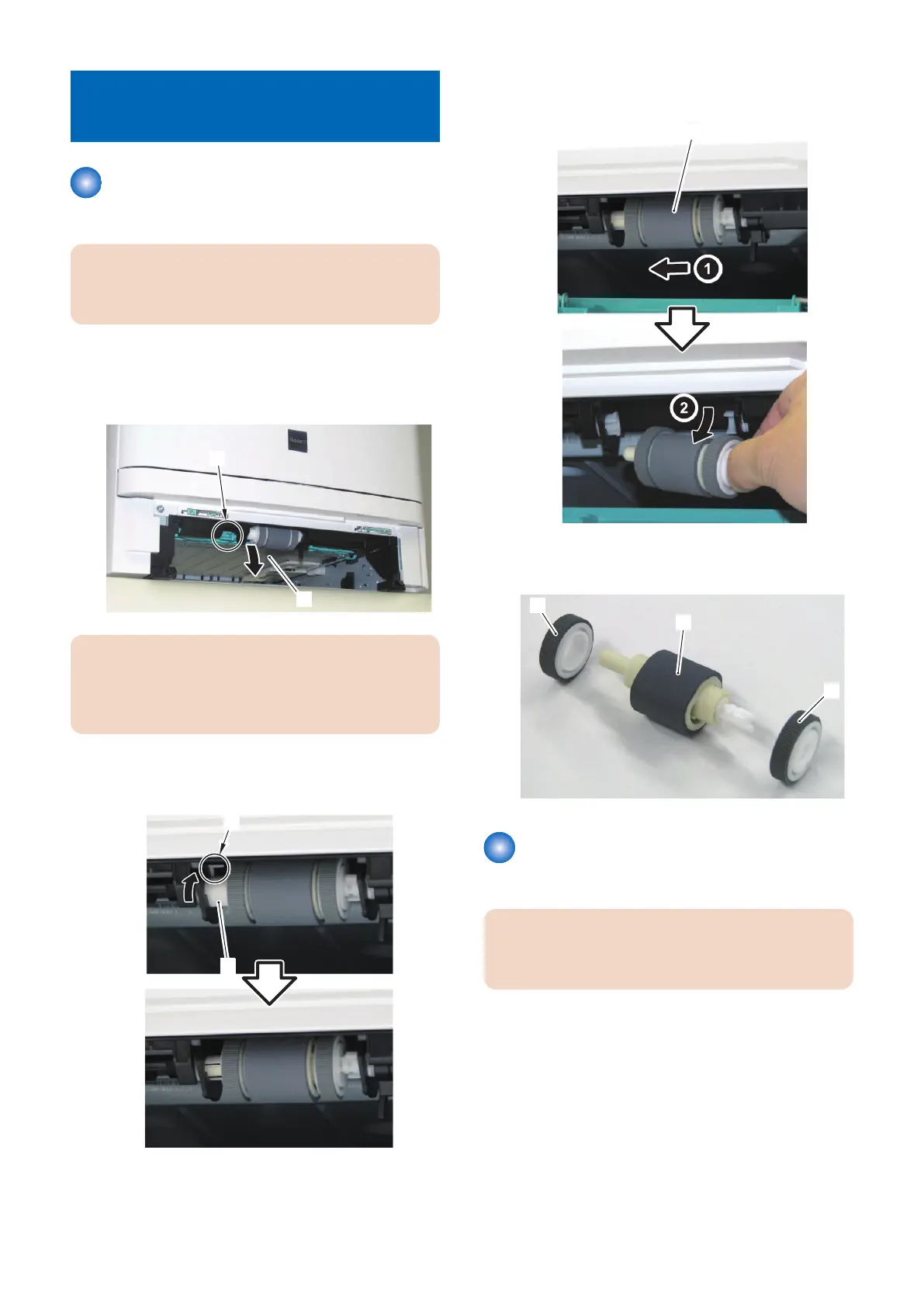

Removing the Cassette Pickup
Roller
CAUTION:
Do not touch the surface of the Cassette Pickup Roller
when removing or mounting it.
1. Remove Cassette.
2. Lift Lever [1] and move Duplex Feed Unit [2]
downwards.
[1]
[2]
CAUTION:
During reassembly, 2 raise Lever [1] of Duplex Feed
Unit and attach Duplex Feed Unit [3] to Main Unit by
using 2 magnet [2] on each side.
3. Rotate left-side bushing [1] in arrow direction.
• 1 Tab [2]
[2]
[1]
4. Remove Cassette Pickup Roller [1] in arrow
direction.
[1]
5. Remove 2 Pickup Toller [2] from Cassette Pickup
Roller [1].
[1]
[2]
[2]
Removing the Cassette
Separation Pad
CAUTION:
Do not touch the surface of the Cassette Separation
Pad when removing or mounting it.
1. Remove Cassette.
4. Disassembly/Assembly
100
