Canon LBP253 SM User Manual

J206
J916
J202
J2142
J2141
J908
J951
J954
J953
J965
J1
J2
J10
J925
J13
J12
J905
J914
J211
J1202
J210
J302
J102

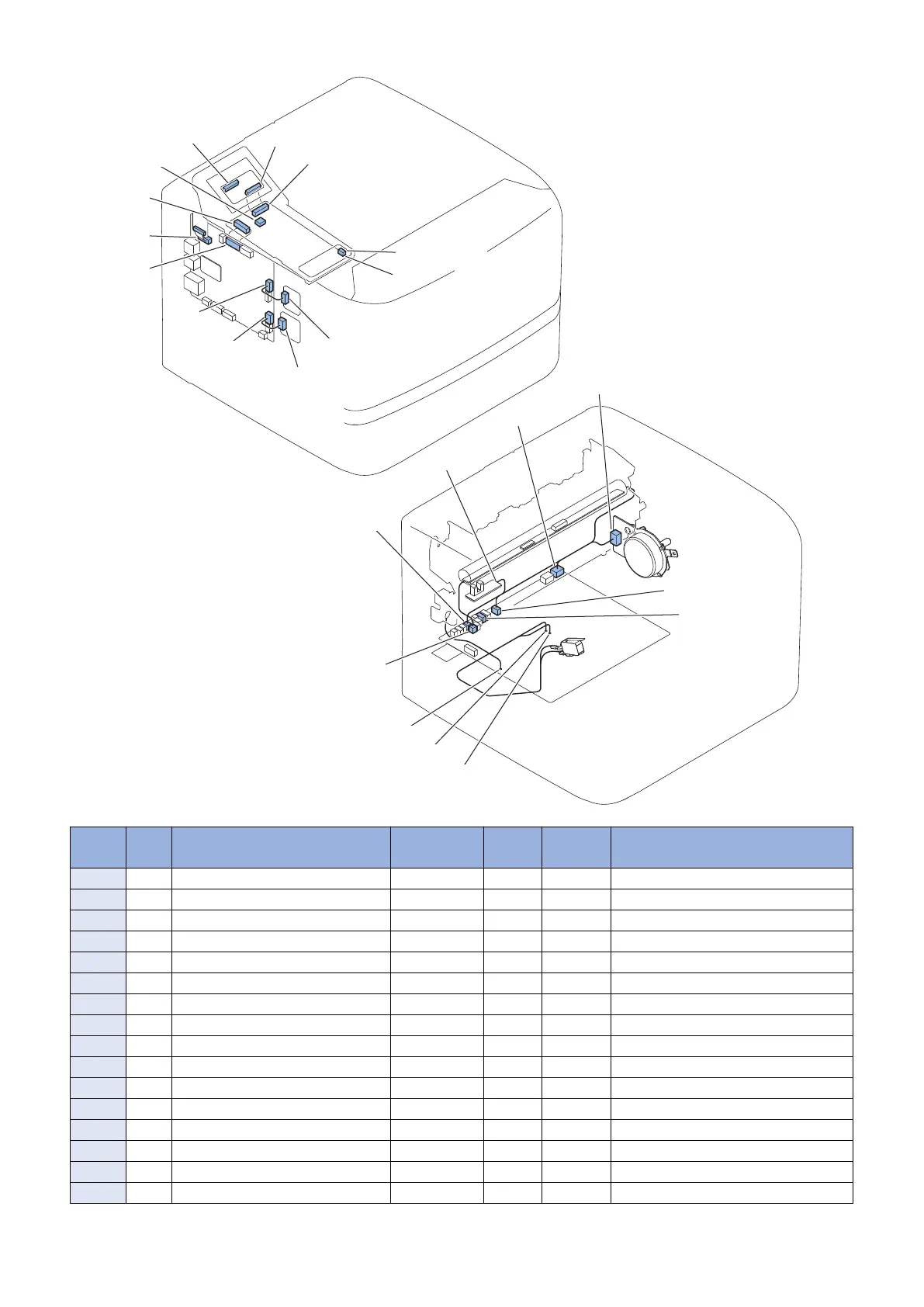

J No. Sym-
bol
Name Relay con-
nector
J No. Symbol Name
J102 - Engin Controller PCB J102 - Fixing Heater
J210 - Engin Controller PCB J210 - Fixing Thermistor
J202 - Engin Controller PCB J1202 M1 Main Motor
J206 - Engin Controller PCB J916 PS916 Fixing Paper Output Sensor
J211 - Engin Controller PCB J1205 - - -
J302 - Engin Controller PCB - - -
J2141 - Engin Controller PCB - SW301 Door Switch
J2142 - Engin Controller PCB - SW301 Door Switch
J908 - Main Controller PCB - - Wireless LNA PCB
J905 - Main Controller PCB J12 - SOFT-ID PCB
J914 - Main Controller PCB J13 - COUNTER PCB
J925 - Main Controller PCB J951 - Control Panel PCB
J965 - Control Panel PCB J10 - NFC PCB
J953 - Control Panel PCB J2 - Control Panel Relay PCB
J1 - Control Panel Relay PCB - - LCD
J954 - Control Panel PCB - - Touch Panel
