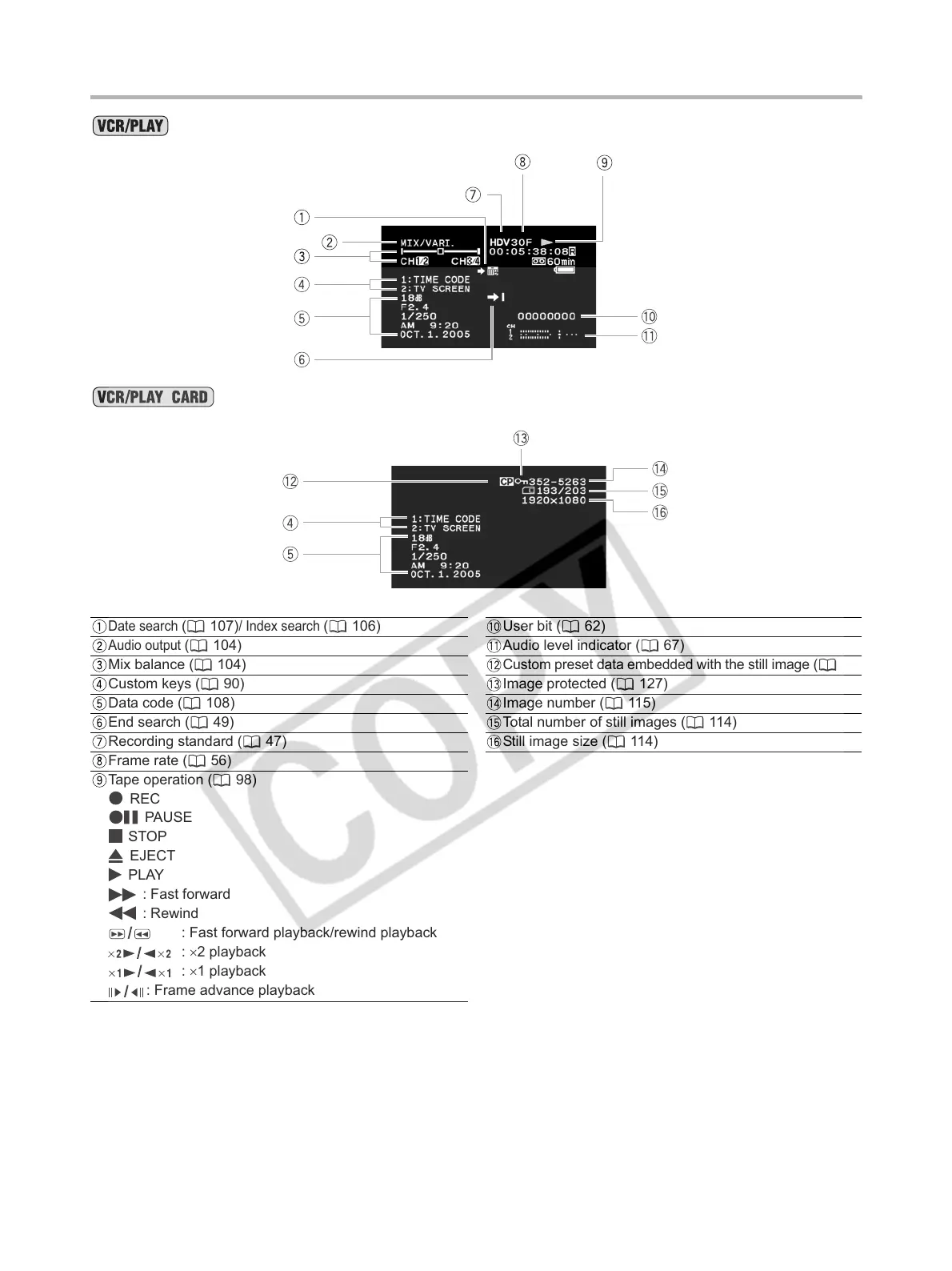

Screen Displays during Playback

Date search

( 107)

/ Index search

( 106)

Audio output

( 104)

Mix balance ( 104)

Custom keys ( 90)

Data code ( 108)

End search ( 49)

Recording standard ( 47)

Frame rate ( 56)

Tape operation ( 98)

REC

PAUSE

STOP

EJECT

PLAY

: Fast forward

: Rewind

: Fast forward playback/rewind playback

: u2 playback

: u1 playback

: Frame advance playback

User bit ( 62)

Audio level indicator ( 67)

Custom preset data embedded with the still image

(88

)

Image protected ( 127)

Image number ( 115)

Total number of still images ( 114)

Still image size ( 114)
