5.6-3 Check Valve Service –
Top Mount Valves
IMPORTANT: Service the check valve in a clean work
area.
1 Remove the cartridge valves. The non-sideshifting
check valve has one cartridge valve, the sideshift check
valve has three cartridge valves.
2 Remove the special fitting and spool.
3 Remove the remaining plugs and fittings.
4 Remove the O-rings and back-up rings from the
cartridge valve, fittings and plugs.
5 Clean all parts with cleaning solvent.
6 For reassembly, reverse the above procedures except
as follows:
• The cartridge valve back-up rings and O-rings must
be installed as shown to avoid seal damage during
reassembly.
• Lubricate cartridges and seals with petroleum jelly
prior ti reassembly.
NOTE: The 40D non-sideshifting check valve configuration
differs slightly from the illustration below.

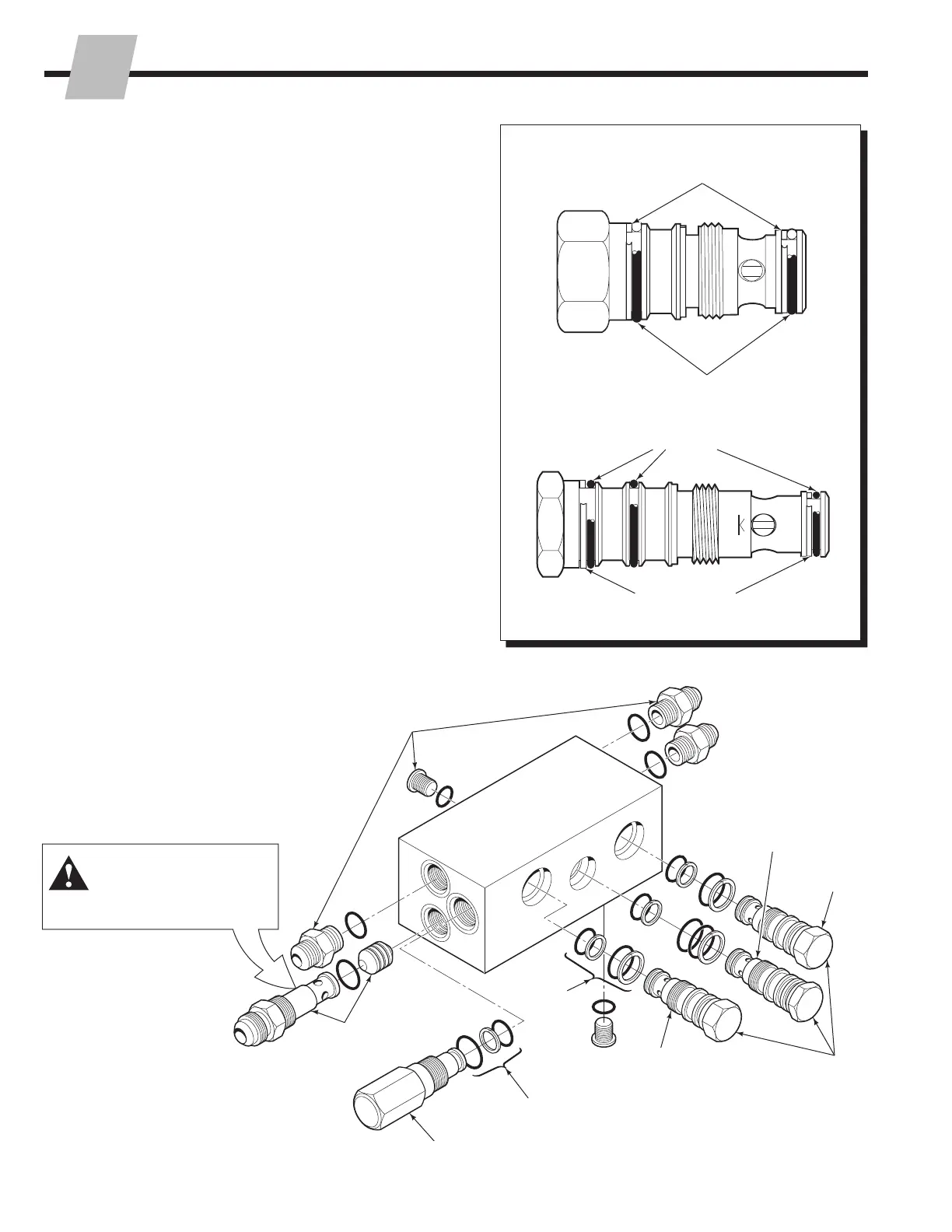

CL1011.eps
Sideshift Cartridge
Clamp Cartridge
O-Ring
O-Ring
Back-Up Ring
Back-Up Ring
OP
CL
CL4422.eps
WARNING: The special fitting
must be reinstalled to the clamp
(CL) port. The clamp arms will
not function properly without the
special fitting installed.
3
2
1
1
4
4
Clamp
Cartridge
Valve
Sideshift Right
Cartridge Valve
Sideshift Left
Cartridge Valve
40D Turnafork
Pressure Relief
Valve
CL01429.eps
CL1429.eps
