Hardware Installation Guide for Cisco 4000 Series Integrated Services Routers
OL-32185-02
Chapter 5 Install and Upgrade Internal Modules and FRUs
Overview of NIM-HDD Card
• On-board Quack2 for module authentication
• Power and reset
• Firmware upgrade
Note The removal of a drive during active read-write operation is not supported. Ensure that the drive is shut
down before you replace the NIM-HDD.
Figure 5-16 shows the HDD card that can be inserted into the NIM chassis shown in Figure 5-17.
Figure 5-18 shows the entire Cisco NIM-HDD.

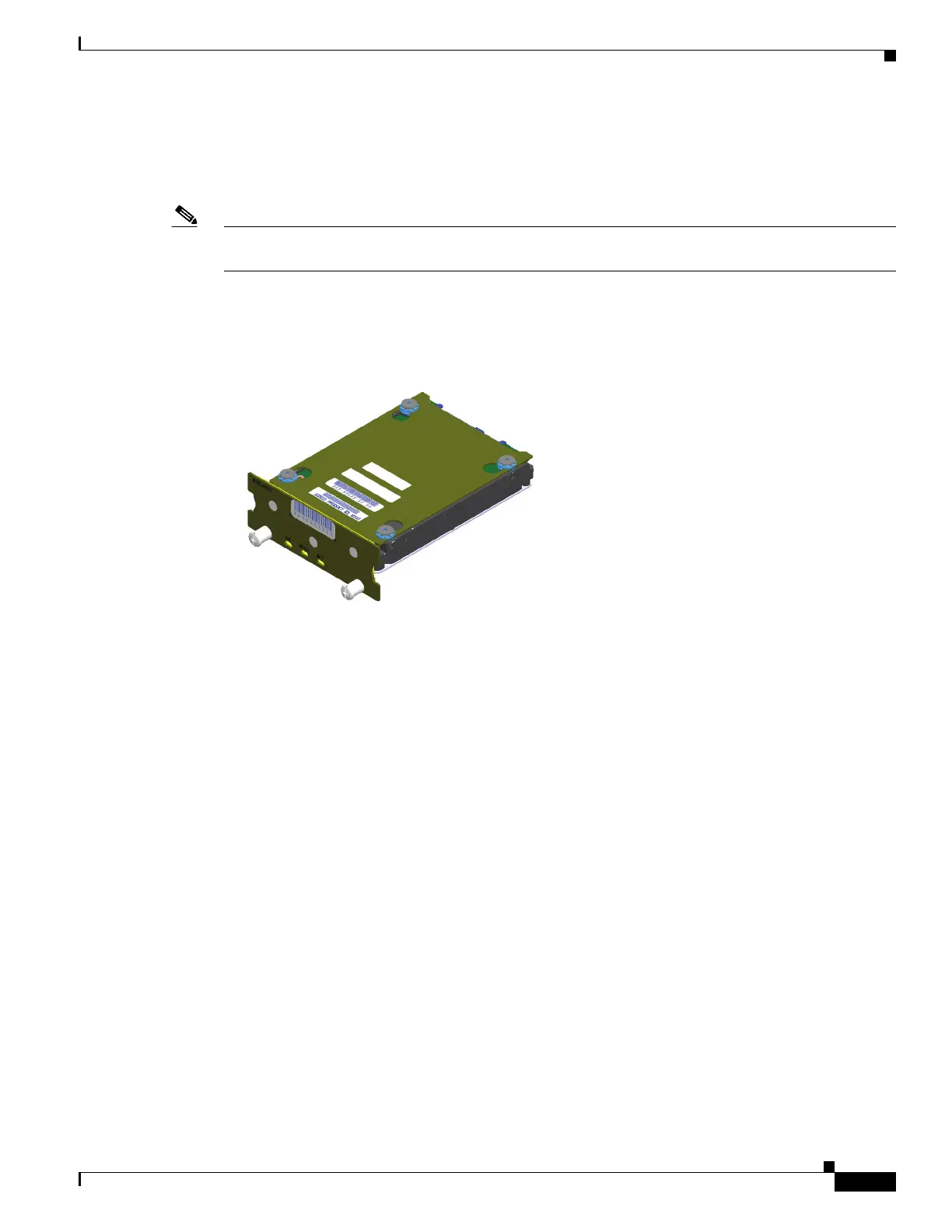

Figure 5-16 HDD Card
Figure 5-17 NIM Chassis for the HDD
390923
