Cisco 5510 - ASA SSL / IPsec VPN Edition Getting Started Guide

Chapter 9 Scenario: IPsec Remote-Access VPN Configuration
Implementing the IPsec Remote-Access VPN Scenario
9-10
Cisco ASA 5500 Series Getting Started Guide
78-19186-01
Configuring Address Pools
For remote clients to gain access to your network, you must configure a pool of
IP addresses that can be assigned to remote VPN clients as they are successfully
connected. In this scenario, the pool is configured to use the range of IP addresses
209.165.201.1–209.165.201.20.
In Step 6 of the VPN Wizard, perform the following steps:

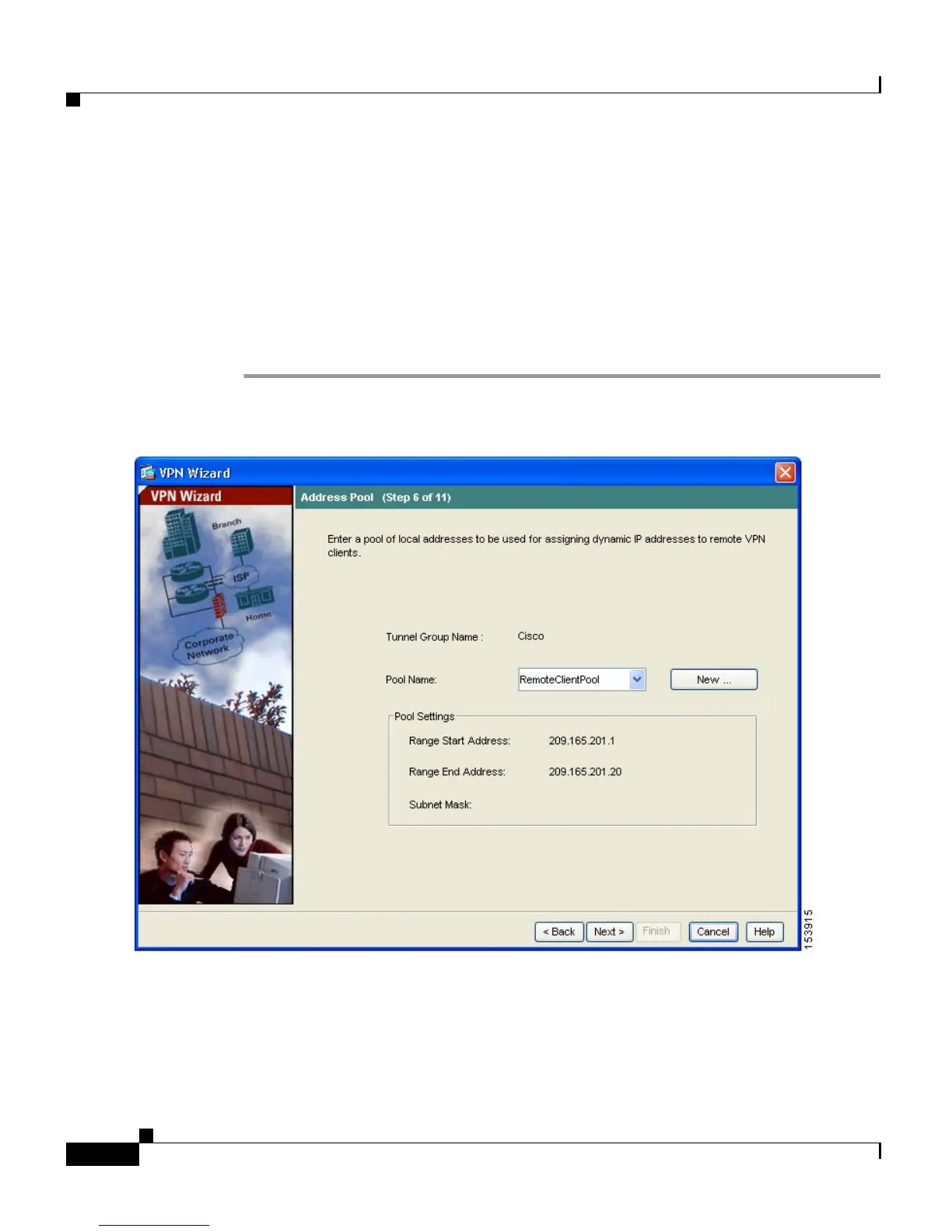

Step 1 Enter a pool name or choose a preconfigured pool from the Pool Name drop-down
list.
Alternatively, click New to create a new address pool.
The Add IP Pool dialog box appears.

Cisco 5510 - ASA SSL / IPsec VPN Edition Specifications

General

Brand	Cisco
Model	5510 - ASA SSL / IPsec VPN Edition
Category	Firewall
Language	English
