Cisco 5510 - ASA SSL / IPsec VPN Edition Getting Started Guide

Chapter 6 Connecting Interface Cables on the ASA 5500, ASA 5510, ASA 5520, and ASA 5540 Platforms
Connecting to SSMs
6-4
Cisco ASA 5500 Series Getting Started Guide
78-19186-01
Set up the terminal as follows: 9600 baud (default), 8 data bits, no parity, 1 stop
bits, and Flow Control (FC) = Hardware.
b. Locate the serial console cable, which has an RJ-45 connector on one end and
a DB-9 connector on the other end for the serial port on your computer.
c. Connect the RJ-45 connector to the Console port of the adaptive security
appliance as shown in
Figure 6-2.
d. Connect the DB-9 connector to the console port on your computer.

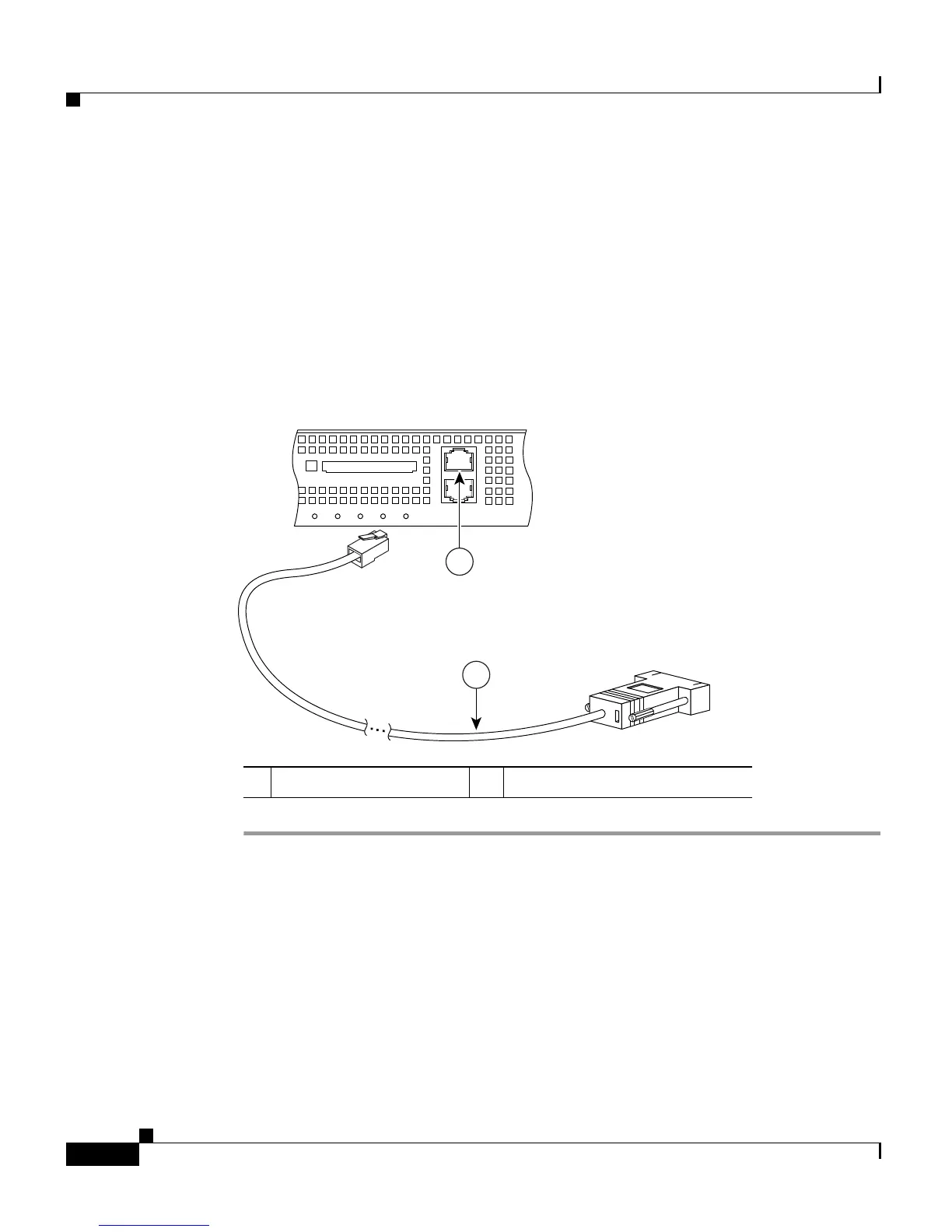

Figure 6-2 Connecting the Console Cable
Connecting to SSMs
SSMs are optional; this procedure is necessary only if you have installed an SSM
on the adaptive security appliance.
1 RJ-45 Console port 2 RJ-45 to DB-9 console cable
126982
FLASH
CONSOLE
AUX
POWER
STATUS
FLASH
VPN
ACTIVE
2
1
