Cisco ASA 5512-X Configuration Guide

10-17
Cisco ASA Series Firewall CLI Configuration Guide
Chapter 10 NAT Examples and Reference
NAT for VPN

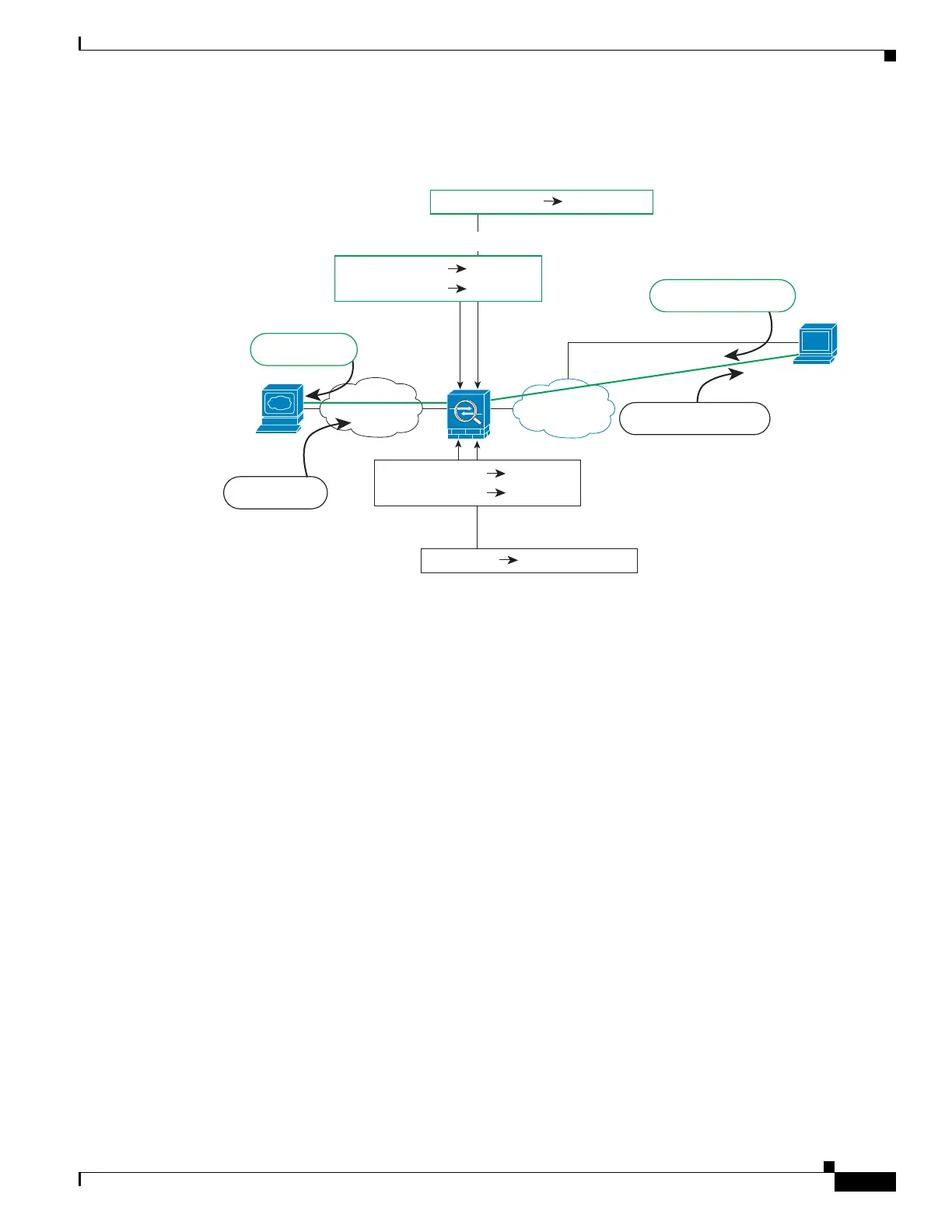

Figure 10-14 Identity NAT for VPN Clients
See the following sample NAT configuration for the above network:
! Enable hairpin for non-split-tunneled VPN client traffic:
same-security-traffic permit intra-interface
! Identify local VPN network, & perform object interface PAT when going to Internet:
object network vpn_local
subnet 10.3.3.0 255.255.255.0
nat (outside,outside) dynamic interface
! Identify inside network, & perform object interface PAT when going to Internet:
object network inside_nw
subnet 10.1.1.0 255.255.255.0
nat (inside,outside) dynamic interface
! Use twice NAT to pass traffic between the inside network and the VPN client without
! address translation (identity NAT):
nat (inside,outside) source static inside_nw inside_nw destination static vpn_local
vpn_local
NAT and Site-to-Site VPN
The following figure shows a site-to-site tunnel connecting the Boulder and San Jose offices. For traffic
that you want to go to the Internet (for example from 10.1.1.6 in Boulder to www.example.com), you
need a public IP address provided by NAT to access the Internet. The below example uses interface PAT
rules. However, for traffic that you want to go over the VPN tunnel (for example from 10.1.1.6 in Boulder
to 10.2.2.78 in San Jose), you do not want to perform NAT; you need to exempt that traffic by creating
an identity NAT rule. Identity NAT simply translates an address to the same address.
VPN Client
209.165.201.10
Internet
10.1.1.6
Inside
1. SMTP request to 10.1.1.6
4. SMTP request to 10.1.1.6
2. ASA decrypts packet; src address is
now local address
10.3.3.10 209.165.201.10
7. ASA encrypts packet; dst address is now real address
Dst: 10.3.3.10
5. SMTP response to
VPN Client
Src: 10.3.3.10
Src: 209.165.201.10
8. SMTP response to
VPN Client
Dst: 209.165.201.10
6. Identity NAT
10.3.3.10
3. Identity NAT between inside and VPN Client NWs
Src: 10.3.3.10
10.1.1.6
Dst: 10.1.1.6
10.3.3.10
Dst: 10.3.3.10
10.1.1.6
Src: 10.1.1.6
10.3.3.10209.165.201.10
303463
