--Fan tray assembly, with the adapter intact and
ready for installation from the rear
1
Step 2 Proceed with removing the fan tray from the chassis. Loosen the two captive installation screws on the rear
panel of the fan tray.

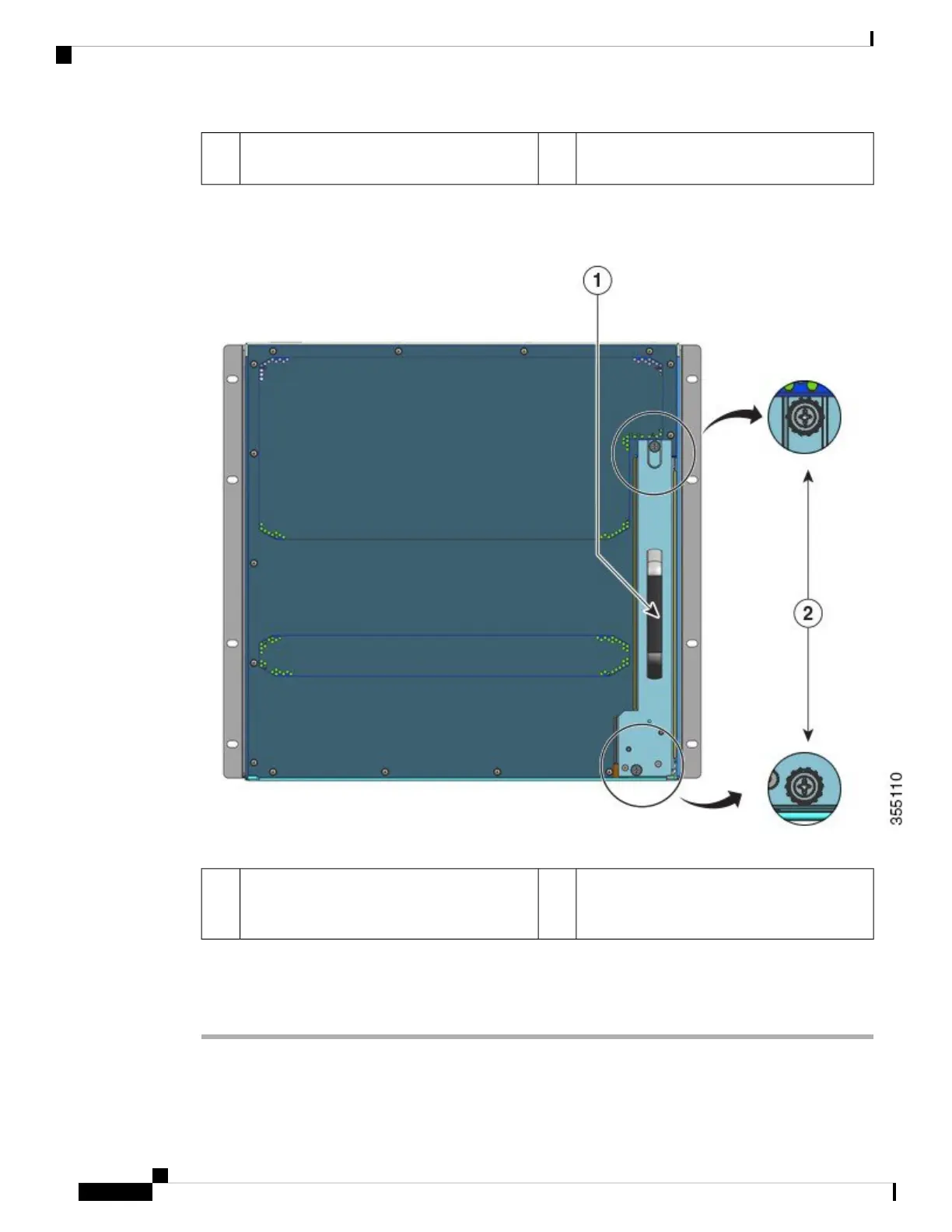

Captive installation screws on the rear panel
that have to be loosened to uninstall the fan tray
assembly from the rear.
2Rear fan tray handle1
Step 3 Grasp the fan tray handle and slide the fan tray assembly half-way out of the bay.
Step 4 Wait for the fan blades to stop spinning; place your other hand underneath to support the bottom of the fan
tray and then remove the fan tray assembly completely.
Cisco Catalyst 9400 Series Switches Hardware Installation Guide
86
Removing and Replacing FRUs
Removing the Fan Tray from the Rear
