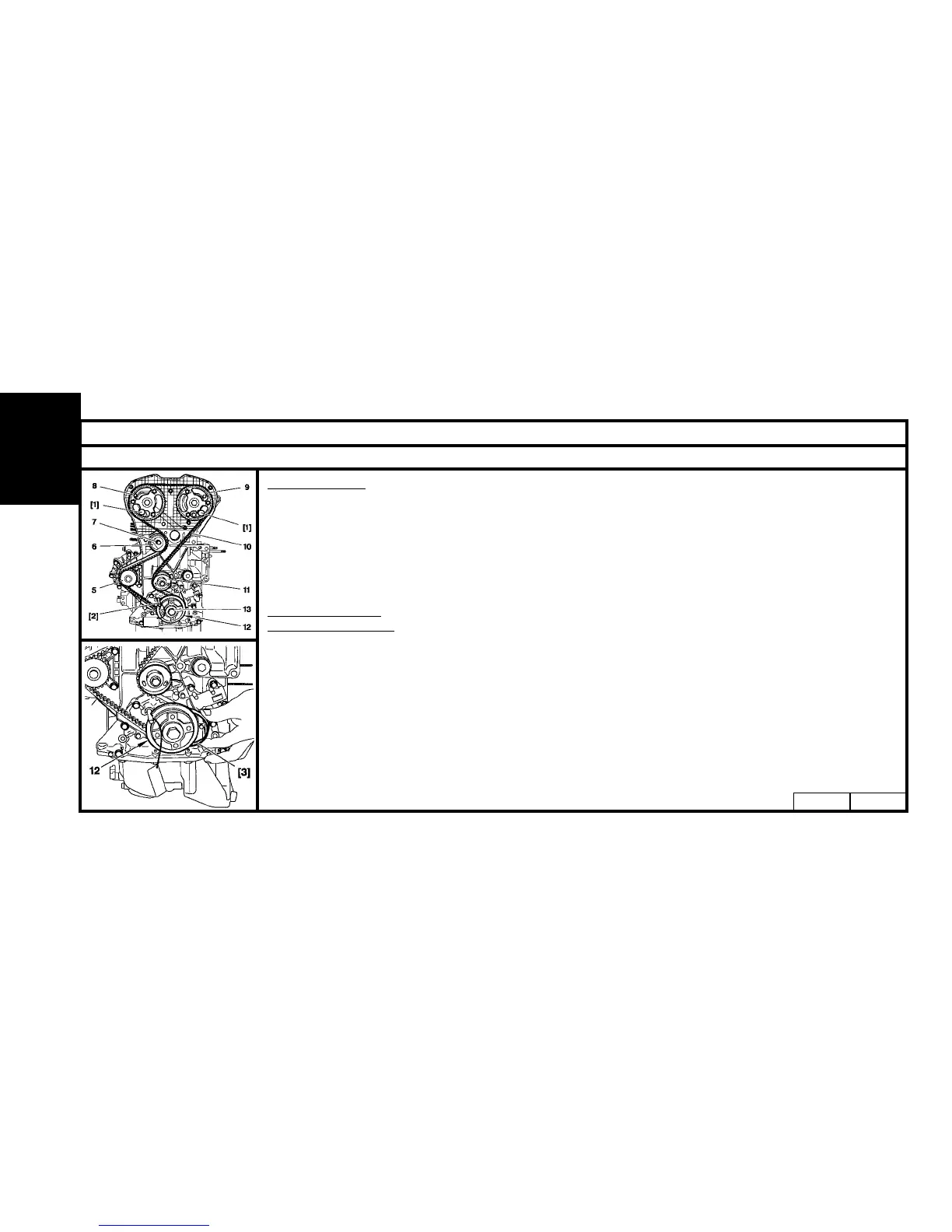

ENGINE
Refit (continued)
- Refit the belt (10) on the pinion (12).
- Hold the belt (10) with tool [3].
- Position the belt (10) in the following order :
- The guide roller (11), the inlet camshaft pinion (9), the exhaust camshaft pinion (8), the water pump (5), the
tensioner roller (6).
NOTE : Make sure that the belt (10) is as flush as possilble with the outer face of the various pinions and rollers.
-Remove the tools [3] and [1].
T
iming belt tension
Adjusting the tension
- Turn the roller (6) in the direction of the arrow "b"; using an Allen key at "a".
-Position the index "c" in its maximum setting at "d".
IMPERATIVE : The index "c" must stand proud of the notch "f" by an angular value of 10°. If it does not,
replace the tensioner roller (6) or the timing belt and the tensioner roller (6).
- Bring the index "c" to its adjusting position "f" by turning the tensioner roller (6) in the direction of the
arrow "e";
WARNING: The index "c" must not stand proud of the notch "f" : if it does, restart the timing belt tensioning operation;
IMPERATIVE : The tensioner roller (6) must not turn while its fixing is being tightened up. If it does, recom-
mence the adjusting operation.
CHECKING AND SETTING THE VALVE TIMING
Engines : 6FZ - RFN
