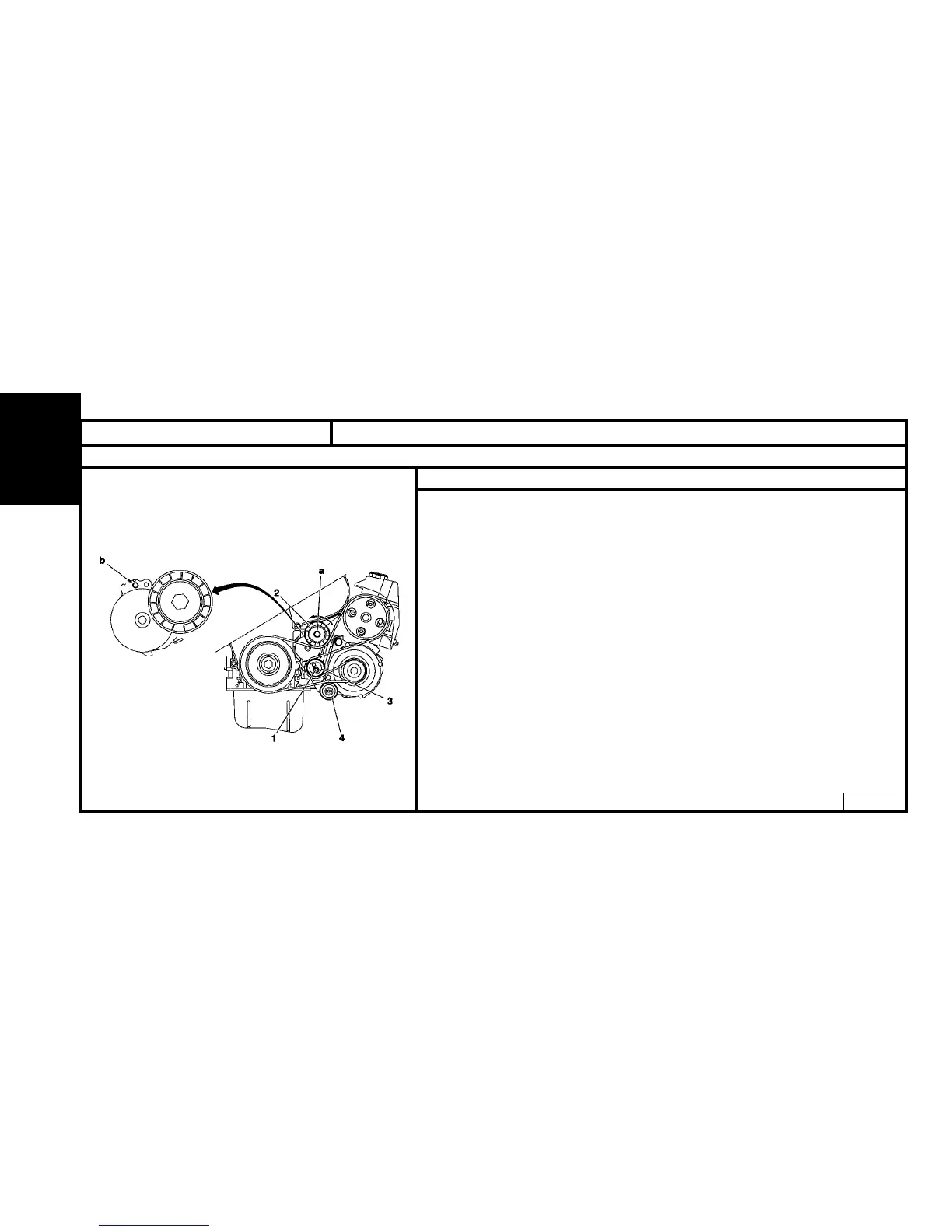

XSARA - XSARA PICASSO AUXILIARY EQUIPMENT DRIVE BELT
Engines : RHY - RHZ
Without air conditioning
B1BP1YKD
Tools
[1] Belt tension adjusting square : (-).0188 J2
[2] Ø 4 mm peg : (-).0188.Q1
[3] Ø 2 mm peg : (-).0188.Q2
[4] Levier de compression tendeur dynamique : (-).0188.Z
Removal
Re-use of belt
WARNING : Mark the direction the belt was fiited in case of re-use of the same belt.
- Compress the tensioner roller (2) by action at « a » (in anti-clockwise direction), tool [4].
- Keep the tensioner roller (2) compressed and remove the belt.
No re-use of belt
- Compress the tensioner roller (2) by action at « a » (in anti-clockwise direction), tool [4].
- Peg using tool [2], at « b ».
- Keep the tensioner roller (2) compressed and remove the belt.
- Loosen the screw (1).
