AXLES
SUSPENSION
STEERING
205

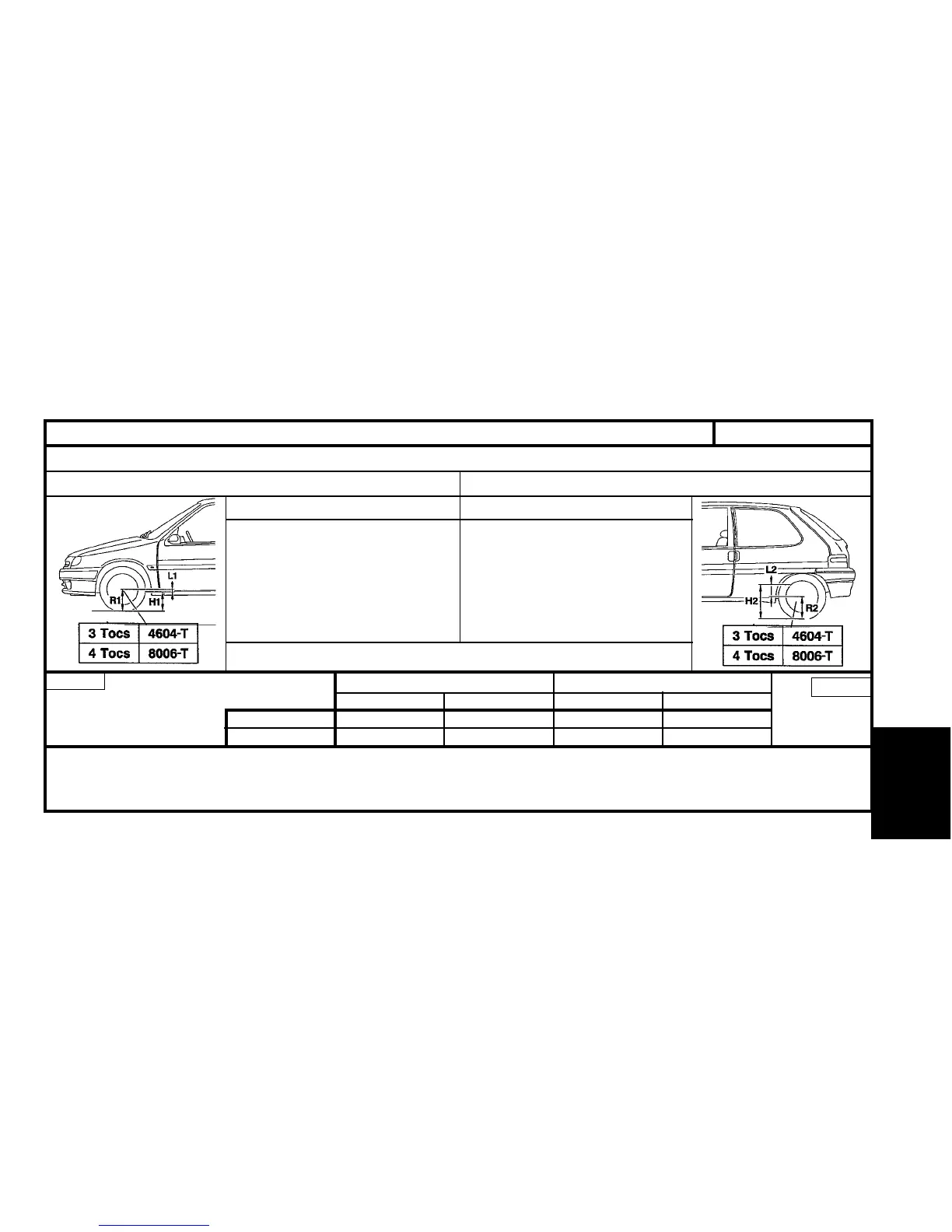

SAXO - All TypesAXLE GEOMETRY
The values L1 and L2 are given in the table below.
Geometry of the axles at reference height.
Rear heightFront height
H1 = Distance between the ground and
the mounting face of the fixings.
R1 = Distance between the centre of
the front wheel and the ground.
L1 = Distance between the centre of the
front wheel and the mounting face of
the fixings.
H2 = Distance between the ground
and the mounting face of the rear
crossmember.
R2 = Distance between the centre of
the rear wheel and the ground.
L2 = Distance between the centre of the
rear wheel and the rear crossmember.
C4CP0N2C
H1 = R1 – L1 H2 = R2 + L2
Normal suspension Raised suspension
Rear axle Front axle Rear axleFront axle
L1Dimension L2 L1 L2
71 ± 10 mmValue (mm) 53 ± 6 mm 36 ± 10 mm 82 ± 6 mm
Measure the dimension R1. Calculate the dimension H1 = R1 - L1.
Measure the dimension R2. Calculate the dimension H2 = R2 + L2
Compress the suspension until the calculated values «H1» and «H2» are obtained.
NOTE : The difference in height between the two sides at the rear should be less than 7.5 mm.
C4CP0N3C
