AXLES
SUSPENSION
STEERING
Front axle Rear axle
AXLE GEOMETRY

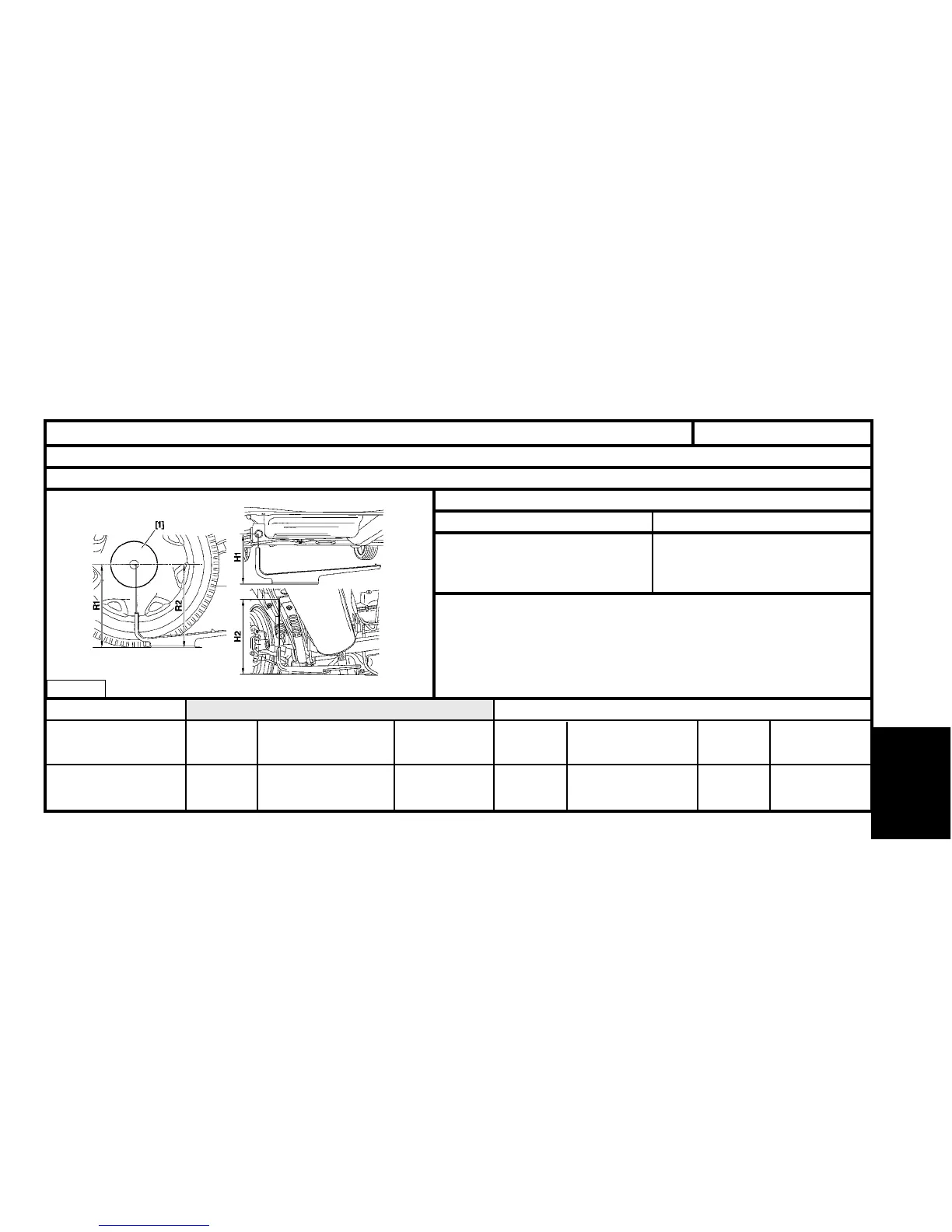

Reference heights
Tools [1] Gauge for measuring the radius of wheels with 4 bolts : 8006-T
Setting the reference height.
RearFront
Measure the dimension «R1».
Calculate the dim. H1 = R1 - L1.
Measure the dimension «R2».
Calculate the dim. H2 = R2 + L2.
Compress the suspension until the values (H1) and (H2) are obtained.
NOTE : The difference in height between the two sides should be less than 10 mm.
XSARA - All Types
Reference heights
(in mm)
115.5
90.5
75.5 73
83
88 103
Engines
2.0i 16V
(RFS)
All engines
(except 2.0i 16V
and CRD)
All CRD
engines
2.0i 16V
(RFS)
All saloons
(except 2.0i 16V
and CRD)
Estate
All CRD
engines
B3CP04AD
