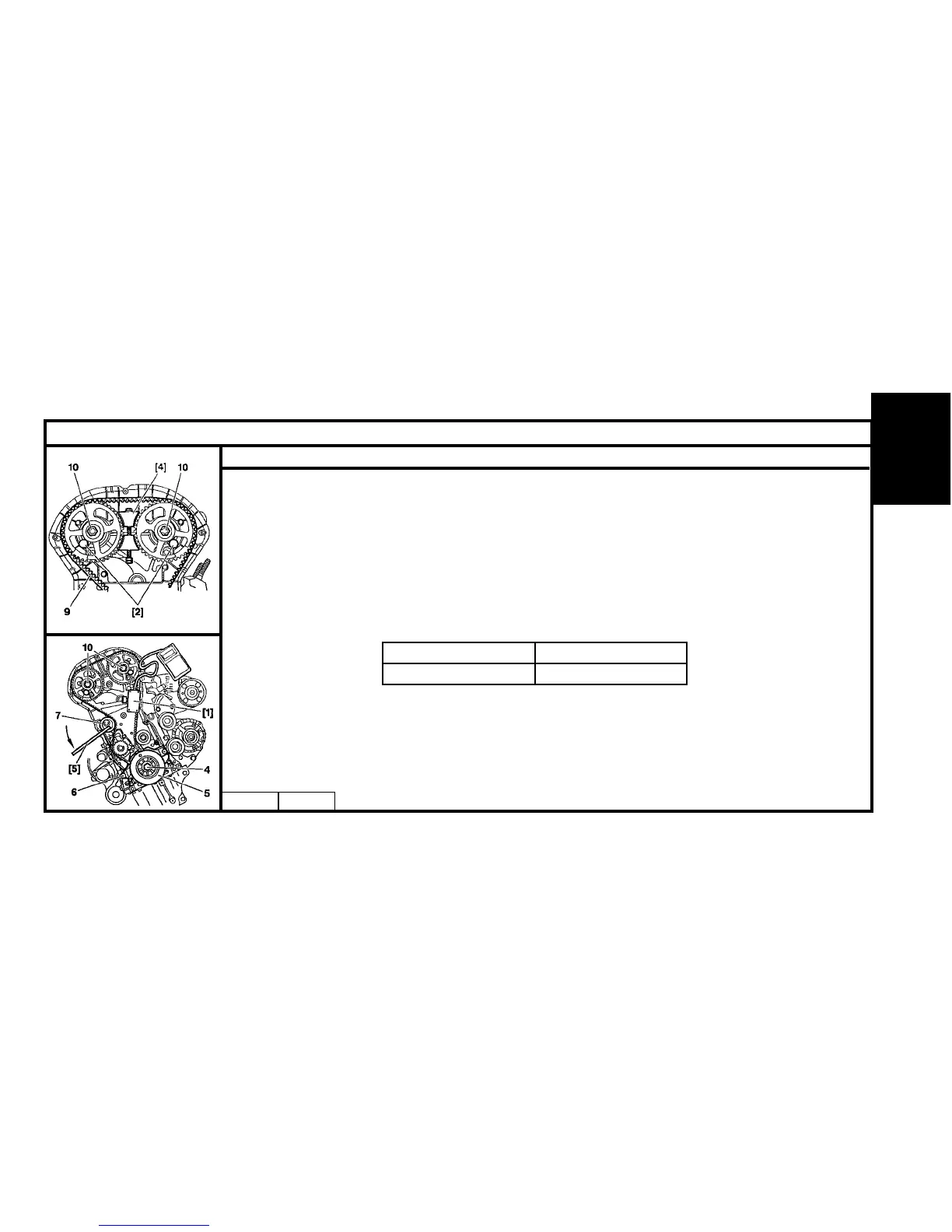

CHECKING AND SETTING THE VALVE TIMING
Engine : RFS
Pretensioning the timing belt.
- Peg the crankshaft using the tool [3].
- Peg the camshaft pulleys using the tool [2].
NOTE : Ensure that the camshaft pulleys rotate freely on the hubs. Clean the contact faces of the pulleys and
hubs.
- Turn the camshaft pulleys in a clockwise direction to bring them to the end of the slots.
- Fit the belt (9)
- Fit the tool [1].
- Turn the roller (7) using the tool [5].
- Pre-tension to : (Pulleys slackened).
- Tighten the screws of the roller (7) to 2 m.daN.
- Fit the tool [4].
- Tighten the screws (10) to 4 m.daN.
- Remove the tools.
- Rotate the crankshaft by six turns (Normal direction of rotation).
B1EP121CB1EP12OC
Engine
New belt
RFS
55 SEEM units
