CITROEN 2002 BERLINGO User Manual

86
ENGINE
TOOLS
- [1] Flywheel locating peg : 4507-T.A
-
[2] Camshaft pulley locating peg : 4507-T.B
- [3] Square drive : 4507-T.J
- [4] Belt tension measuring instrument : 4122-T
- [5] Rocker plate : 4533-T.Z

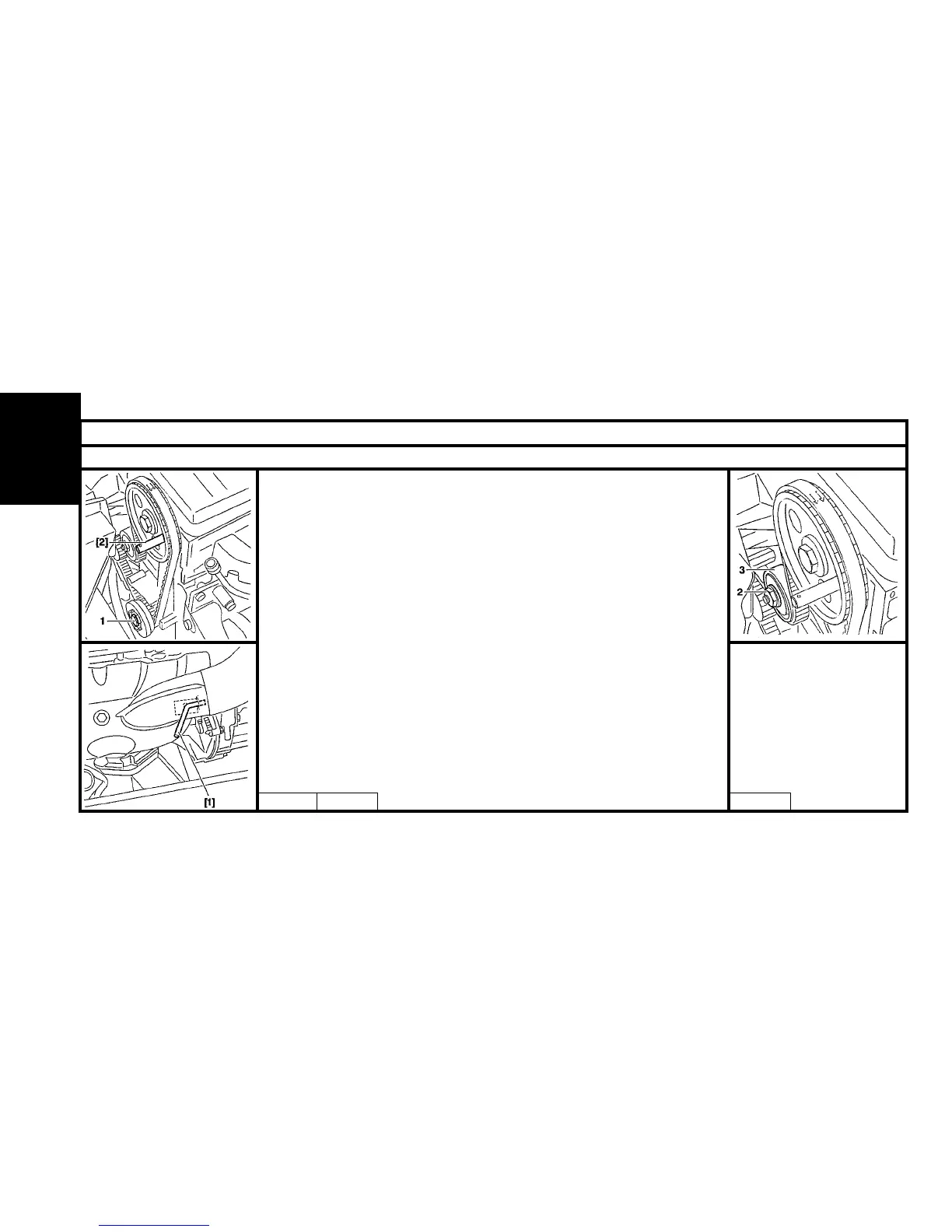

CHECKING THE VALVE TIMING
- Peg the flywheel using the tool [1].
- Peg the camshaft pulley using the tool [2].
SETTING THE VALVE TIMING
NOTE : Remove the spark plugs, to allow the crankshaft to rotate more freely.
- Rotate the engine by the crankshaft screw (1).
- Peg the camshaft gearwheel.
- Peg the flywheel.
- Loosen the nut (2).
- Totally slacken the belt by moving the tensioner roller.
- Remove the belt.
ESSENTIAL : Check that the tensioner roller rotates freely (no stiffness).
CHECKING AND SETTING THE VALVE TIMING
Engines : HDZ - HFX - KFW - KFX - NFT - NFV

Tool kit 4507-T
B1EP067C B1EP066C B1EP0668C
