189

CLUTCH

GEARBOX

DRIVESHAFTS

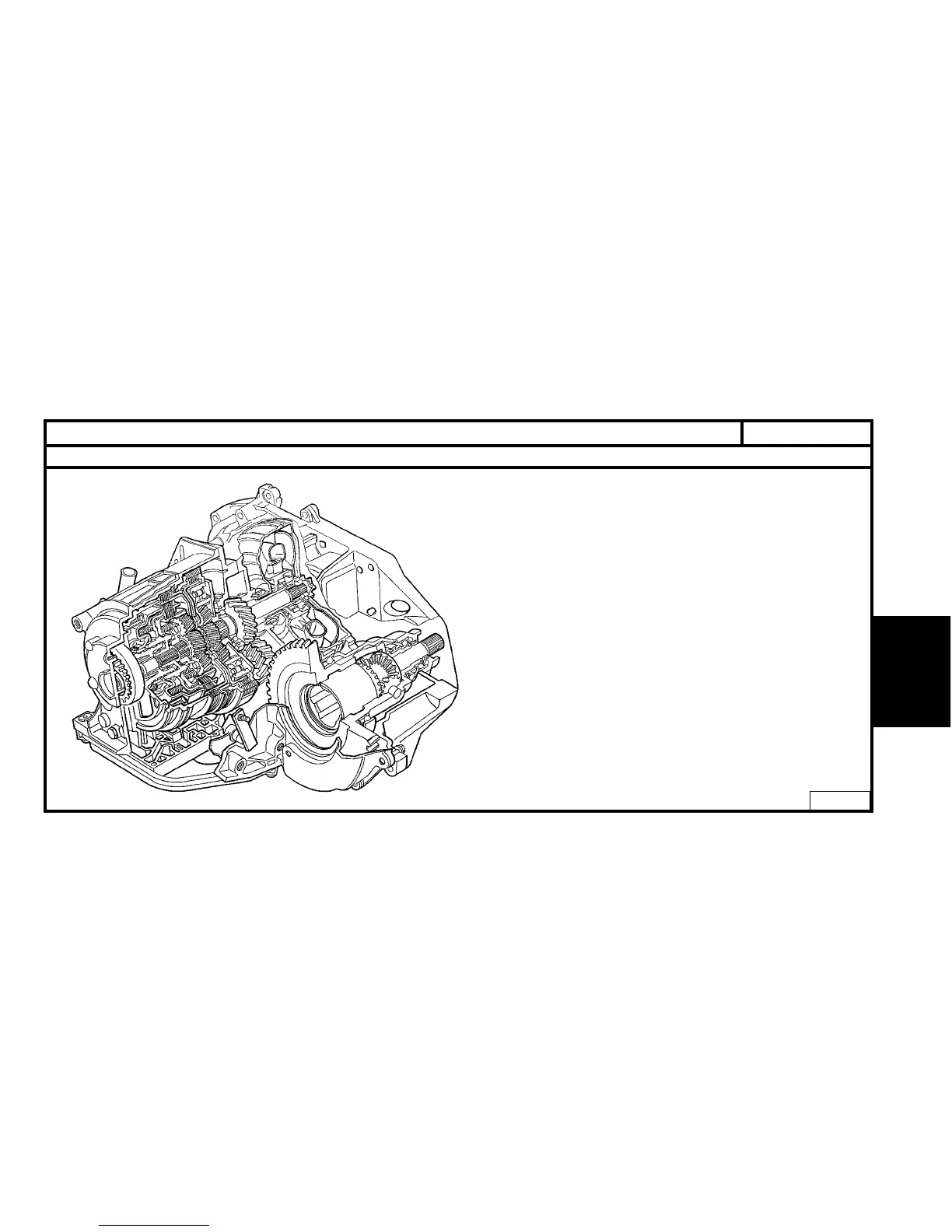

AUTOMATIC GEARBOX - MB3

Engine : KFW

SAXO

B2CP14ZP

Tightening torques m.daN.

- Gearbox to engine fixing 3.5

- Converter to engine fixing 2.5

- Converter closing plate fixing

M8 1.6

M10 2.6

- Electrical bracket fixing 6.5

- Flexible mounting to gearbox fixing 8.5

- Speedometer drive 1

- Heat exchanger fixing 5

NOTE : When fitting a new automatic gearbox, it is

ESSENTIAL that the heat exchanger and the oil be

replaced.
