CLUTCH
GEARBOX
DRIVESHAFTS

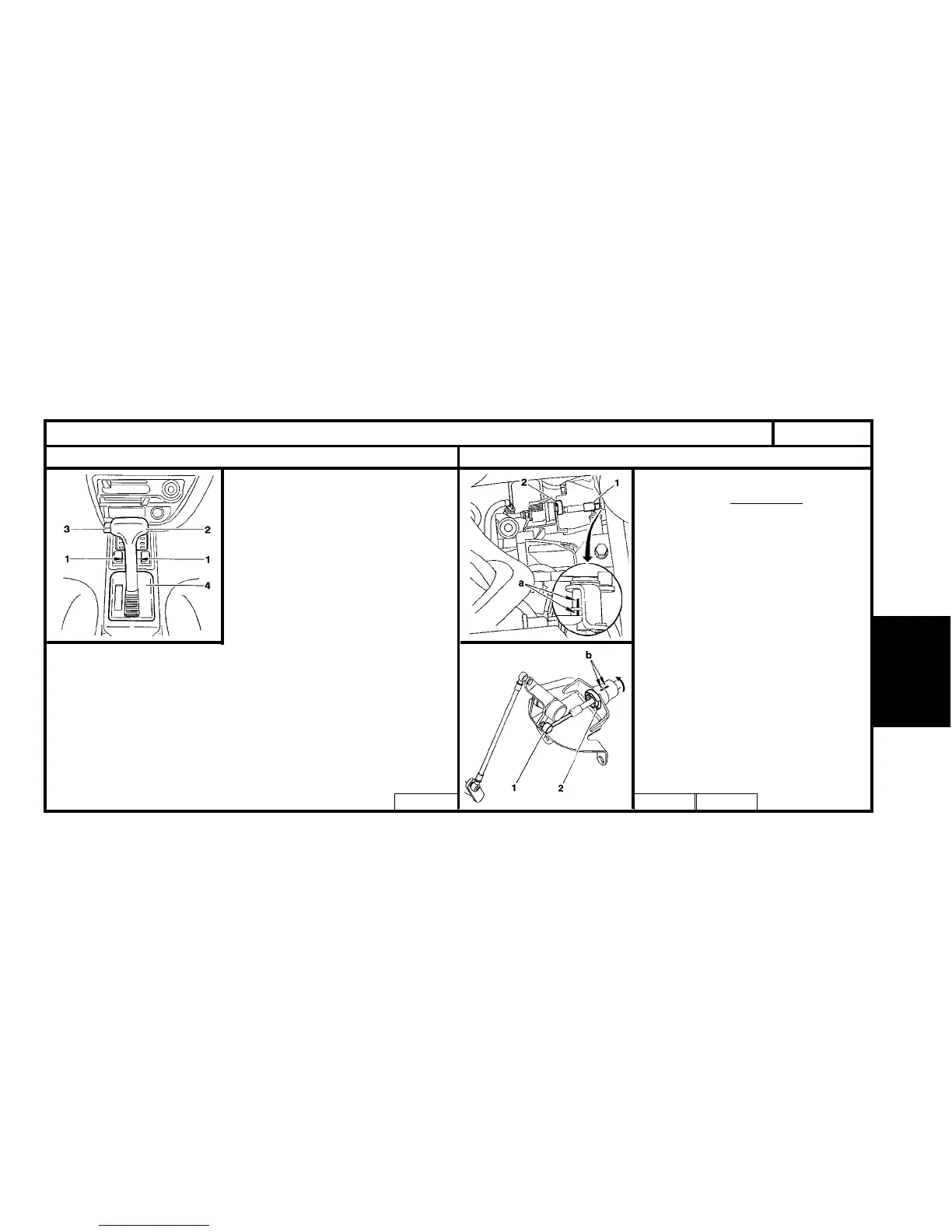

MB3 AUTOMATIC GEARBOX CONTROLS - CHECKS AND ADJUSTMENTS
Selection control Adjusting the selection control
- Turn forwards by 1/4 turn, remove the gear lever knob (2).
Refitting the gear lever knob
- Press and hold down the locking button (3).
- Fit the knob (2) on the lever until it touches its stop (in the direction
shown in the diagram).
- Release the locking button (3).
- Turn forwards by 1/4 turn.
- Refit the screws (1).
ESSENTIAL : Check the passage of all the gears, otherwise adjust
the selection control.
WARNING: No part must be forced
while performing these operations
(careful removal).
Removing the gear lever knob.
- Remove the screws (1).
- Lift the lever knob (2) by about 10 mm.
- Turn backwards by 1/4 turn, and
raise by approximately 7 mm.
- Press and hold down the locking
button (3).
ESSENTIAL : Put the gearbox side
control in the 1st imposed position;
the 2 markings "a" must be aligned.
- Fit the ball joint (1).
- Fit the lug (2).
- Lock the outer cable stop by 1/4 turn
(in the direction of the arrow).
- Check that the painted markings "b"
are aligned.
B2CP18YC B2CP18WC B2CP18XC
