CITROEN 2002 BERLINGO User Manual

78
ENGINE
XSARA
AUXILIARY EQUIPMENT DRIVE BELT
Power-assisted steering, with air conditioning
Tools :
[1] Dynamic tensioner peg (-) 0188 H.
[2] Belt tension measuring instrument 4122-T.
Removal.

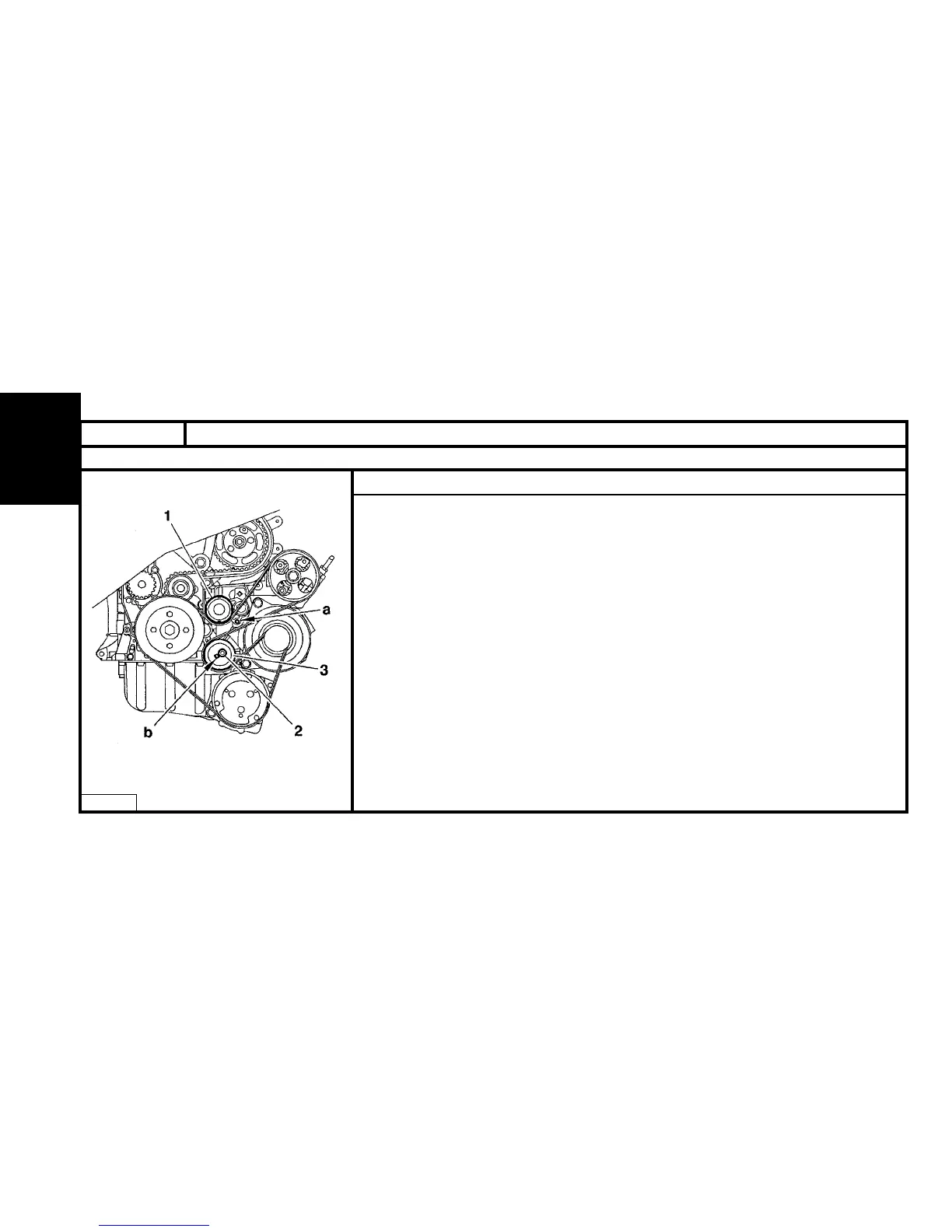

- Peg the dynamic tensioner (1) at "a", using tool [1].
- Loosen the screw (2) of the roller (3).
- Turn the roller (3) backwards.
- Remove the belt.
NOTE : If it can not be pegged at "a" :
- Loosen the screw (2) of the roller (3).
- Using a 7 mm square drive, turn the roller (3) at "b".
- Peg the tensioner (1) at "a", using tool [1].
NOTE : If the belt is broken :
- Support the engine using a jack (insert a wooden block between the housing and the jack).
- Remove the right engine support.
- Using a square drive at (b) turn the tool (3) in the direction of the arrow "a", so that it can be
pegged at "a" using the tool [1].
B1BP1SKC
Engines : WJZ - WJY
