Operating procedure for replacing a
faulty fuse with a new fuse to rectify a
failure of the corresponding function.
The 2 fuseboxes are located below
the dashboard and under the bonnet.
Replacing a fuse
Before replacing a fuse, you should
ascertain the cause of the fault and
have it remedied. The numbers of
the fuses are indicated on the fuse-
box.
Replace the fuse that has blown
with one of the same rating (same
colour).
Use the special pliers 1 placed on
the fl ap close to the fuseboxes. The
fl ap also has spare fuses available.
Good Bad
Pliers 1

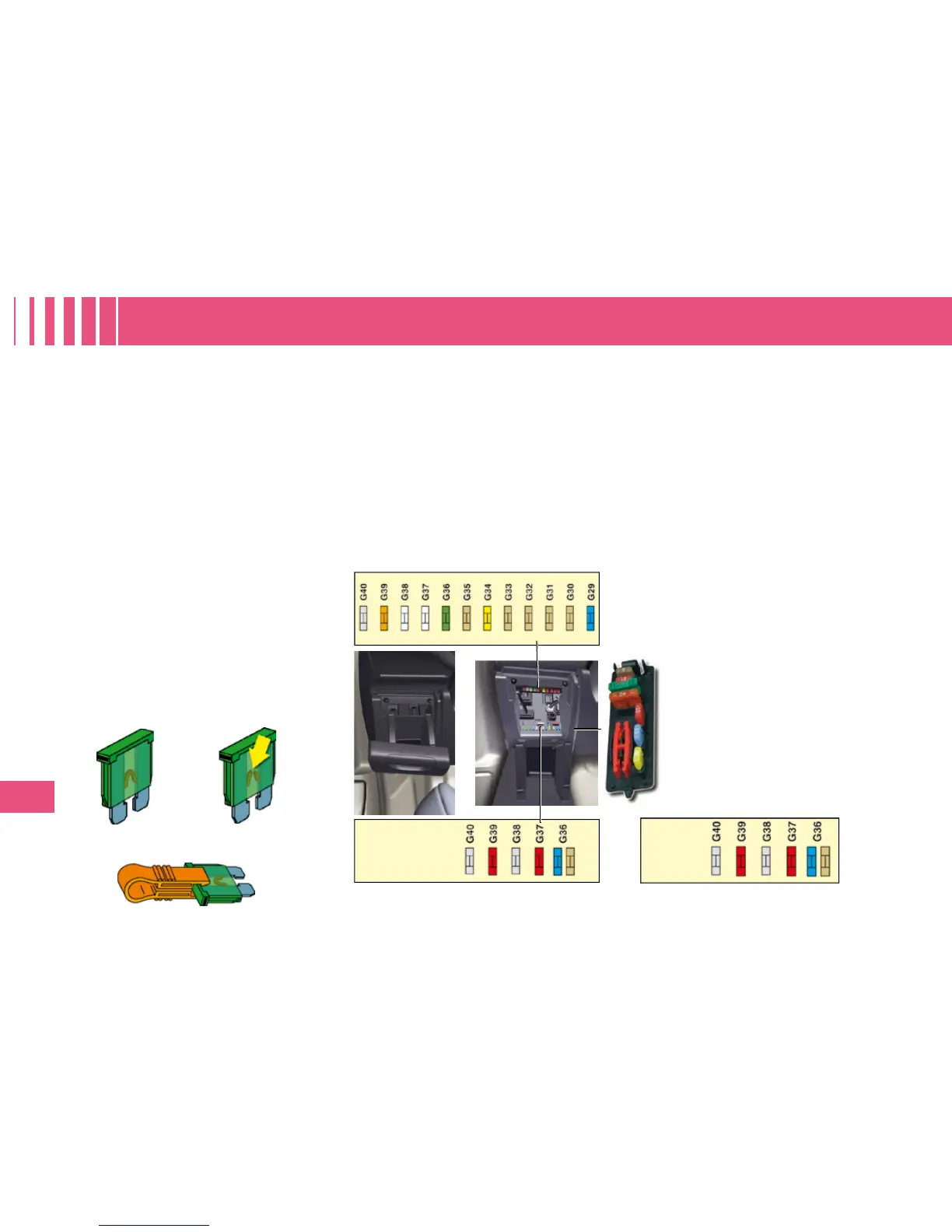

Fuses under the dashboard
Access to the fuses
open the storage box to its stop-
ping point then pull fi rmly on it
horizontally,
remove the trim by pulling sharp-
ly on the bottom.
Fusebox C
Fusebox A
Replacement
fuses and
pliers 1
When refi tting the storage box, ob-
serve the following advice:
- With the storage box horizontal,
refi t the bottom ensuring that the
lower cut-outs are in line with the
pins.
- Give a sharp push to the front.
- Close the storage box, ensuring
that the springs located behind
pass over the top.
Fusebox B
