Clevo C4505 User Manual

1 - 12 System Map: Bottom View
Quick Start Guide
1

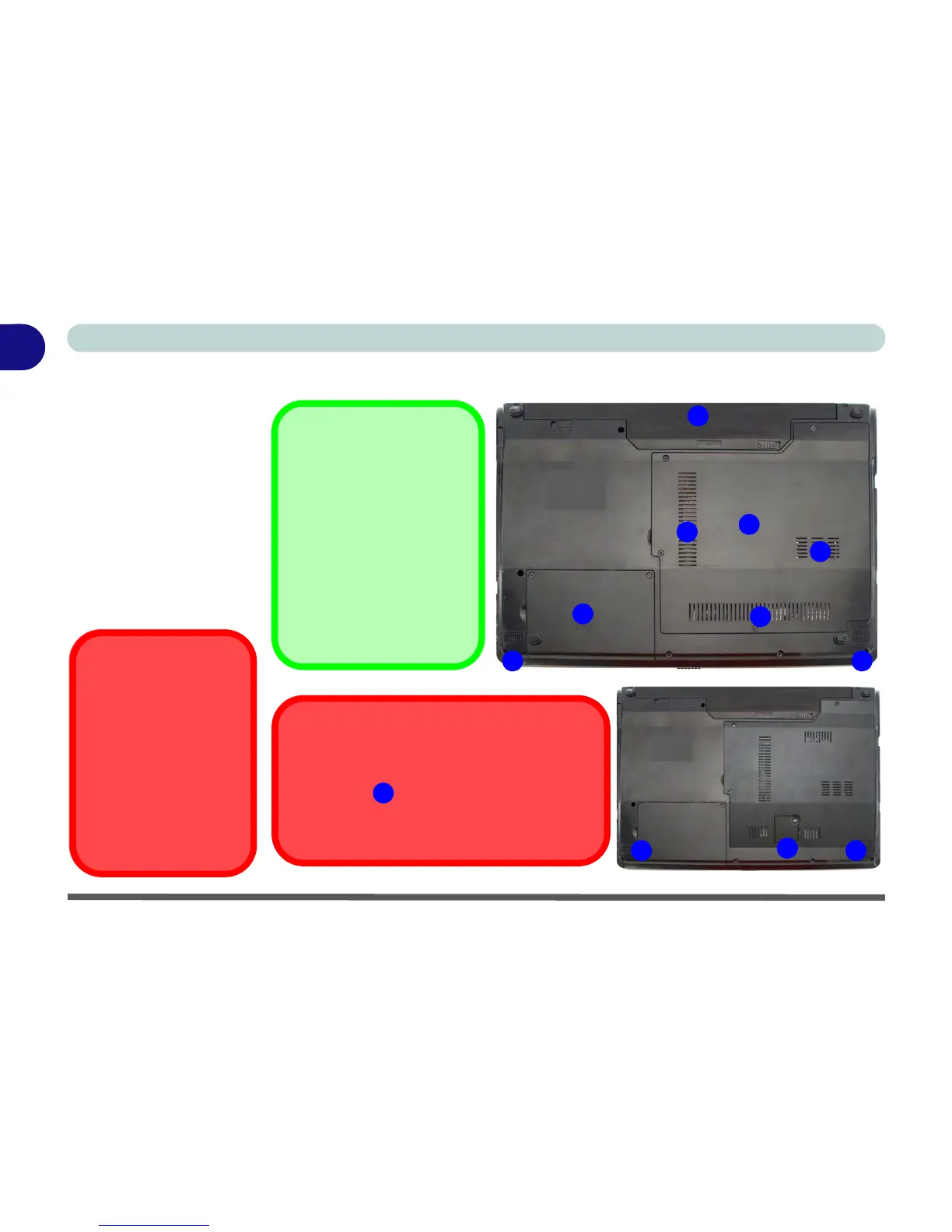

System Map: Bottom View
Figure 1 - 6
Bottom View
1. Battery
2. Component Bay
Cover
3. Vent/Fan Intake/
Outlet
4. Hard Disk Bay
Cover
5. 3.75G USIM Card
Cover (Optional)
6. Speakers

CPU
The CPU is not a user
serviceable part.
Overheating
To prevent your comput-
er from overheating
make sure nothing blocks
the Vent/Fan Intake while
the computer is in use.
2
3
1
4
3
3

Battery Information
Always completely dis-
charge, then fully charge, a
new battery before using it.
Completely discharge and
charge the battery at least
once every 30 days or after
about 20 partial discharges.
See “Battery” on page 3 -
2 for full instructions.

Bottom Covers
If your model includes the 3.75G option then a
small cover to enable you to access the
module’s USIM card will be included (see
“3.75G/HSPA Module” on page 7 - 15).
5
5
6 6
6
6
