Control
To access to the alarm log, go to the main screen, press the ON/OFF/ALARM button briefly twice. From the list of current alarms
simply press the button once.

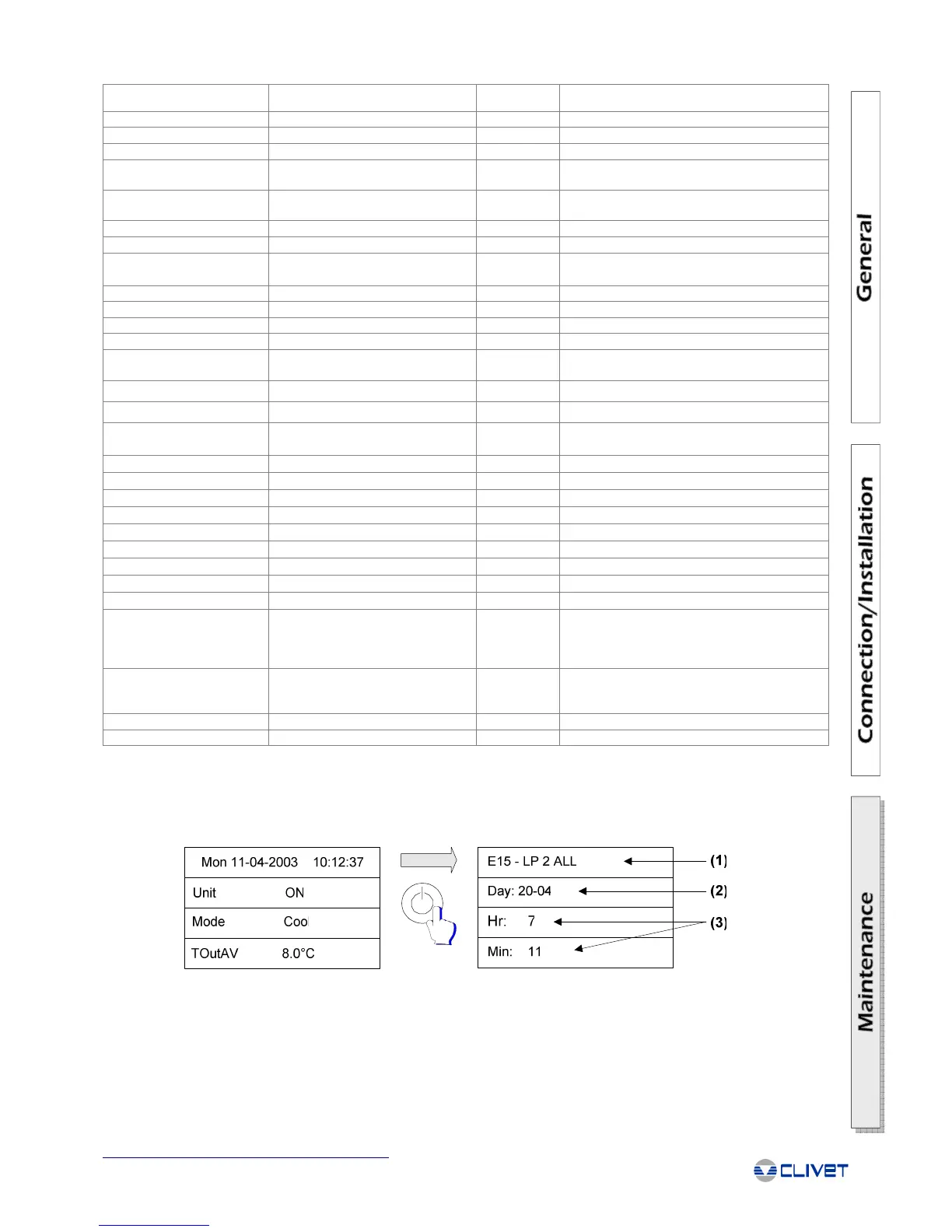

The figure shows the alarm display screen.
ALARMS
1. TYPE OF ALARM
2. DATE OF THE EVENT
3. TIME OF THE EVENT
ALARM LOG
TYPE OF ALARM
DISPLAYED
ALARM DESCRIPTION RESET ACTION
E1 - BT1 ALL Probe BT1 alarm Automatic Signal
E2 - BT2 ALL Probe BT2 alarm Automatic Complete shutdown – Pump on
E3 - BT3 ALL Probe BT3 alarm Automatic Complete shutdown – Pump on
E4 - BT4 ALL Probe BT4 alarm Automatic Cooling = Signal
Heating = Shutdown circuit 1
E5 - BT5 ALL Probe BT5 alarm Automatic Cooling = Signal
Heating = Shutdown circuit 2
E6 - BP1 ALL Transducer BP1 alarm Automatic Shutdown circuit 1
E7 - BP2 ALL Transducer BP2 alarm Automatic Shutdown circuit2
E8 - TExt ALL Outside air probe alarm Automatic Inhibits the associated functions; sets a
defrost start time = TimeInDFR
E9 - WR ALL Water Reset probe alarm Automatic Inhibits WR compensation
E10 - URex ALL Relative humidity probe alarm Automatic Inhibits the associated functions
E11 - HP 1 ALL High pressure alarm, circuit 1 Manual Shutdown circuit 1
E12 - LP 1 ALL Low pressure alarm, circuit 1 Automatic Shutdown circuit 1
E13 - FAN 1 ALL Fan alarm circuit 1 Manual VentilType = 1 Shutdown circuit 1
VentilType = 0 Complete shutdown – Pump on
E14 - HP 2 ALL High pressure alarm, circuit 2 Manual Shutdown circuit 2
E15 - LP 2 ALL Low pressure alarm, circuit 2 Automatic Shutdown circuit 2
E16 - FAN 2 ALL Fan alarm circuit 2 Manual VentilType = 1 Shutdown circuit 2
VentilType = 0 Complete shutdown – Pump on
E17 - COMP1 ALL Compressor protection alarm 1 Manual Shutdown compressor 1
E18 - COMP2 ALL Compressor protection alarm 2 Manual Shutdown compressor 2
E19 - COMP3 ALL Compressor protection alarm 3 Manual Shutdown compressor 3
E20 - COMP4 ALL Compressor protection alarm 4 Manual Shutdown compressor 4
E21 – PWR ALL Phase monitor alarm Automatic Complete shutdown – Pump on
E22 - FLW ALL Pump flow alarm Automatic Complete shutdown
E23 – H2O ALL Water fill system alarm Manual Complete shutdown
E24 – LWT ALL Antifreeze alarm Manual Complete shutdown – Pump on
E25 – LWT PRE ALL Antifreeze pre-alarm Automatic Disable capacity-control steps (1 at a time)
E26 - HP1 PRE ALL High pressure pre-alarm
(Activation at maximum speed)
Automatic HP1Enabled = 0 Alarm not managed
HP1Enabled = 1 Activates maximum fan speed.
(Acts on the individual circuit, but always
according to the parameter VentilType)
E27 - HP2 PRE ALL High pressure pre-alarm
(Deactivates one tandem compress.)
Automatic HP2Enabled = 0 Alarm not managed
HP2Enabled = 1 Disables 1 compressor in the
tandem circuit (Acts on the individual circuit)
E28 – DMDL ALL Demand Limit alarm Automatic Inhibits the associated functions
E29 – PMP CHNG Change pump Automatic Pump change signal
