InteliLite
NT
– AMF20/25, SW version 2.2, ©ComAp – September 2014 11
IL-NT-AMF-2.2-Reference Guide.pdf
Hint:
Boot jumper programming – In case of interrupted programming or other software failure is possible to
use the boot jumper programing to restore controller to working order. Connect controller to PC, run
LiteEdit and wait until connection bar at bottom turns red. Than run programming process via menu
Controller -> Programming and cloning – Programming. Select correct firmware and confirm dialog.
Than follow instructions in LiteEdit.
Or follow video guide “Boot Jumper Programming“ at http://www.comap.cz/support/training/training-
videos/.
- Please see chapter IL-NT RS232 interface (optional card) for technical details.

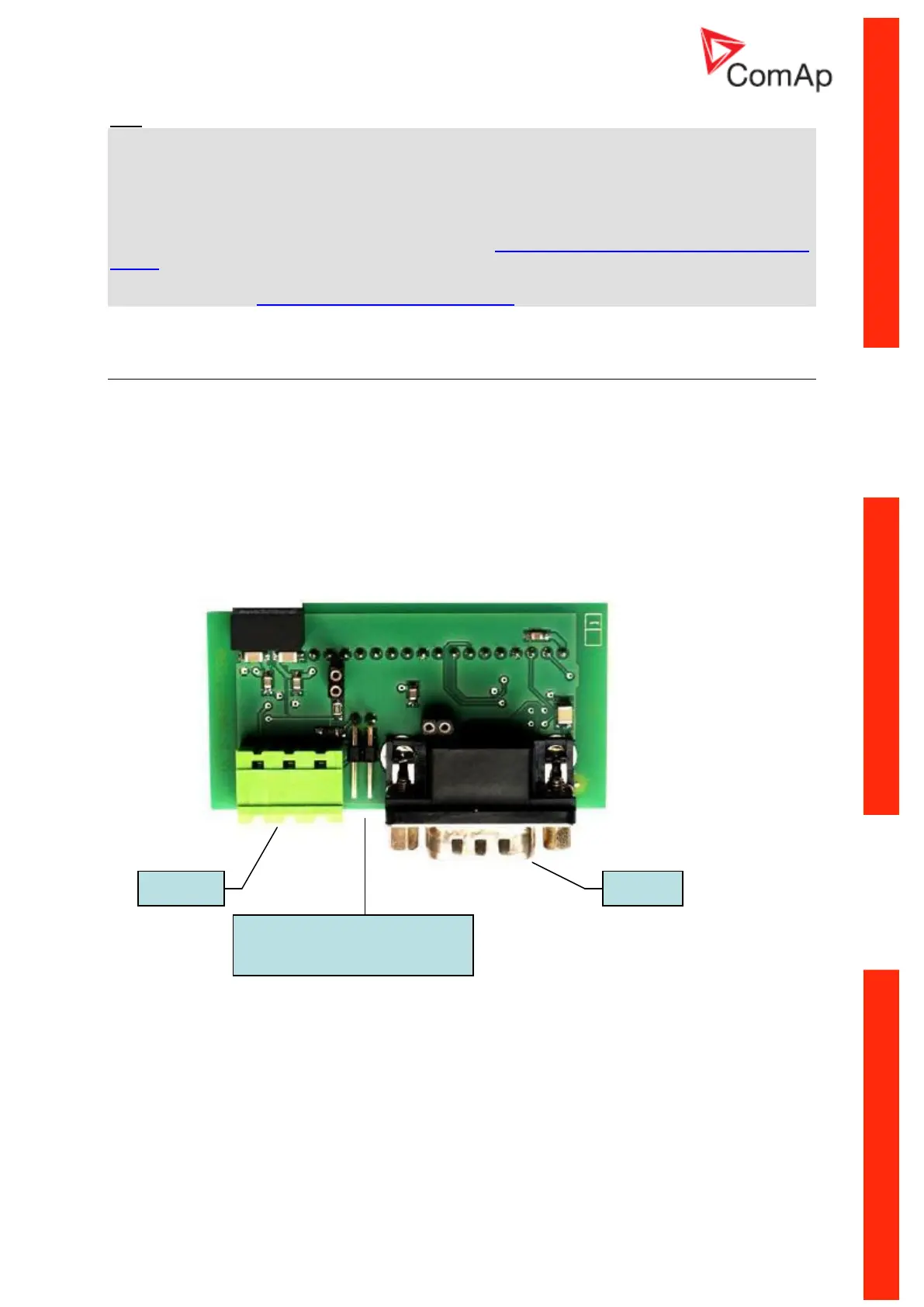

IL-NT RS232-485 Communication plug-in card
IL-NT RS232-485 is optional plug-in card to enable InteliLite
NT
the RS232 and RS485 communication.
This is required for computer or Modbus connection. Card inserts into expansion slot back on the
controller. The IL-NT RS232-485 is a dual port module with RS232 and RS485 interfaces at
independent COM channels. The RS232 is connected to COM1 and RS485 to COM2.
To insert the module, please follow the instructions for IL-NT RS232 module, procedure is analogous.
You must open the cover first (use screwdriver to open) and then insert the module into slot. Once you
have insert it, the module will snap under plastic teeth. It is supposed to be installed permanently.
Should you need to remove it, the safest way is to remove whole back cover and then remove module
manually.
Boot jumper and
RS485 Terminator jumper
