InteliLite
NT
– AMF20/25, SW version 2.2, ©ComAp – September 2014 46
IL-NT-AMF-2.2-Reference Guide.pdf
+
Battery
-
iL
4k7 
+
-
Power
Supply
Hint:
Please note that external resistors disconnection, connection incorrect resistors or input voltage value
during operation may cause an analog input destruction.
Practical example: VDO pressure sensor 0 – 6bar with linear voltage output 0 – 10V
Conversion table
Vout [V]
0
1
2
3
4
5
6
7
8
9
10
P [bar]
0
0,6
1,2
1,8
2,4
3
3,6
4,2
4,8
5,4
6

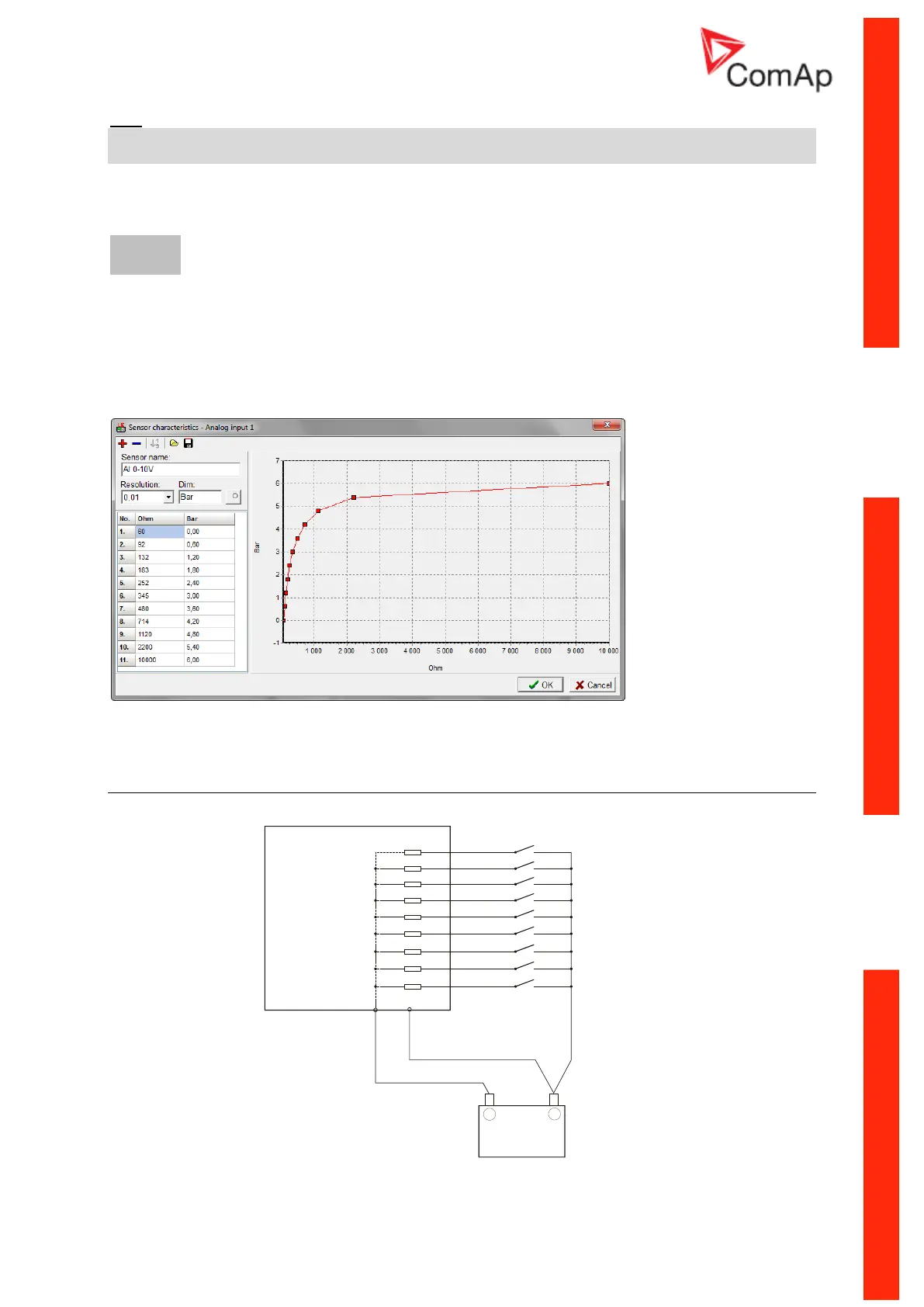

Modify one of analog input in LiteEdit configuration and load curve AI 0-10V.CRV
Than you can change resolution and measured value name witch is default displayed at V (volts).
For example if you have connected pressure sensor and his output voltage is 5V for pressure 3bar
you can change value ‘V’ in column “Dim:” to ‘Bar’ and by sensor specification adjust all corresponding
values in this column. In this case you can change the value at row 6. from 5 to 3.
When you finish with adjusting the values click OK and Write to controller.
Binary inputs and outputs
