Remote Control and Data Logging
Hint:
Refer to InteliCommunication guide for all additional information.
PC software - LiteEdit
On the PC (for direct or modem connection) has to be installed the ComAp’s software package
LiteEdit. (based on Windows 95 or newer platform)
LiteEdit enables:
read the quantities
adjust all set points
control the engine
configure the controller
select software configuration
modify alarm inputs and outputs
modify password, commands protections
direct, modem or Internet communication
Direct cable connection
An external communication module is necessary to enable direct cable connection to a PC. The
module is plugged into the slot located on the rear side of the controller. Find more information about
installation of the modules in a separate chapter.
A RS232, USB or RS485 interface can be used for direct cable connection to a PC. The setpoint
COM1 Mode or COM2 Mode (according to the interface used) must be set to DIRECT position for this
kind of connection.
RS232 RS232
CROSS-WIRED
RS232 CABLE
IL-NT RS232
IL-NT RS232-485
RS485 RS485RS485 CABLE
IL-NT RS232-485
Physical COM Port
Physical COM Port
RS232 USB
CROSSED-WIRED
RS232 CABLE
IL-NT RS232
Virtual COM Port
USB USB
Shielded USB „A“
cable
IL-NT S-USB
Virtual COM Port
RS232
USB

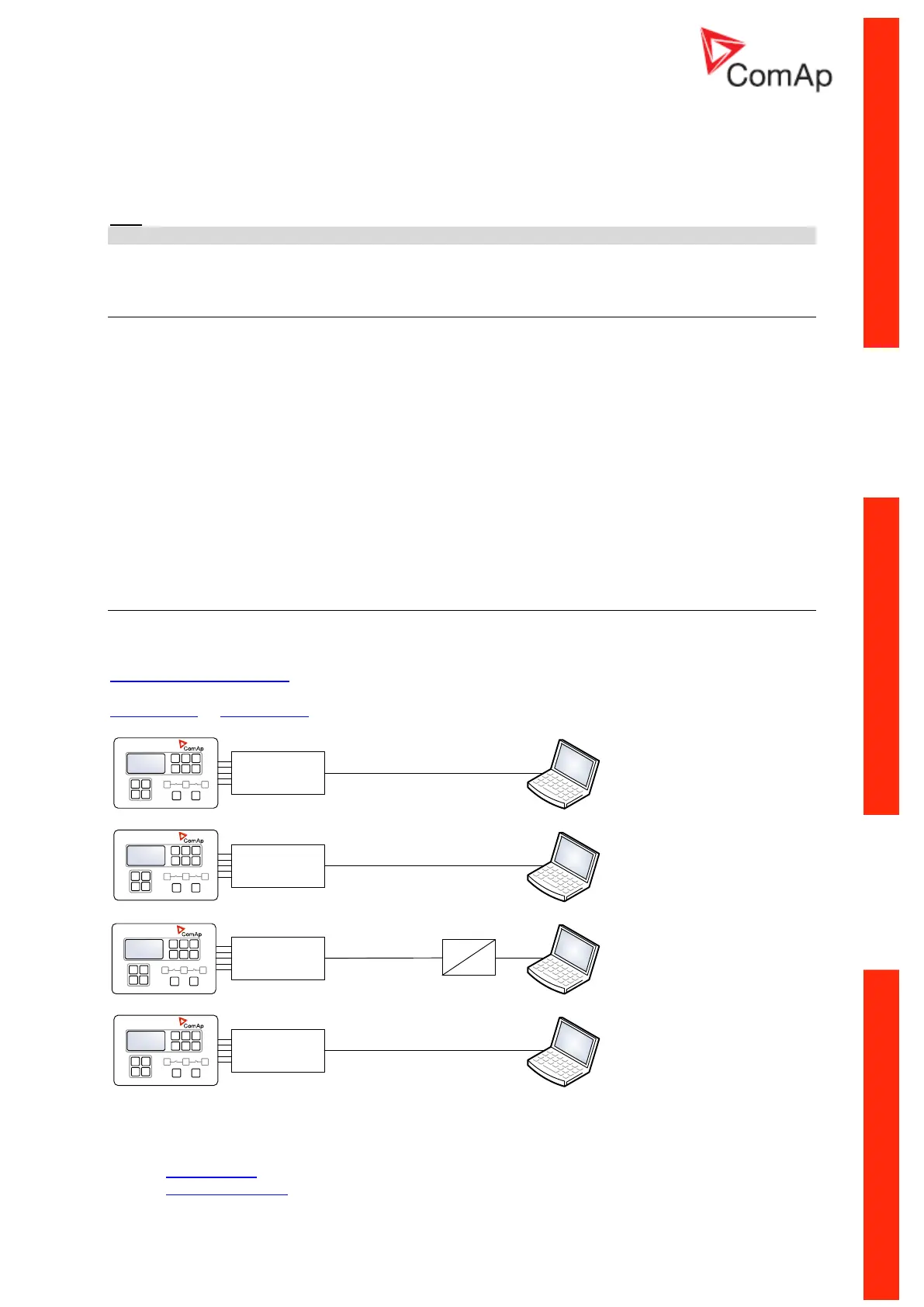

DIRECT CABLE CONNECTION TYPES
The following modules are available for direct connection to a PC:
1. IL-NT RS232
2. IL-NT RS232-485
