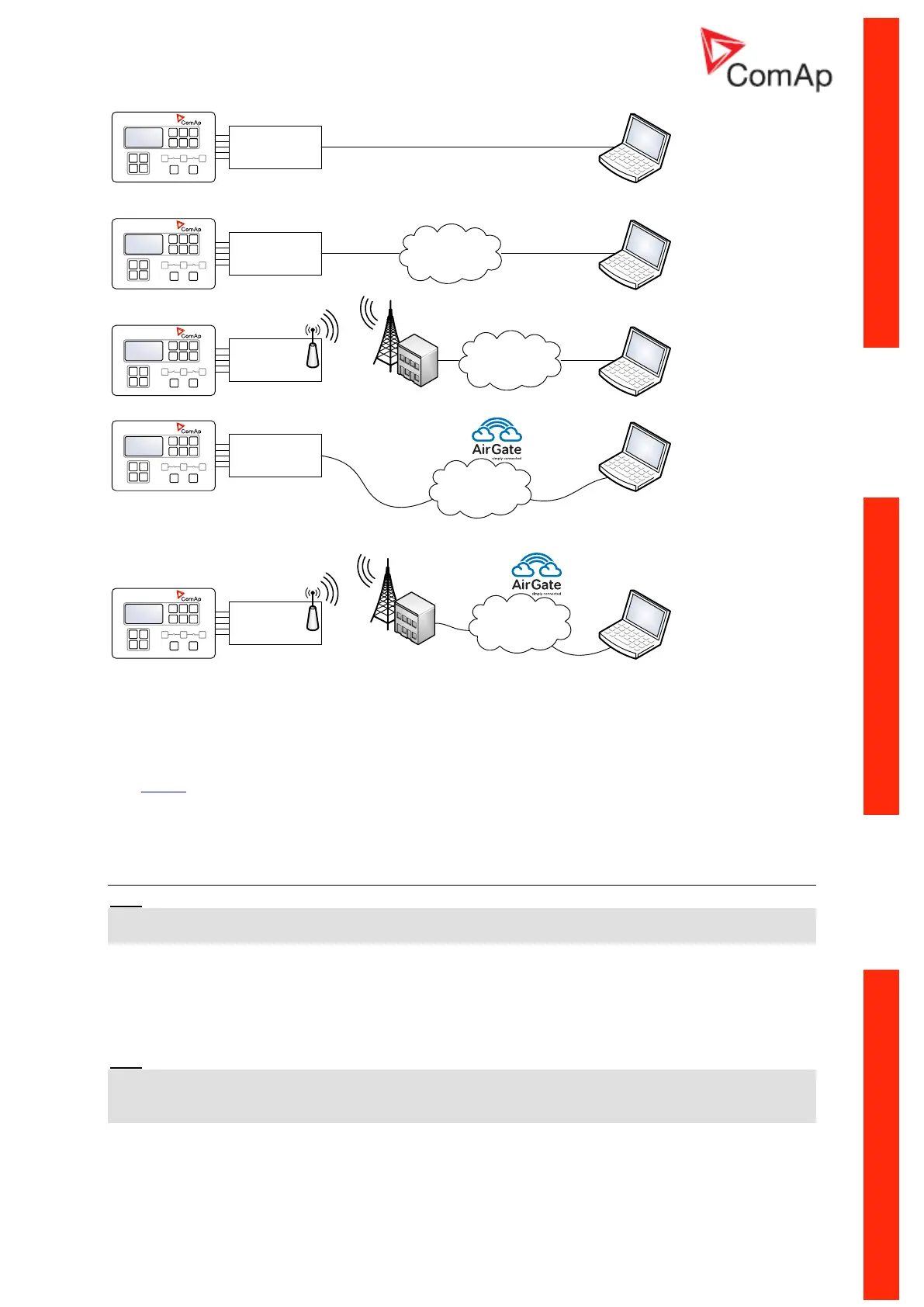

BTS / Mobile
provider
Ethernet
RJ45
Ethernet
RJ45
CROSS-WIRED
ETHERNET CABLE
IB-Lite
Ethernet
RJ45
Ethernet
RJ45
IB-Lite
LAN / WAN /
INTERNET
Ethernet
RJ45
IL-NT GPRS
LAN / WAN /
INTERNET
Static IP
Static (Public) IP
Static (Public) IP
BTS / Mobile
provider
Ethernet
RJ45
Ethernet
RJ45
IB-Lite
LAN / WAN /
INTERNET
Ethernet
RJ45
IL-NT GPRS
LAN / WAN /
INTERNET
Non-static non-public IP
Non-static non-public IP
Only AirGate ID
(controller nickname)
Only AirGate ID
(controller nickname)
INTERNET CONNECTION FOR SINGLE CONTROLLER
Using a web browser
The IB-Lite module with firmware version 1.1 and above makes it possible to use any web browser for
basic monitoring and adjustment of the controller. Direct your web browser to the IP address of the
module, e.g. http://192.168.1.254 and then enter the access code.
IB-Lite
Hint:
Setting the module up requires a certain familiarity with network administration. Ask your IT specialist
for assistance.
The default settings of the module are IP = 192.168.1.254, Netmask = 255.255.255.0 and
Gateway = 192.168.1.1. The default password for service webpages is “comap” (or “0”).
To restore the default settings, close the “restore default setting” jumper located on the module before
switching the controller on and remove it few seconds after the controller has been switched on.
Hint:
The default settings can be changed directly from the controller panel by pressing the “Page” button
and using ▼, ▲ and “Enter” to get to the “Comms Settings” menu (THIS APPLIES TO FIRMWARE VERSIONS
1.3 AND HIGHER).
