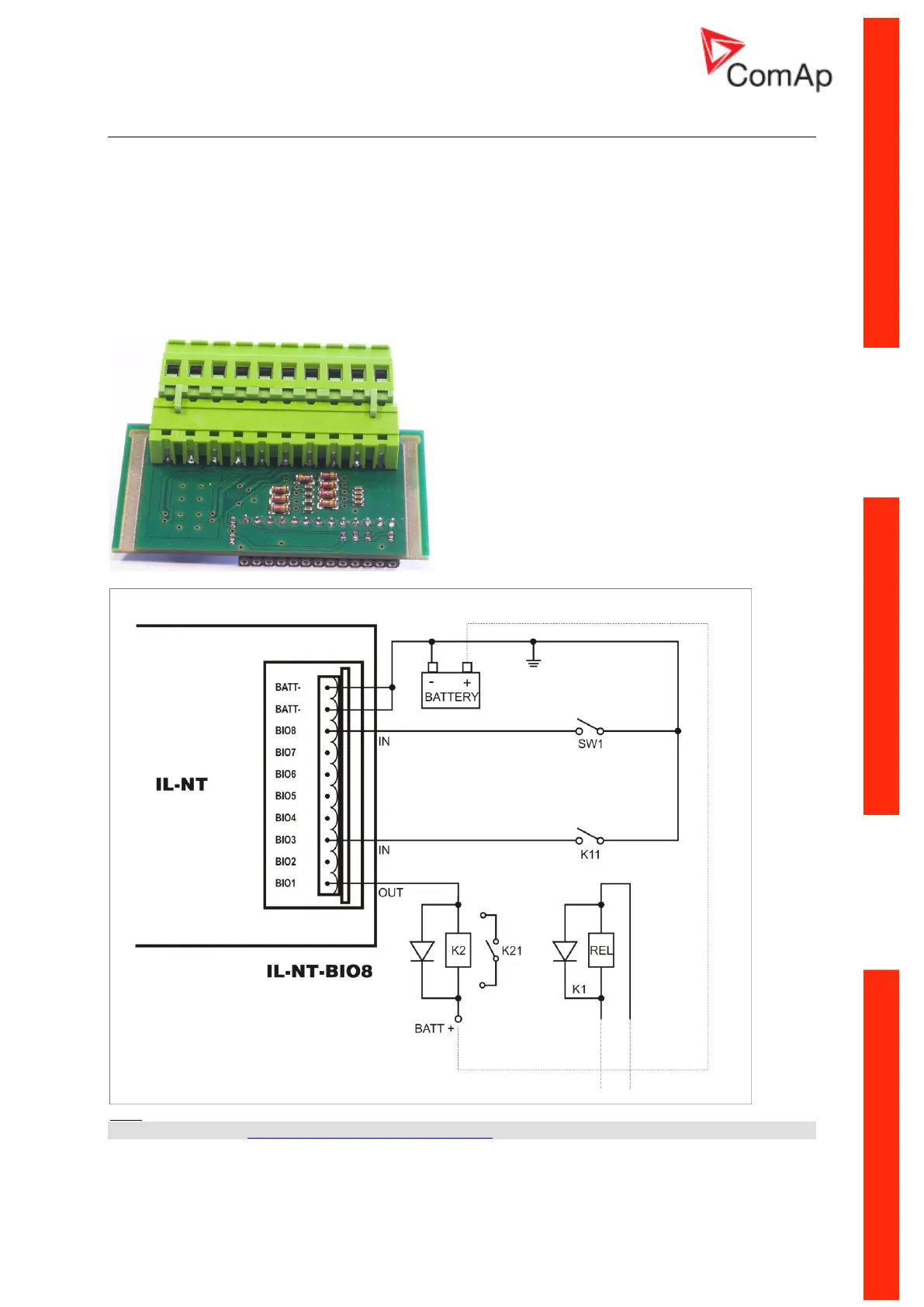

IL-NT BIO8 Hybrid binary input/output module
IL-NT BIO8 is optional plug-in card. Through this card controller can accommodate up to 8 binary
inputs or outputs. In LiteEdit configuration is possible to easily choose if particular I/O will be binary
input or output.
To insert the module, you must open the cover first (use screwdriver to open) and then insert the
module into slot. Once you have insert it, the module will snap under plastic teeth. It is supposed to be
installed permanently. Should you need to remove it, the safest way is to remove whole back cover
and then remove module manually.
Installing IL-NT BIO8 module is similar to installing RS 232 module. The difference is that module fits
to “extension module” slot and after installing IL-NT BIO8 you do not put back the small cover.
Hint:
Please see chapter IL-NT BIO8 interface (optional card) for technical details.
