InteliLite
NT
– AMF20/25, SW version 2.2, ©ComAp – September 2014 19
IL-NT-AMF-2.2-Reference Guide.pdf

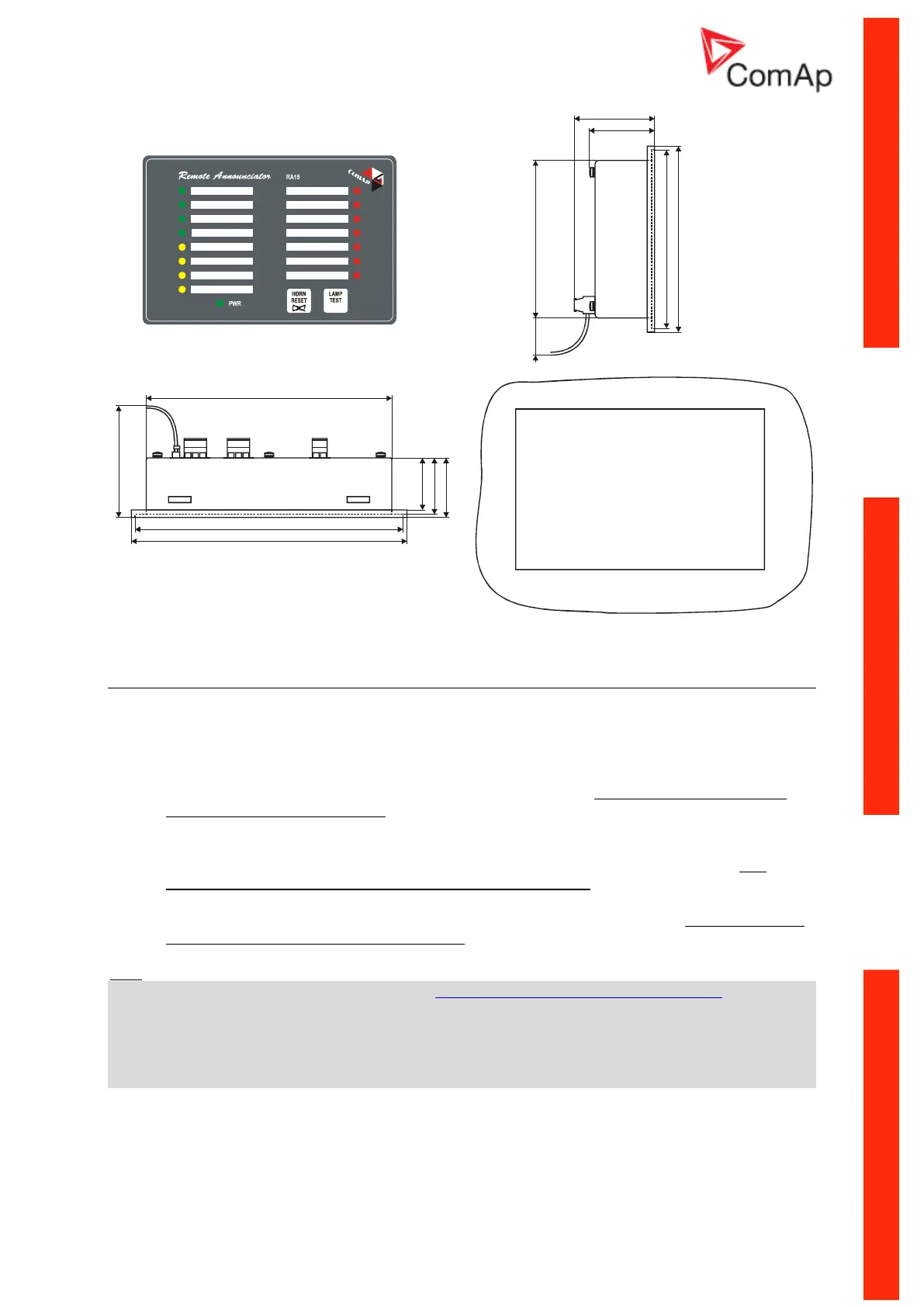

165 (6,5”)
38 (1,5”) 40 (1,6”)
~ 75 (3,0”)
~ 35 (1,4”)
180 (7,1”)
185 (7,3”)
106 (4,2”)
44 (1,7”)
54 (2,1”)
~ 25 (1,0”)
120 (4,7”) 125 (4,9”)
Cutout
for Remote Announciator
167 x 108 mm
(6,6 x 4,3 )”
IG IOM/PTM module
IG-IOM and IGS-PTM modules are I/O extension modules equipped with 8 binary inputs, 8 binary
outputs, 4 analogue inputs and one analogue output. The module can be used for AMF25, MRS15,
16, 19 only.
 Binary inputs and outputs are configurable the same way like inputs and outputs on iL.
 Analogue inputs are configurable like iL with the limitation that the binary and tristate mode
cannot be used on PTM module.
 The protection of analogue IOM/PTM inputs is activated by overcrossing the limits, active only
when the engine is running.
 IG-IOM analogue inputs are resistive (the same parameters like IL-NT) 0 -2,4 k. The
module IOM is designed for especially VDO resistive sensors.
 IGS-PTM analogue inputs are configurable by jumpers to ranges 0-250, 0-100mV, 0-20mA.
The module can be used especially for Pt100 sensors and current sensors. The module PTM
is not suitable for VDO temperature sensor.
Hint:
- For connection details please refer to chapter Extension modules (CAN bus) connection.
- For a description of setting IGS-PTM module with current/voltage sensors please see the Extension
modules manual.
- When module is not configured by LiteEdit SW, controller does not show related values and
setpoints
- If IGS-PTM is not communicating to a controller, ShutDown protection on controller is activated.
