InteliLite
NT
– AMF20/25, SW version 2.2, ©ComAp – September 2014 37
IL-NT-AMF-2.2-Reference Guide.pdf

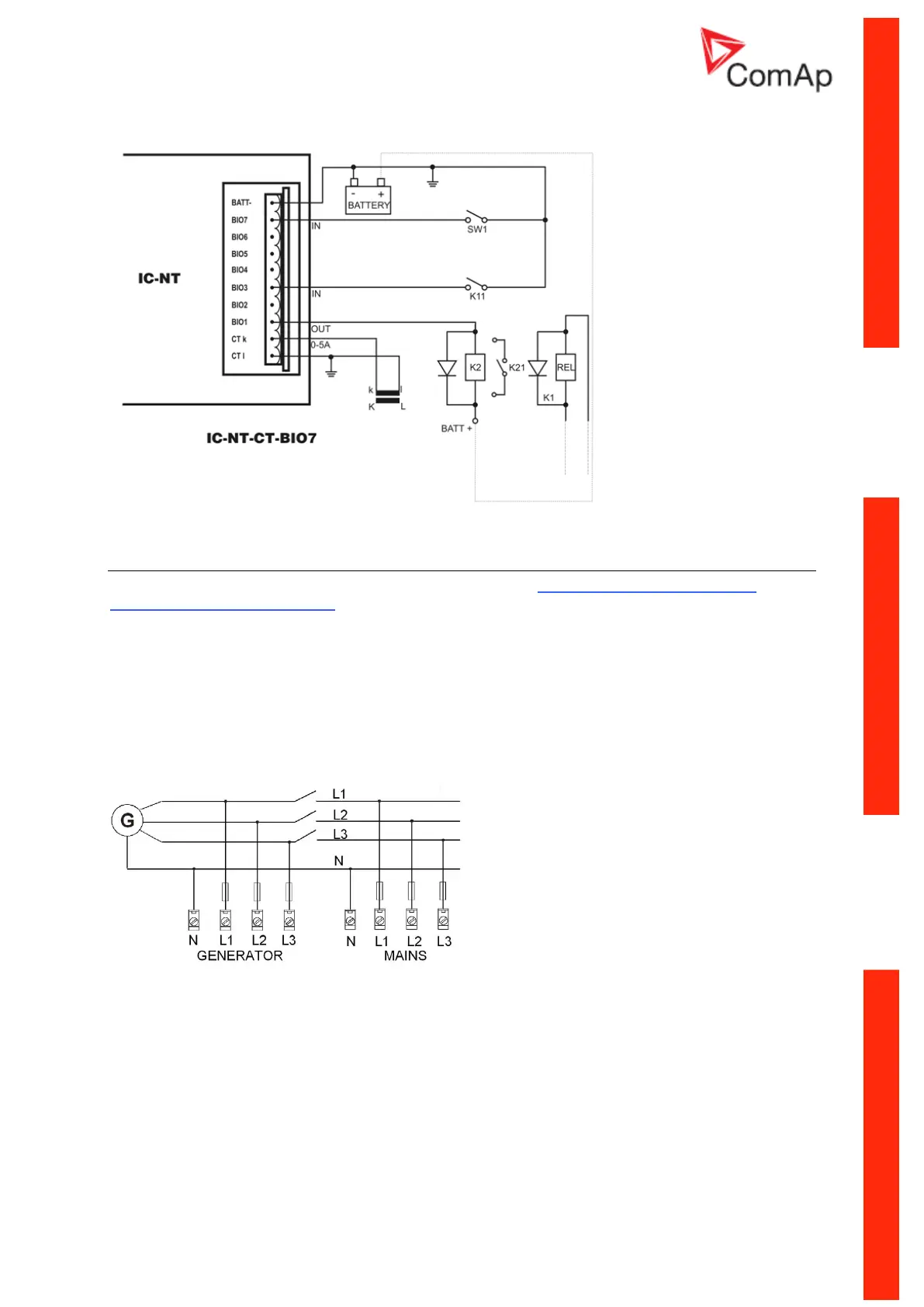

IC-NT CT-BIO7 wiring
Voltage measurement and generator connection types
There are 4 voltage measurement ConnectionType (setpoint ConnectionType [3Ph4Wire /
3Ph3Wire / Split Ph / Mono Ph]) options, every type matches to corresponding generator connection
type.
The generator protections are evaluated from different voltages based on ConnectionType setting:
 3W 4Ph – Ph-Ph voltage
 3W 3Ph – Ph-Ph voltage
 Split Ph – Ph-N voltage
 Mono Ph – Ph-N voltage
ConnectionType: 3 Phase 4 Wires
3 Phase 4 Wires - STAR Connection Three phase “wye” measurement – 3PY
