Electrical Wiring C4000
Compac Wireless Transceiver
Compac Industries Ltd.
Page 49
www.compac.co.nz
Compac Wireless Transceiver
The CWID PCB is mounted in a separate enclosure. Connector 'CON5' on
the CWID PCB (see below) connects to J13 on the C4000 Microprocessor
PCB (Refer Description C4000) with an eight wire cable (see below)

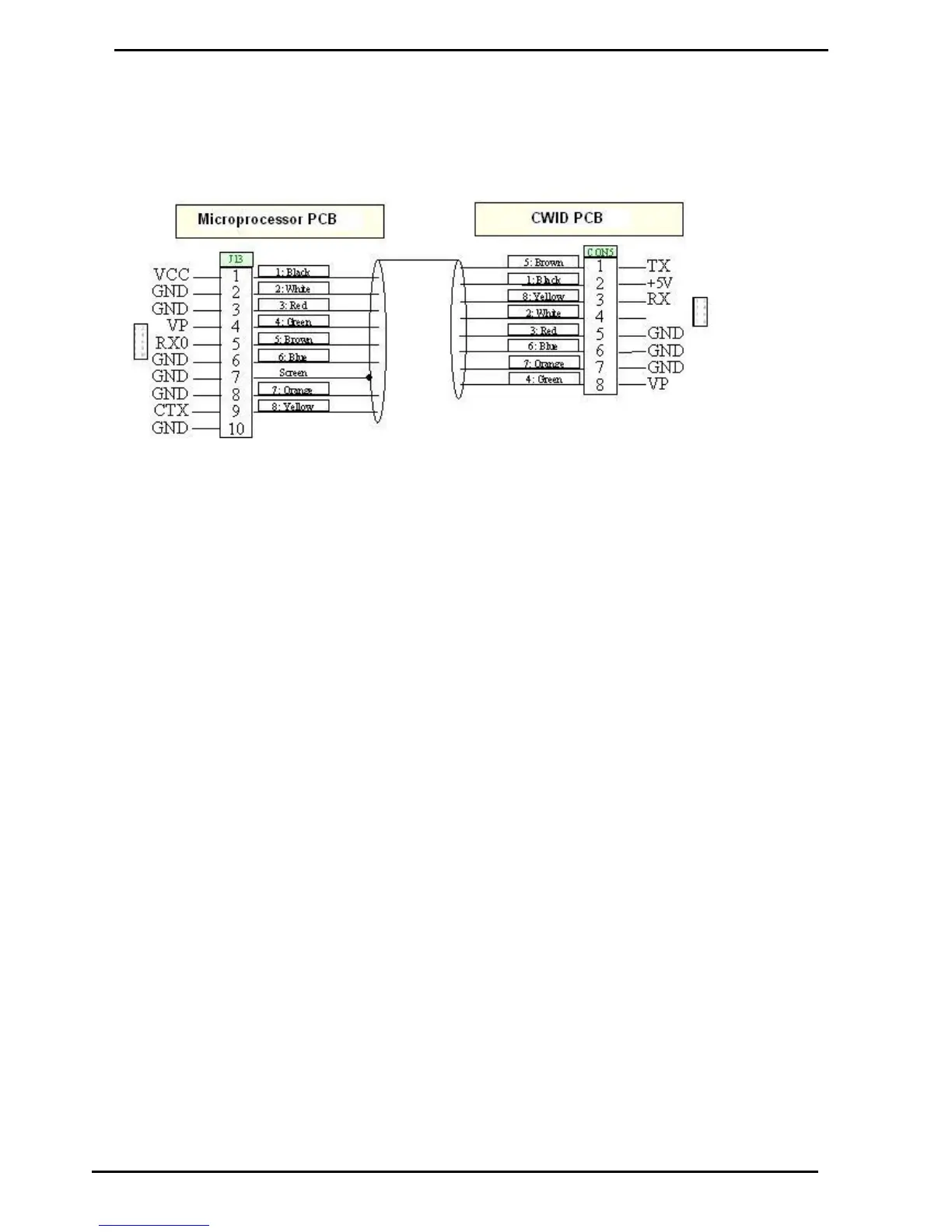

Figure 1: CWID (CON5) to microprocessor (J13) cable
