RS485 Wiring
Appendix A
Compac Industries Ltd.
Page 74
www.compac.co.nz

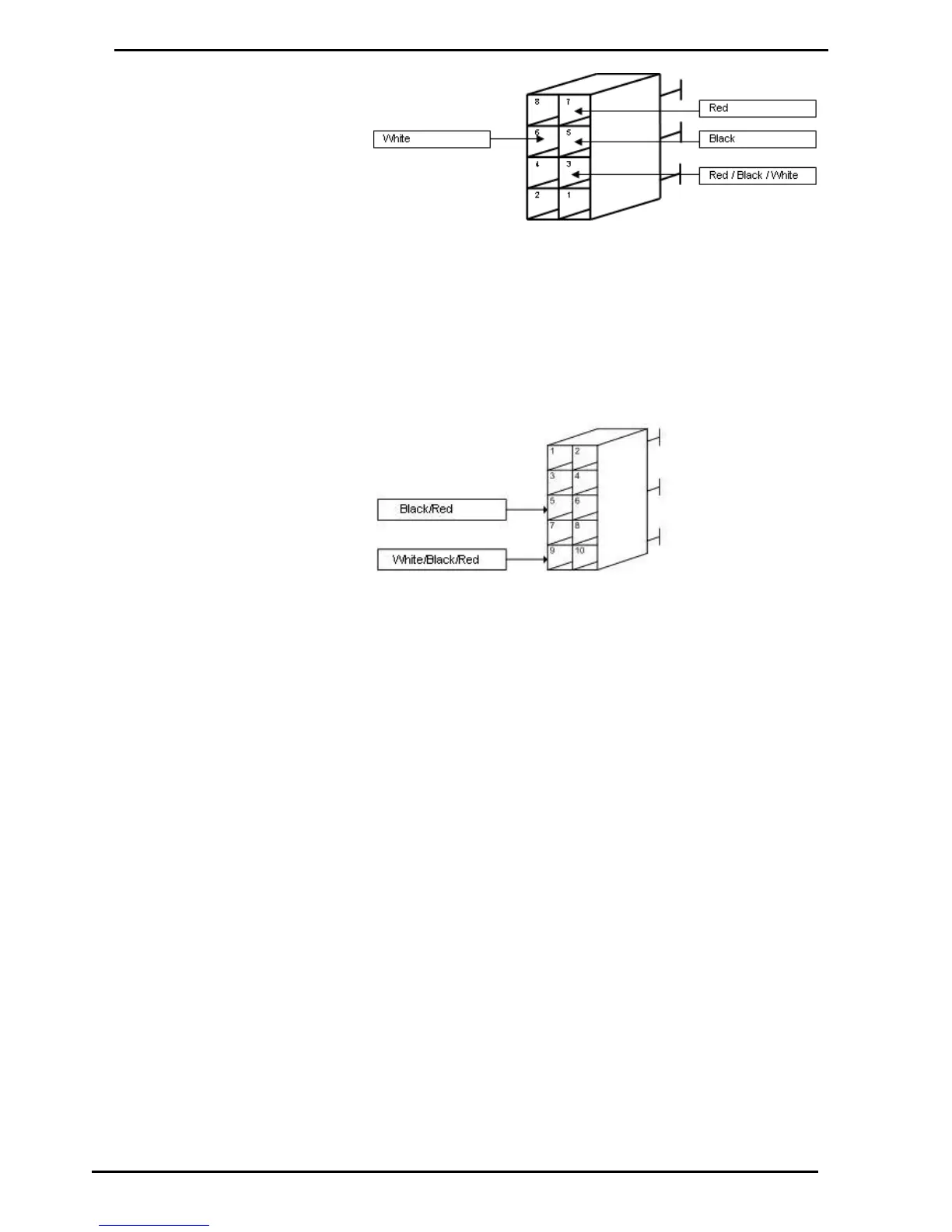

Figure 6: J2B C4000 Processor
3) A new plug will need to be made for J13 and the following wires removed
from J2A and inserted into pins 5 and 9.
