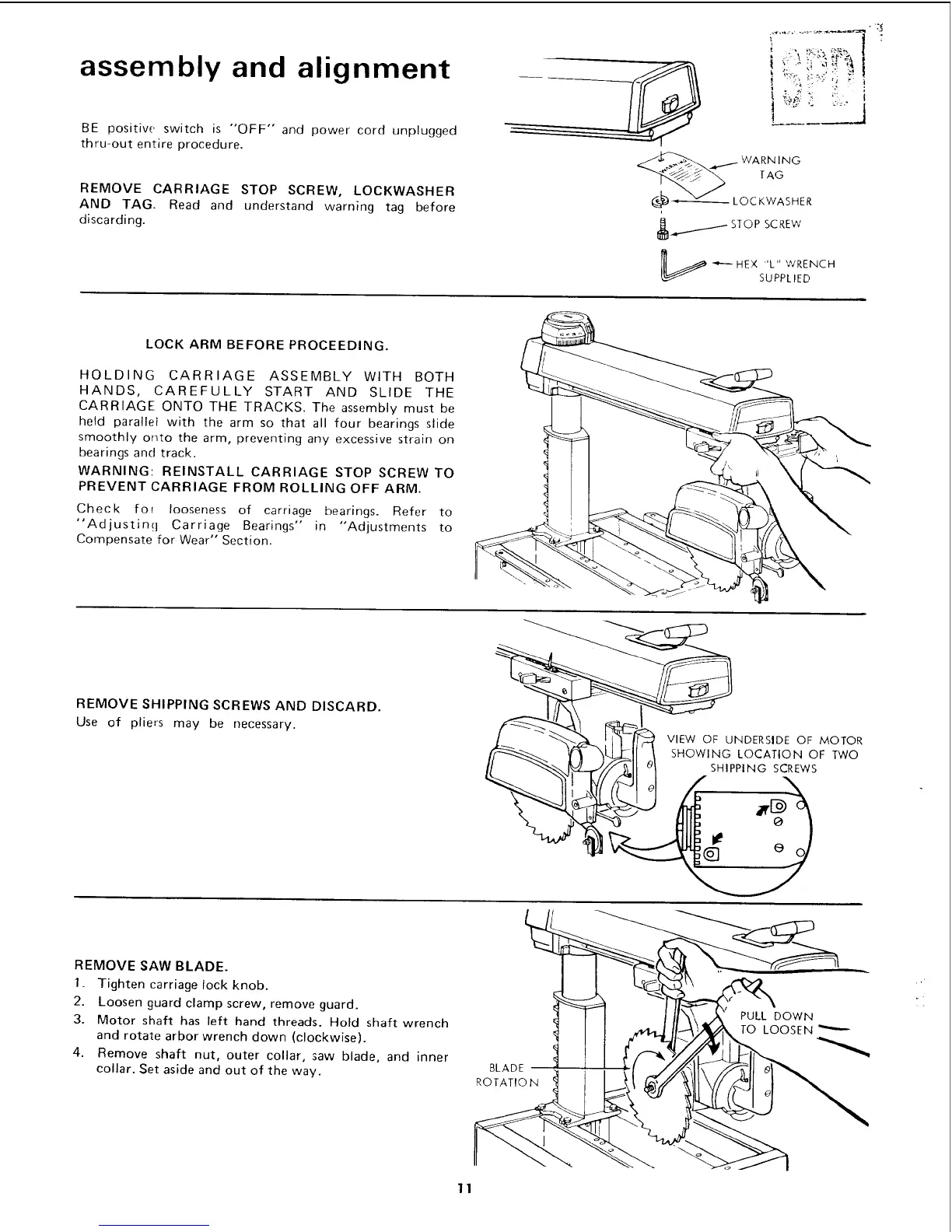

assembly and alignment
BE positive switch is "OFF" and power cord unplugged
thru-out entire procedure.
REMOVE CARRIAGE STOP SCREW, LOCKWASHER
AND TAG. Read and understand warning tag before
discarding.
fAG
_) LOCKWASHER
1_,_ STOP SCREW
'-- HEX "L" WRENCH
SUPPLIED
LOCK ARM BEFORE PROCEEDING.
HOLDING CARRIAGE ASSEMBLY WITH BOTH
HANDS, CAREFULLY START AND SLIDE THE
CARRIAGE ONTO THE TRACKS. The assembly must be
held parallel with the arm so that all four bearings slide
smoothly onto the arm, preventing any excessive strain on
bearings and track.
WARNING: REINSTALL CARRIAGE STOP SCREW TO
PREVENT CARRIAGE FROM ROLLING OFF ARM.
Check for looseness of carriage bearings. Refer to
"Adjustinq Carriage Bearings" in "Adjustments to
Compensate for Wear" Section.
REMOVE SHIPPING SCREWS AND DISCARD.
Use of pliers may be necessary.
REMOVE SAW BLADE.
1. Tighten carriage lock knob.
2. Loosen guard clamp screw, remove guard.
3. Motor shaft has left hand threads. Hold shaft wrench
and rotate arbor wrench down (clockwise).
4. Remove shaft nut, outer collar, saw blade, and inner
collar. Set aside and out of the way.
BLADE
ROTATION
PULL DOWN
TO LOOSEN
11
