repair parts

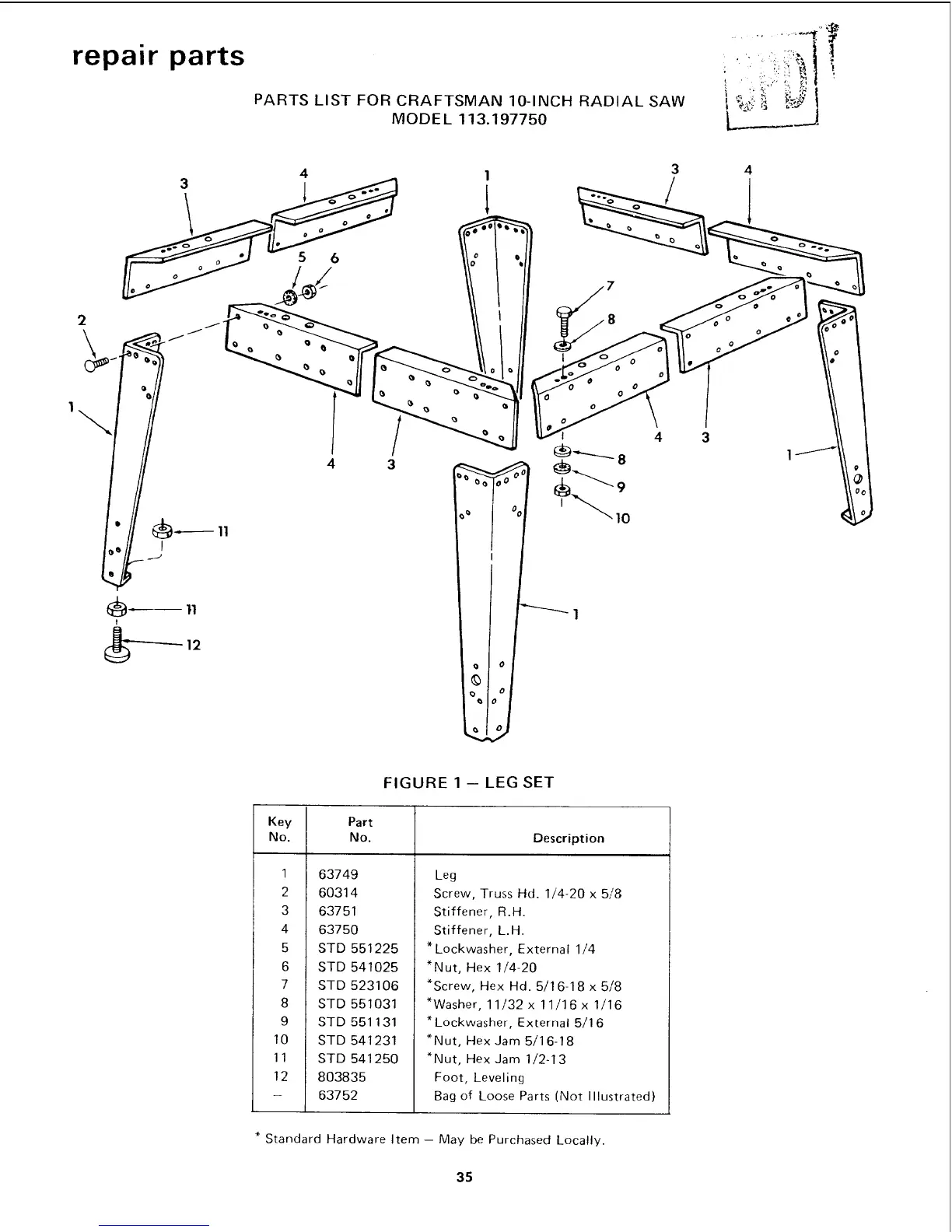

PARTS LIST FOR CRAFTSMAN 10-INCH RADIAL SAW
MODEL 113.197750
4
/
3
1
4
3
/
3
I
FIGURE 1 -- LEG SET
Key Part
No. No. Description
1
2
3
4
5
6
7
8
9
10
11
12
63749
60314
63751
63750
STD 551225
STD 541025
STD 523106
STD 551031
STD 551131
STD 541231
STD 541250
803835
63752
Leg
Screw, Truss Hd. 1/4-20 x 5/8
Stiffener, R.H.
Stiffener, L.H.
*Lockwasher, External 1/4
*Nut, Hex 1/4-20
*Screw, Hex Hd. 5/16-18 x 5/8
*Washer, 11/32 x 11/16 x 1/16
*Lockwasher, External 5/16
*Nut, Hex Jam 5/16-18
*Nut, Hex Jam 1/2-13
Foot, Leveling
Bag of Loose Parts (Not Illustrated)
* Standard Hardware Item -- May be Purchased Locally.
