repair parts

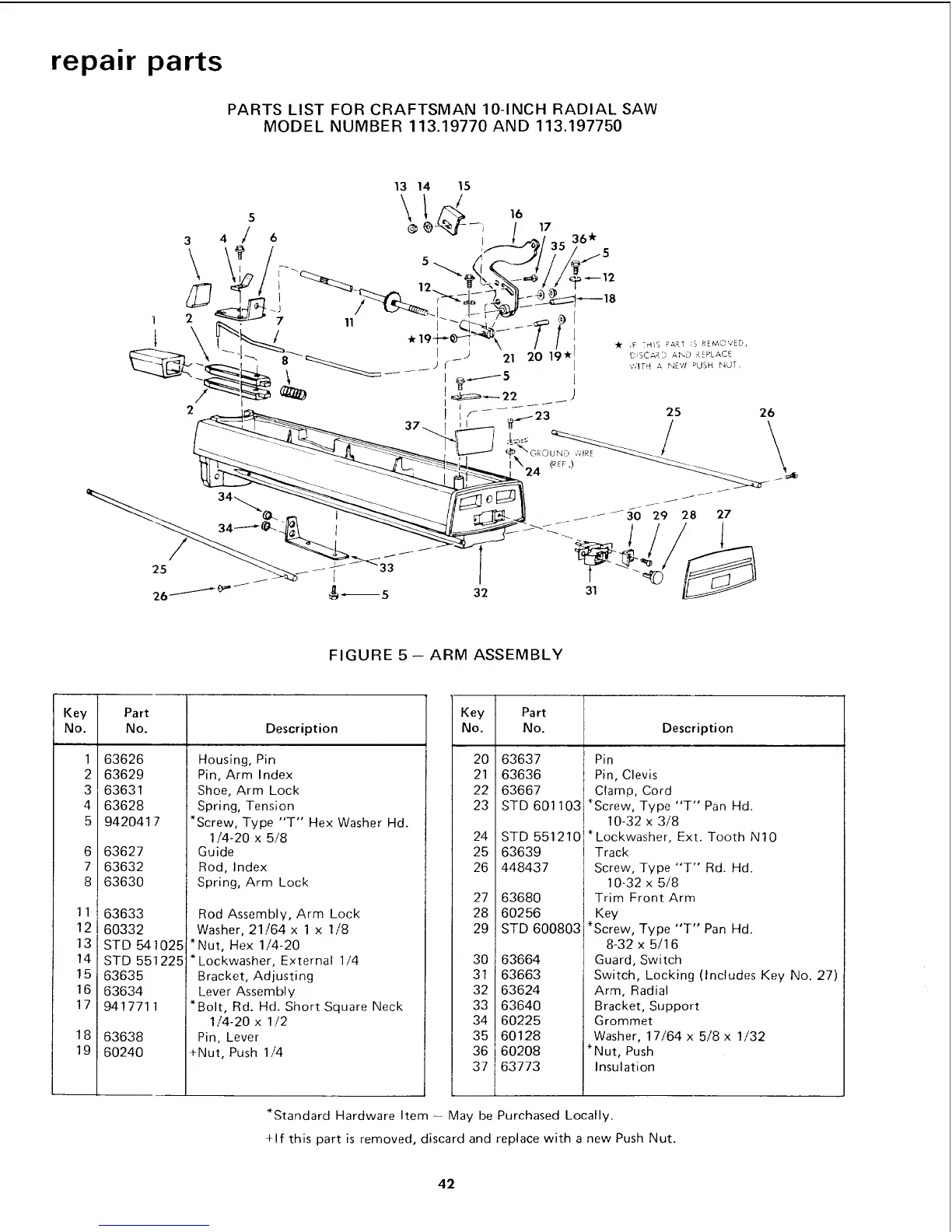

PARTS LIST FOR CRAFTSMAN 10-INCH RADIAL SAW
MODEL NUMBER 113.19770 AND 113.197750
32
FIGURE 5 -- ARM ASSEMBLY
Key Part
No. No. Description
1
2
3
4
5
6
7
8
11
12
13
14
15
16
17
18
19
63626
63629
63631
63628
942O417
63627
63632
63630
63633
60332
STD541025
STD 551225
63635
63634
9417711
63638
6O24O
Housing, Pin
Pin, Arm Index
Shoe, Arm Lock
Spring, Tension
*Screw, Type "T" Hex Washer Hd.
1/4-20 x 5/8
Guide
Rod, Index
Spring, Arm Lock
Rod Assembly, Arm Lock
Washer, 21/64 x 1 x 1/8
*Nut, Hex 1/4-20
*Lockwasher, External 1/4
Bracket, Adjusting
Lever Assembly
*Bolt, Rd. Hd. Short Square Neck
1/4-20 x 1/2
Pin, Lever
+Nut, Push 1/4
Key Part
No. No. Description
20 63637
21 63636
22 63667
23 STD 601103
24 STD 551210
25 63639
26 448437
27 63680
28 60256
29 STD 600803
30 63664
31 63663
32 63624
33 63640
34 60225
35 60128
36 60208
37 63773
Pin
Pin, Clevis
Clamp, Cord
*Screw, Type "T" Pan Hd.
10-32 x 3/8
*Lockwasher, Ext. Tooth N10
Track
Screw, Type "T" Rd. Hd.
10-32 x 5/8
Trim Front Arm
Key
*Screw, Type "T" Pan Hd.
8-32 x 5/16
Guard, Switch
Switch, Locking (Includes Key No. 27)
Arm, Radial
Bracket, Support
Grommet
Washer, 17/64 x 5/8 x 1/32
*Nut, Push
Insulation
*Standard Hardware Item - May be Purchased Locally.
+If this part is removed, discard and replace with a new Push Nut.
