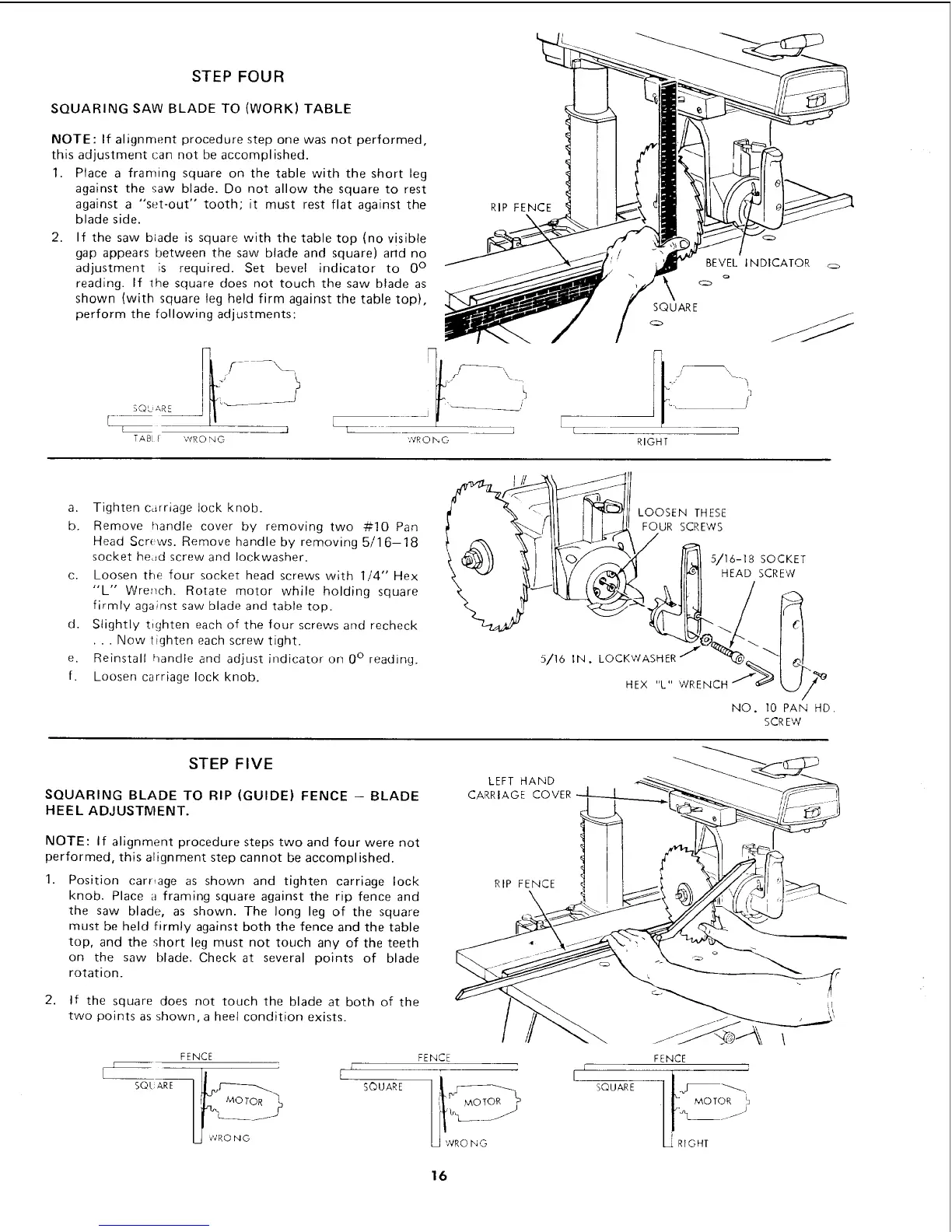

STEP FOUR
SQUARING SAW BLADE TO (WORK) TABLE
NOTE: If alignment procedure step one was not performed,
this adjustment can not be accomplished.
1. Place a framing square on the table with the short leg
against the saw blade. Do not allow the square to rest
against a "set-out" tooth; it must rest flat against the
blade side.
2. If the saw biade is square with the table top (no visible
gap appears between the saw blade and square) and no
adjustment is required. Set bevel indicator to 0 °
reading. If the square does not touch the saw blade as
shown (with square leg held firm against the table top),
perform the following adjustments:
RIP FENCE
X
11 f- --
TAB[ f WRO NG
SQUARE
f x _ _ S r-
" _,€' /
','¢R0 I%G RIGHT
NDICATOR
a. Tighten c,_rriage lock knob.
b. Remove handle cover by removing two #10 Pan
Head Scr(ws. Remove handle by removing 5/1 6-18
socket he_d screw and Iockwasher.
c. Loosen the four socket head screws with 1/4" Hex
"'L'" Wrench. Rotate motor while holding square
firmly against saw blade and table top.
d. Slightly tighten each of the four screws and recheck
• . . Now tighten each screw tight.
e. Reinstall handle and adjust indicator on 0° reading.
f. Loosen carriage lock knob.
II '11HEADSCRE',V
X_/_/// _:_ 5/16-,8 SOCKET
HEX WRENC,
NO. 10 PAN HD.
SCREW
STEP FIVE
SQUARING BLADE TO RIP (GUIDE) FENCE -- BLADE
HEEL ADJUSTMENT.
NOTE: If alignment procedure steps two and four were not
performed, this alignment step cannot be accomplished.
1. Position carriage as shown and tighten carriage lock
knob. Place a framing square against the rip fence and
the saw blade, as shown. The long leg of the square
must be held firmly against both the fence and the table
top, and the short leg must not touch any of the teeth
on the saw blade. Check at several points of blade
rotation.
2. If the square does not touch the blade at both of the
two points as shown, a heel condition exists.
LEFT HAND
CARRIAGE COVER
RIP FENCE
SQUARE
FENCE
S©UARE
FENCE
i r"
LJ WRONG
SQUARE
FENCE
I I"_ MOTOR
L RIGHT
16
To Next Page
