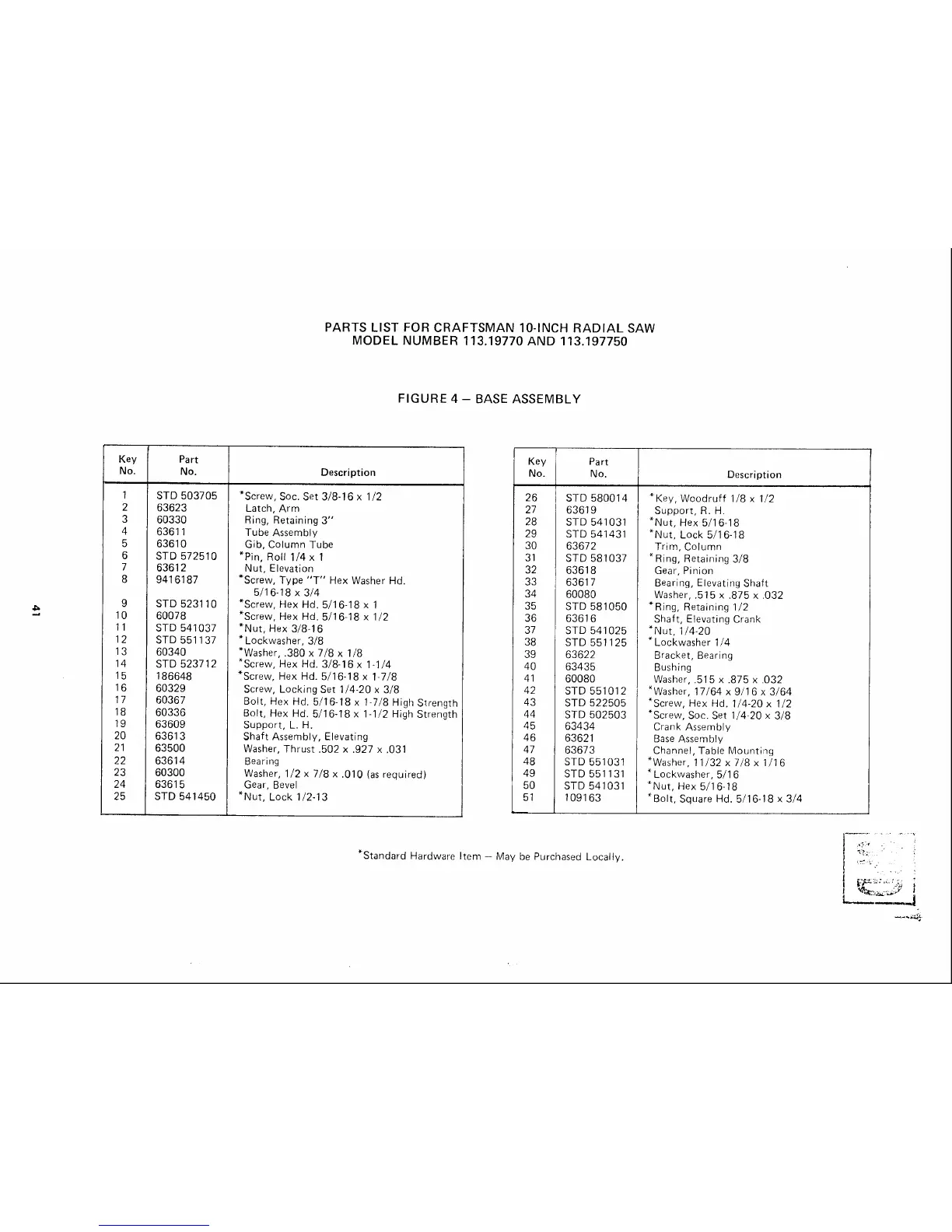

PARTS LIST FOR CRAFTSMAN 10-INCH RADIAL SAW
MODEL NUMBER 113.19770 AND 113.197750
FIGURE 4 - BASE ASSEMBLY
f
Key Part
No. No. Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
STD 503705
63623
60330
63611
63610
STD 572510
63612
9416187
STD 523110
6OO78
STD 541O37
STD 551137
6O34O
STD 523712
186648
60329
60367
60336
63609
63613
63500
63614
60300
63615
STD 541450
*Screw, Soc. Set 3/8-16 x 1/2
Latch, Arm
Ring, Retaining 3"
Tube Assembly
Gib, Column Tube
*Pin, Roll 1/4 x 1
Nut, Elevation
*Screw, Type "T" Hex Washer Hd.
5/16-18 x 3/4
*Screw, Hex Hd. 5/16-18 x 1
*Screw, Hex Hd. 5/16-18 x 1/2
*Nut, Hex 3/8-16
* Lockwasher, 3/8
*Washer, .380 x 7/8 x 1/8
*Screw, Hex Hd. 3/8-16 x 1-1/4
*Screw, Hex Hd. 5/16-18 x 1-7/8
Screw, Locking Set 1/4-20 x 3/8
Bolt, Hex Hd. 5/16-18 x 1-7/8 High Strength
Bolt, Hex Hd. 5/16-18 x 1-1/2 High Strength
Support, L. H.
Shaft Assembly, Elevating
Washer, Thrust .502 x .927 x .031
Bearing
Washer, 1/2 x 7/8 x .010 (as required)
Gear, Bevel
*Nut, Lock 1/2-13
T
Key Part
No. No. Description
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
STD 580014
63619
STD 541031
STD 541431
63672
STD 581037
63618
63617
60080
STD 581050
63616
STD 541025
STD 551125
63622
63435
60080
STD 551012
STD 522505
STD 502503
63434
63621
63673
STD 551031
STD 551131
STD 541031
109163
*Key, Woodruff 1/8 x 1/2
Support, R. H.
*Nut, Hex 5/16-18
*Nut, Lock 5/16-18
Trim, Column
*Ring, Retaining 3/8
Gear, Pinion
Bearing, Elevating Shaft
Washer, .515 x .875 x .032
Ring, Retaining 1/2
Shaft, Elevating Crank
*Nut, 1/4-20
* Lockwasher 1/4
Bracket, Bearing
Bushing
Washer, .515 x .875 x .032
"Washer, 17/64 x 9/16 x 3/64
*Screw, Hex Hd. 1/4-20 x 1/2
*Screw, Soc. Set 1/4-20 x 3/8
Crank Assembly
Base Assembly
Channel, Table Mounting
*Washer, 11/32 x 7/8 x 1/16
Lockwasher, 5/16
*Nut, Hex 5/16-18
*Bolt, Square Hd. 5/16-!8 x 3/4
*Standard Hardware Item - May be Purchased Locally.
