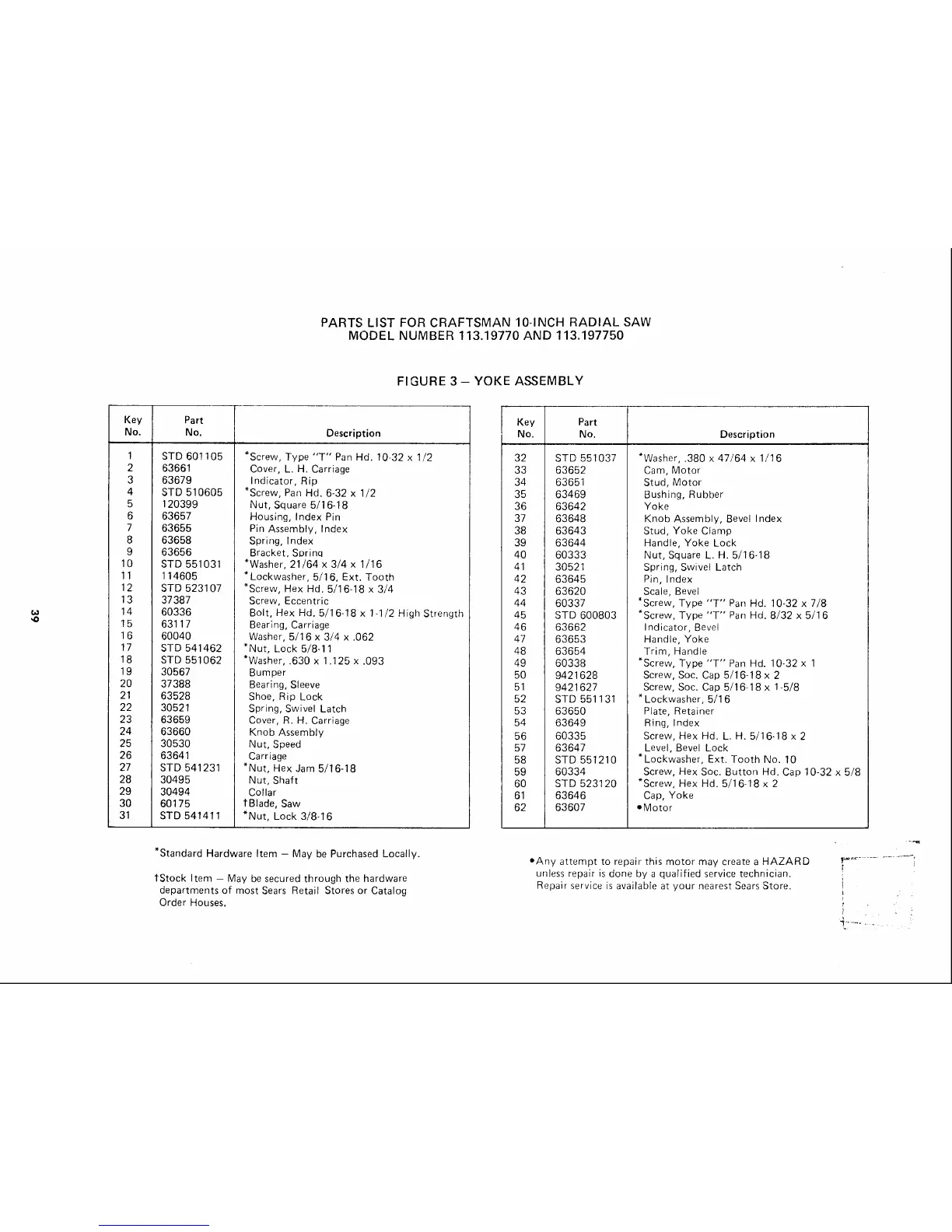

PARTS LIST FOR CRAFTSMAN 10-INCH RADIAL SAW
MODEL NUMBER 113.19770 AND 113.197750
FIGURE 3- YOKE ASSEMBLY
w
,o
Key Part
No. No. Description
1 STD 601105
2 63661
3 63679
4 STD 510605
5 120399
6 63657
7 63655
8 63658
9 63656
10 STD 551031
11 114605
12 STD 523107
13 37387
14 60336
15 63117
16 60040
17 STD 541462
18 STD 551062
19 30567
20 37388
21 63528
22 30521
23 63659
24 63660
25 30530
26 63641
27 STD 541231
28 30495
29 30494
30 60175
31 STD 541411
*Screw, Type "T" Pan Hd. !0-32 x 1/2
Cover, L. H. Carriage
Indicator, Rip
*Screw, Pan Hd. 6-32 x 1/2
Nut, Square 5/16-18
Housing, Index Pin
Pin Assembly, Index
Spring, Index
Bracket, Sprinq
*Washer, 21/64 x 3/4 x 1/16
* Lockwasher, 5/16, Ext. Tooth
*Screw, Hex Hd. 5/16-18 x 3/4
Screw, Eccentric
Bolt, Hex Hd. 5/16-18 x 1-1/2 High Strength
Bearing, Carriage
Washer, 5/1 6 x 3/4 x .062
*Nut, Lock 5/8-11
*Washer, .630 x 1.125 x .093
Bumper
Bearing, Sleeve
Shoe, Rip Lock
Spring, Swivel Latch
Cover, R. H. Carriage
Knob Assembly
Nut, Speed
Carriage
*Nut, Hex Jam 5/16-18
Nut, Shaft
Collar
t Blade, Saw
*Nut, Lock 3/8-16
*Standard Hardware Item - May be Purchased Locally.
tStock Item - May be secured through the hardware
departments of most Sears Retail Stores or Catalog
Order Houses.
Key Part
No. No. Description
32 STD 551037
33 63652
34 63651
35 63469
36 63642
37 63648
38 63643
39 63644
40 60333
41 30521
42 63645
43 63620
44 60337
45 STD 600803
46 63662
47 63653
48 63654
49 60338
50 9421628
51 9421627
52 STD 551131
53 63650
54 63649
56 60335
57 63647
58 STD 551210
59 60334
60 STD 523120
61 63646
62 63607
*Washer, .380 x 47/64 x 1/16
Cam, Motor
Stud, Motor
Bushing, Rubber
Yoke
Knob Assembly, Bevel Index
Stud, Yoke Clamp
Handle, Yoke Lock
Nut, Square L. H. 5/16-18
Spring, Swivel Latch
Pin, Index
Scale, Bevel
*Screw, Type "T" Pan Hd. 10-32 x 7/8
*Screw, Type "T" Pan Hd. 8/32 x 5/16
Indicator, Bevel
Handle, Yoke
Trim, Handle
*Screw, Type "T" Pan Hd. 10-32 x 1
Screw, Soc. Cap 5/16-18 x 2
Screw, Soc. Cap 5/16-18 x 1-5/8
* Lockwasher, 5/16
Plate, Retainer
Ring, Index
Screw, Hex Hd. L. H. 5/16-18 x 2
Level, Bevel Lock
*Lockwasher, Ext. Tooth No. 10
Screw, Hex Soc. Button Hd. Cap 10-32 x 5/8
*Screw, Hex Hd. 5/16-18 × 2
Cap, Yoke
oMotor
oAny attempt to repair this motor may create a HAZARD
unless repair is done by a qualified service technician.
Repair service is available at your nearest Sears Store.
