over-heatingandmotorburn-out,usethetablebelowto
determinetheminimumwiresize(A.W.G.)extensioncord.
Useonly3 wireextensioncordswhichhave3 prong
groundingtypeplugsand3-polereceptacleswhichaccept
thetoolsplug.
NOTE:Forcircuits of greater length, the wire size must be
increased proportionately in order to deliver ample voltage
to the saw motor.
Length of the
Conductor
Up to 100 feet
100 feet to 200 feet
200 feet to 400 feet
i _." _t ¸ , : _ _i
Wire Size Requir Z_:_
(American Wire Gauge ul__m__r) _ '_;'!
240 Volt Lines I 120 Vo--_-L:_n_;_.........
No. 14 I No. 12
No. 12 No. 8
No. 8 No. 6

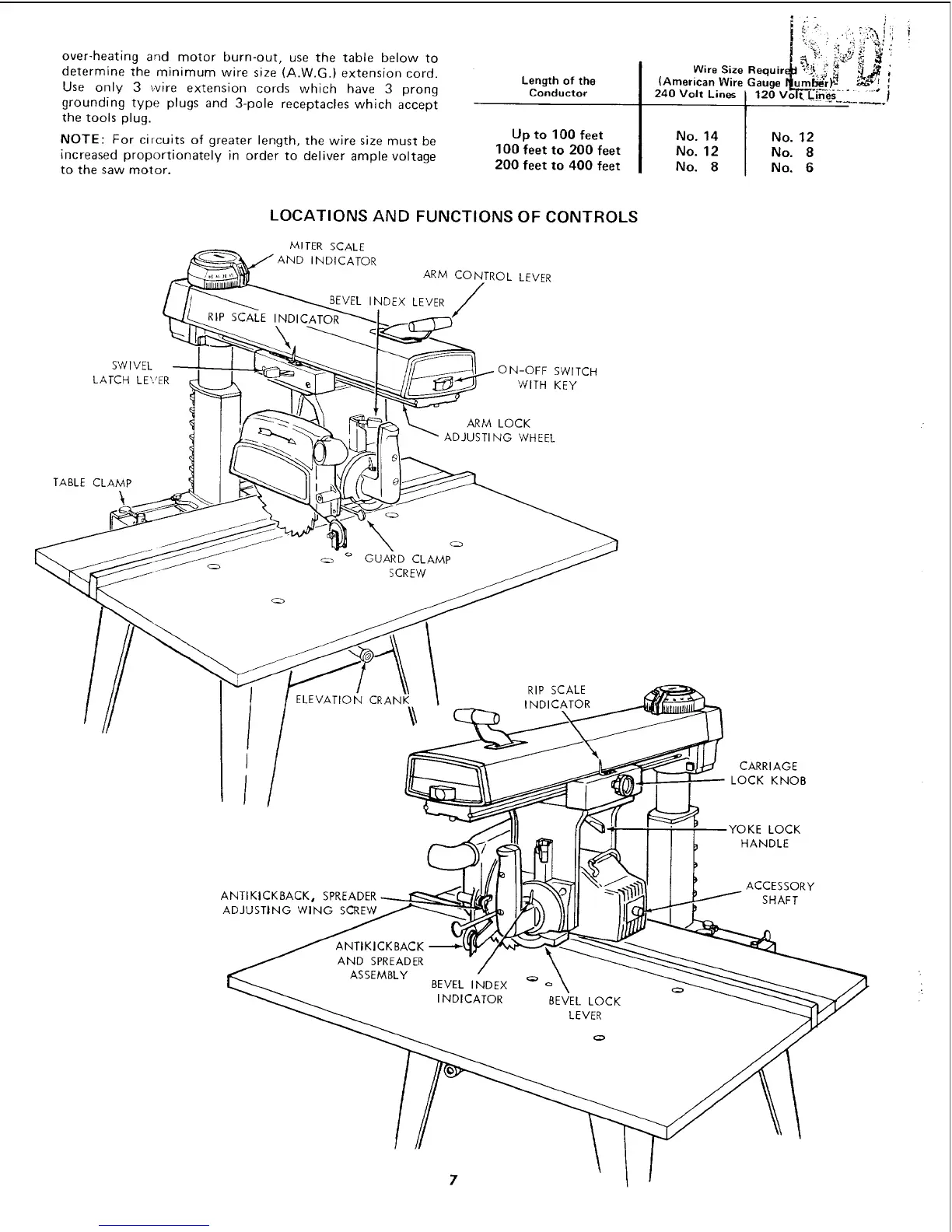

LOCATIONS AND FUNCTIONS OF CONTROLS
MITER SCALE
AND INDICATOR
ARM CONTROL LEVER
BEVEL INDEX LEVER
RIP SCALE INDICATOR
SW I VEL
LATCH LEVER
ON-OFF SWITCH
WITH KEY
ARM LOCK
ADJUSTING WHEEL
TABLE CLAMP
C2_
o
GUARD CLAMP
SCREW
ELEVATION CRANK /
\\
RIP SCALE
INDICATOR
CARRIAGE
LOCK KNOB
LOCK
HANDLE
ANT|KICKBACKo
ADJUSTING WING sCREW
ANTIKICKBACK
AND SPREADER
ASSEMBLY
BEVEL INDEX
I NDICATOR
BEVEL LOCK
LEVER
ACCESSORY
SHAFT
7
