D-Link DGS-1100-18 User Manual

D-Link DGS-1100 Series Switch User Manual
DGS-1100-18
16-Port 10/100/1000Mpbs + 2 Port SFP 1000 Mbps Switch

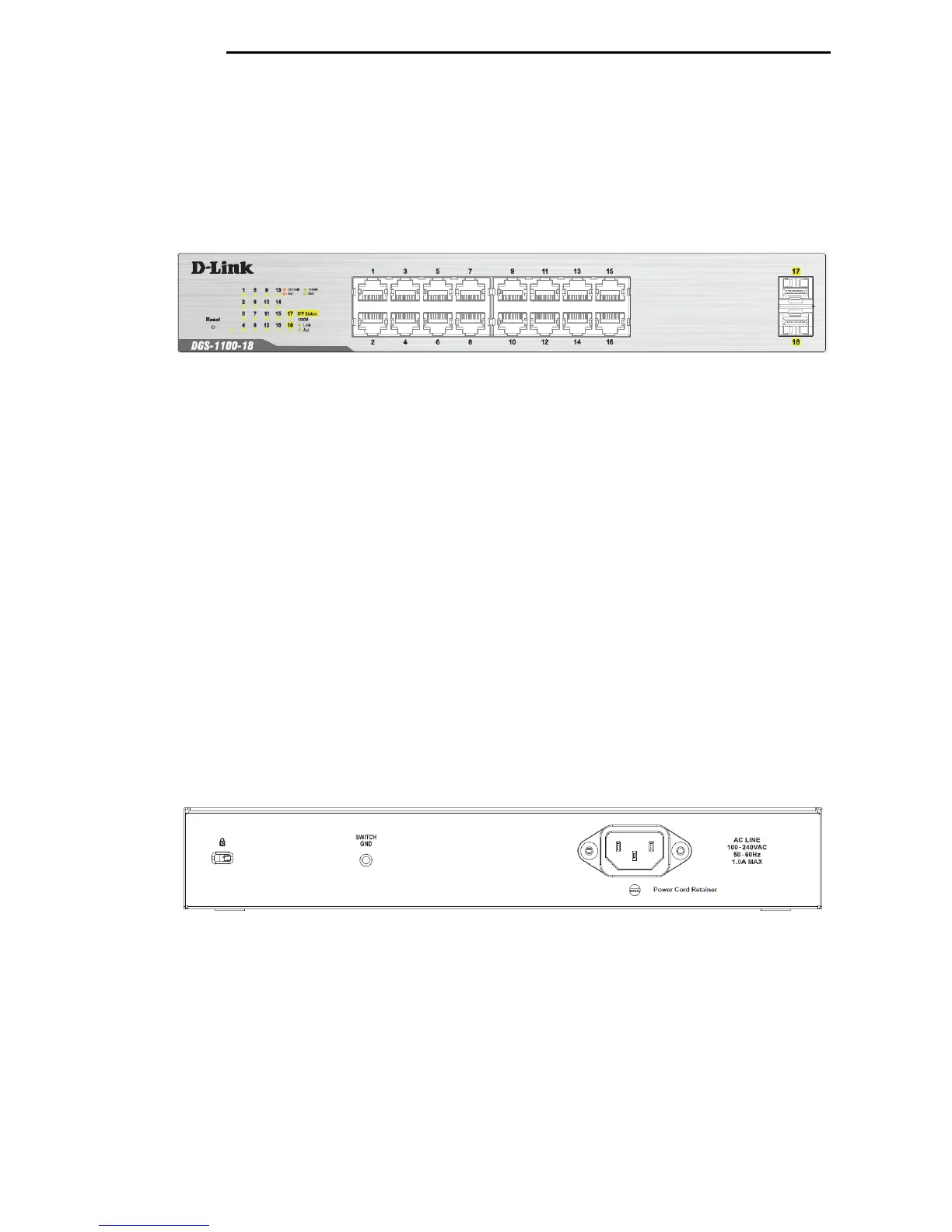

Front Panel
Figure 2-3
-
DGS-1100-18 Front Panel
Power LED: The Power LED lights up when the Switch is connected to a power source.
Link/Act/Speed LED (Ports 1-16):
Solid Green: When there is a secure 1000Mbps connection at the port.
Blinking Green or Amber: Indicates that the Switch is either sending or receiving data to the port.
Solid Amber: Indicates that the port is running at 10/100Mbps.
Light off: No link.
Link/Act/Speed LED (Ports 17-18):
Solid Green: There is a secure 1000Mbps connection at the port.
Blinking Green: There is reception or transmission occurring at the port.
Light off: No link.
Reset: By pressing the Reset button until the power LED turns amber, the Switch will change back
to the default configuration and all changes will be lost.
Rear Panel
Figure 2-4 – DGS-1100-18 Rear Panel
Power: The power port is where to connect the AC power cord.
4
4

D-Link DGS-1100-18 Specifications

General

Brand	D-Link
Model	DGS-1100-18
Category	Switch
Language	English
