D-Link DGS-1100 Series Switch User Manual
Web User Interface (Web UI)
By clicking the Exit button in the Smart Wizard, you will enter the Web-based Management interface.
Areas of the User Interface
The figure below shows the user interface. Three distinct areas that divide the user interface, as
described in the table.

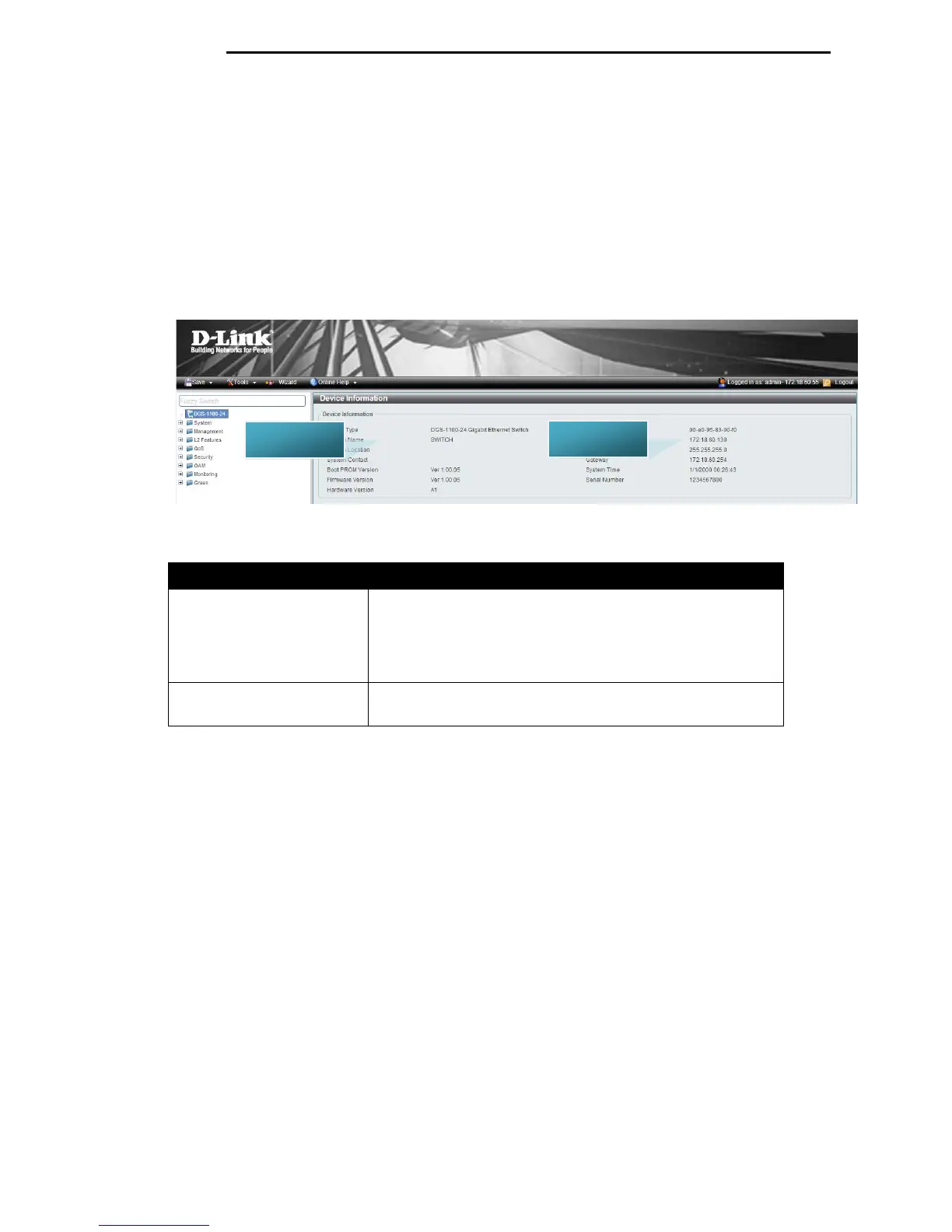

Figure 4-7 Main Web UI window
Area Number Description
AREA 1
In this area, a folder tree layout is displayed of functions that
can be configured using the Web UI. Open folders and click
the hyperlinked menu buttons to access each individual page
for configuration. The DGS-1100-24 link is the default page
that will display basic monitoring settings for this switch.
AREA 2
In this area, the Switch’s configuration page can be found,
based on the selection made in Area 1.
