D-Link DGS-1100 Series Switch User Manual
10. OAM
Cable Diagnostics
Cable Diagnostics
The cable diagnostics feature is designed primarily for administrators or customer service
representatives to verify and test copper cables; it can rapidly determine the quality of the cables and
the types of error.
To view the following window, click OAM > Cable Diagnostics, as shown below:

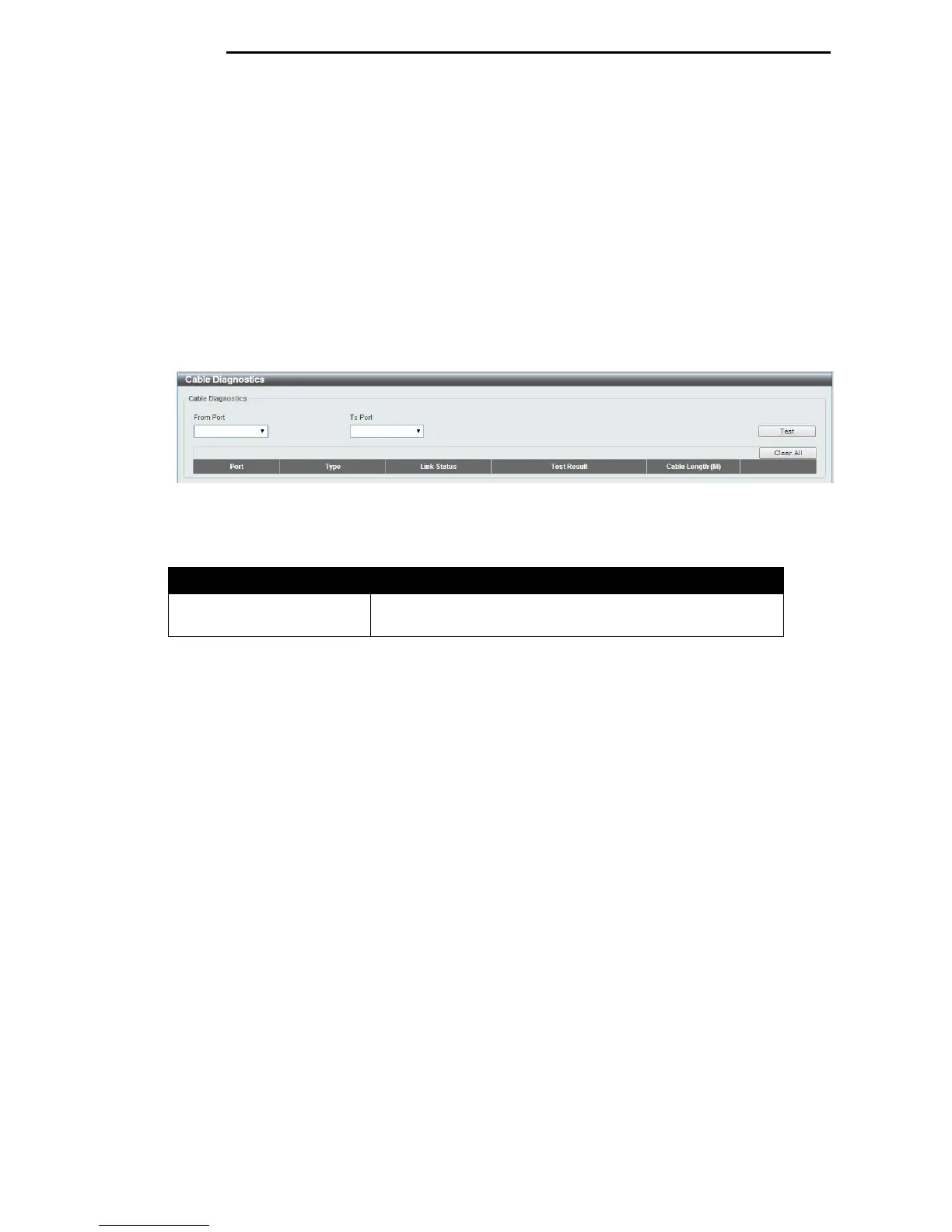

Figure 10-1 Cable Diagnostics window
The fields that can be configured are described below:
Parameter Description
From Port / To Port
Select the appropriate port range used for the configuration
here.
Click the Test button to test the specific port.
Click the Clear button to clear all the information for the specific port.
Click the Clear All button to clear all the information in this table.
Note: The Cable Diagnostics feature is only supported on the copper ports on all DGS-1100 Series
switches.
